9

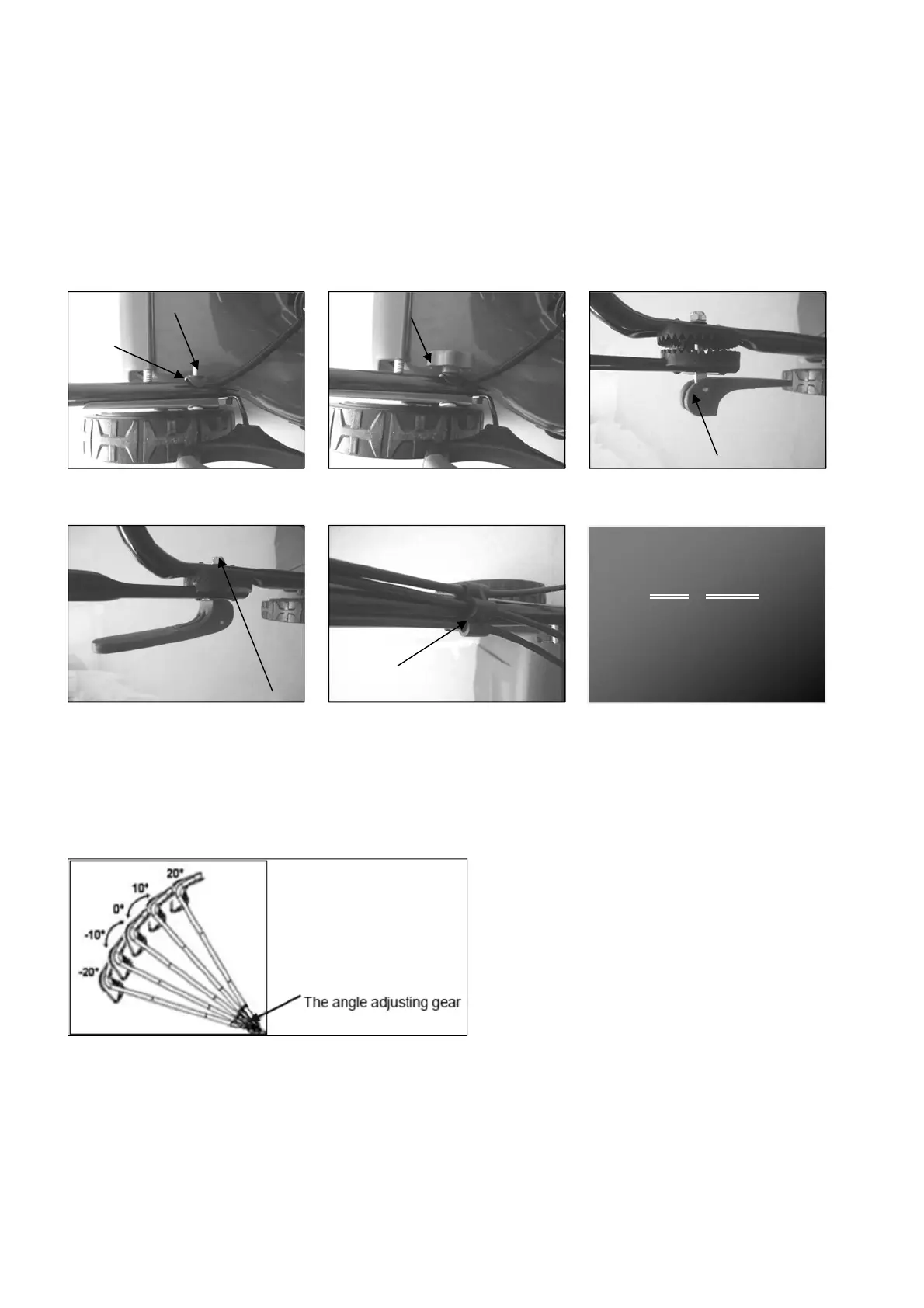

5. ASSEMBLY
5.1 FOLDABLE HANDLE
1. Fix the lower handlebars into the unit body with bolts, washers and locking knobs (fig. 9 & 10).
2. Open the two quick release skewers to unfold the upper handlebar (fig. 11).
3. Bring the the upper handlebar in the operating position. Close the two quick release skewers (fig. 9 & 10).
4. Adjust the tension by turning the lock nut with a wrench (fig. 12).
5. Attach the cable clamp at the shown position with the bowden cables underneath (fig. 13).
Figure 9 Figure 10 Figure 11
Figure 12 Figure 13
5.2 ADJUST HANDLE TO BODY HEIGHT
1. Open the two quick release skewers to unfold the upper handlebar .
2. Rotate the upper handle centered in the angle adjusting to an ergonomic height.
3. Push the locking lever closed to connect the lower handle and the upper handle.
Figure 14
5.3 MOUNTING AND DISMOUNTING THE GRASS CATCHER
1. To fit: Raise the rear cover and hitch the grass catcher to the rear of mower (fig.13-18).
2. To remove: Lift the rear cover. Lift up the grass catcher.
Do not start the
engine before you
fill oil in!
bolt
washer
locking knob
locking lever
locking lever
cable clamp
