6. “3 IN 1”
Your lawn mower is equipped with accessories to be retrofitted based on the application purpose:
1. normal function rear discharge into grass catching bag #5
2. mulching mower mulching plug #22
3. side-discharge side discharge wedge #19
What is mulching?
When mulching, the grass is simultaneously cut and finely chopped and returned to the grass strip as natural
fertilizer.
Hints for mulch-mowing
- Cut-back by max. 2 cm (e.g. from 6 cm to 4 cm grass height).
- Use a sharp cutting knife.
- Do not mow wet grass.
- Regularly clean mulching wedge, housing inner side and mowing blade.
6.1 mulching mower
WARNING: Operate only with a stopped motor.
1. Lift the rear cover and remove the grass catcher #5.
2. Push the mulching wedge #22 into the deck. Lock the mulching wedge with the button into the opening on
the deck (fig. 24, 25).
3. Lower the rear cover again (fig. 26).

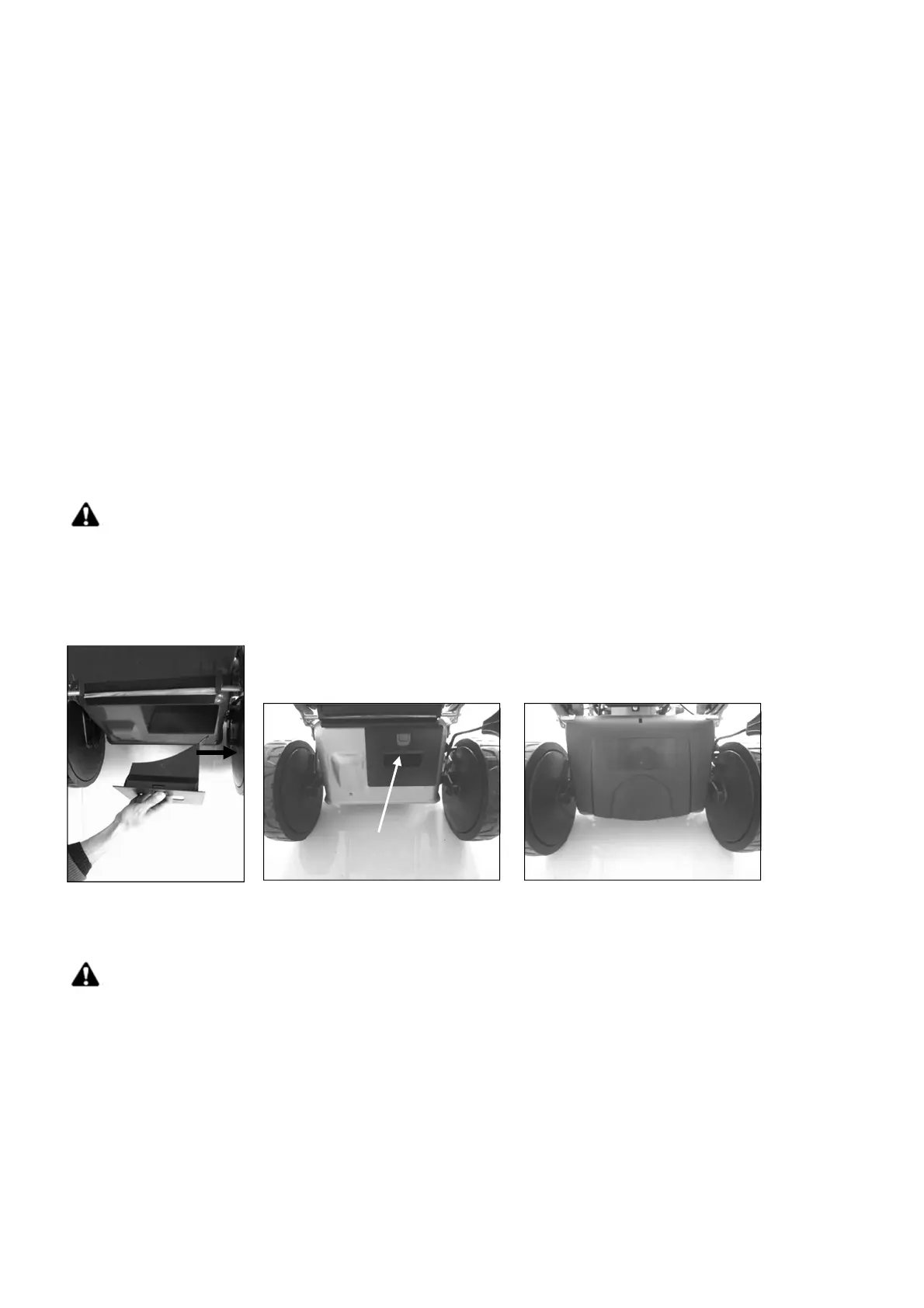

Figure 24 Figure 25 Figure 26
6.2 side discharge mowing
WARNING: Operate only with a stopped motor.
1. Lift the rear cover and remove the grass catcher #5 (see 6.1).
2. Install the mulching wedge #22.
3. Unlock the lid #20 (fig. 27).
4. Lift the lid #20 (fig. 28).
5. Mount the side discharge channel #19 on the support pin of the sideward flap (fig. 29).
6. Lower the flap - the flap lies on the side discharge channel (fig. 30)
locking button
