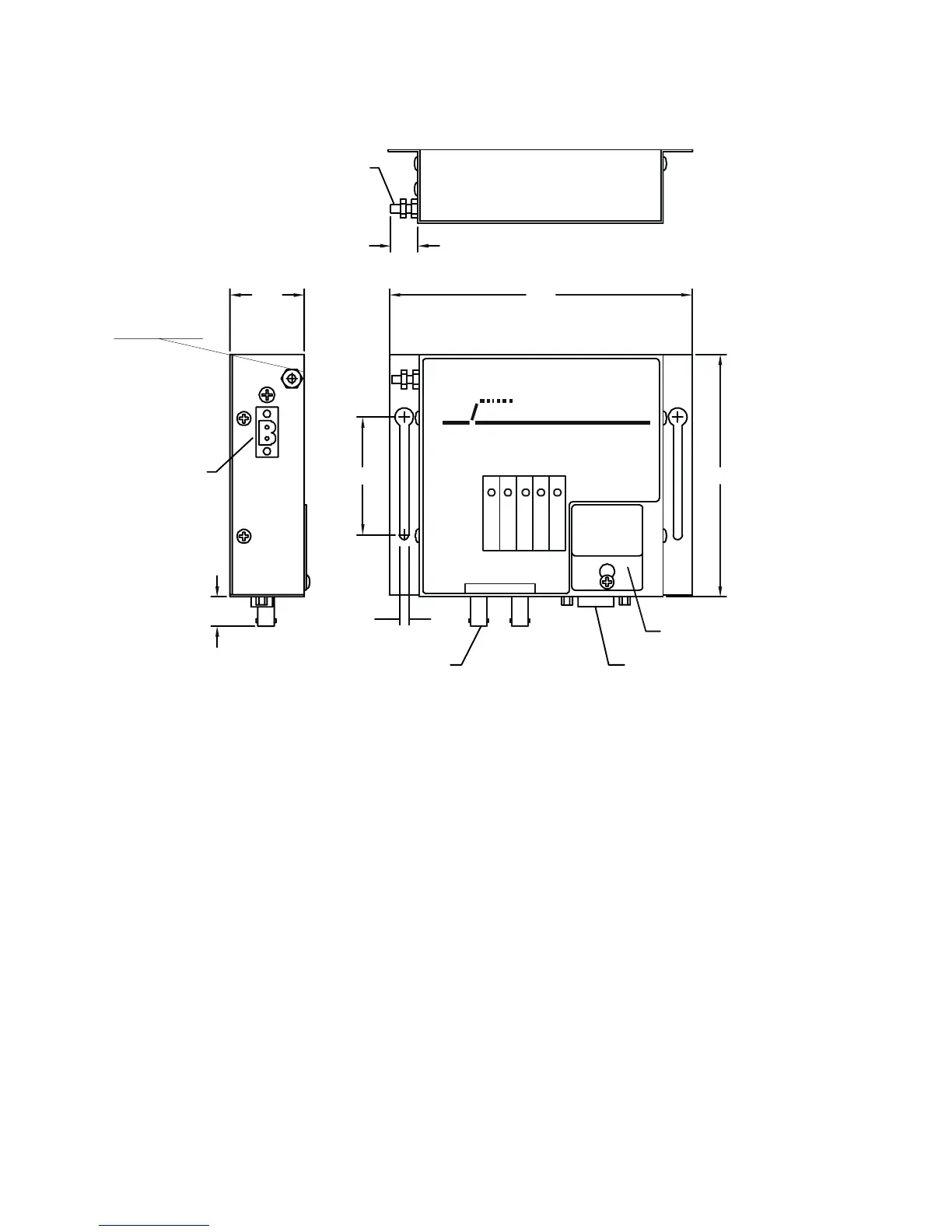

Mechanical Dimensions of the 5844HRT and 5844SHRT
5.14
2.00 4.12
PWR
RO
E
O
R
T
E
T
TR
DYMEC
MODEL 5844 LINK/REPEATER
RS232
SWITCH
ACCESS
MADE IN U.S.A.
.17
REMOVABLE ACCESS PLATE
9 PIN "D" CONNECTOR WITH
# 4-40 STANDOFF HARDWARE
TYPE "ST"
F.O. CONNECTOR
.46
#6-32 THREAD
SST
.50
90-250 Vdc/Vac -H
24-48 Vdc -L
1.25
Ground Stud
