Garmin Vector 2S - Installing the Right Pedal; Installing the Shoe Cleats

4
E
N
in the forward position, the pedal pod
should be pointing downward.
7 Firmly plug the cable into the spindle.
8 Insert the screw ➎ into the pedal
pod, and use the 2.5 mm hex key to
tighten the screw.
9 Rotate the crank arm to check for
clearance.
The pedal pod should not interfere
with any part of the bike.
Installing the Right Pedal
1 Apply a thin layer of grease on the
pedal spindle threads.
2 Insert the spindle into the crank arm.
3 Hand tighten the spindle.
4 Use the pedal wrench to tighten the
spindle.
NOTE: Garmin recommends torque
of 25 to 30 lbf-ft. (34 to 40 N-m).
Installing the Shoe Cleats
NOTE: The left and right cleats are the
same.
1 Apply a thin layer of grease on the
cleat bolt threads.

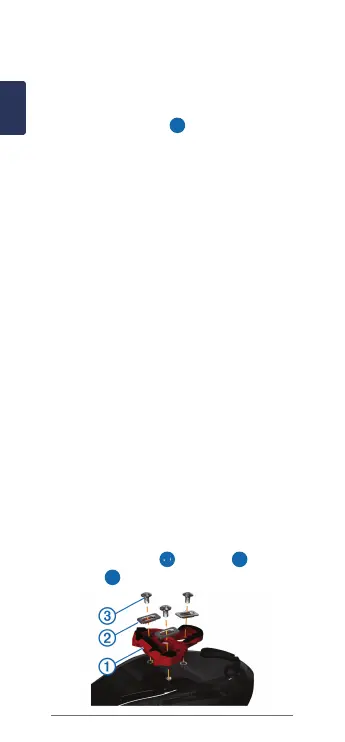

2 Align the cleat ➊, washers ➋, and
bolts ➌.
