Burner Operation & Ignition System Check
1. Open the Lid of the barbecue before attempting to
light the burner.
2. Turn the control knobs clockwise to “OFF” position.
3. Connect the regulator to the gas bottle. Turn the gas
supply “ON” at the cylinder. Check with the use of
soapy water for any gas leakage between the bottle
and the regulator.
4. Push down a control knob and keep pressing whilst
turning anti-clockwise to the “HIGH” position (a
clicking sound is heard). Continue to hold the control
knob for 10 seconds (This is to ensure the Flame
Failure Device to be engaged). Release then check
the ame stays on.
5. If the burner still does not light, turn the control
knob to ‘OFF’ wait 5 minutes and repeat the lighting
procedure.
6. Adjust the heat by turning the knob to the High/Low
position.
7. To turn the barbecue ‘OFF’, turn the cylinder valve to
the ‘OFF’ position and then turn the control knob on
the appliance clockwise to the ‘OFF’ position.
Problem Possible Reason Solution
Burner will not ignite
Valve on cylinder is closed Open valve on cylinder
Control knob is off Turn knob to high when lighting
Ignition system not working Check battery - The control knob should have a
clicking sound when pressed
Burner has gone out Check that the gas bottle is not empty
Igniter is faulty Use a long barbecue match
Flame not staying on
once control knob is
released
Control knob not held down long
enough for Flame Failure Device to
engage
Repeat the lighting procedure and hold control
knob down for 15 seconds
Nominal Hourly Gas Consumption
Model No. Gas Type Number of Burners
Injector Size
Side Burner
Total Gas
Consumption
MJ/h
Gas Pressure kPa
BQ2027
BQ2027BL
ULPG
1 Ø 1.32mm
23 MJ/h 2.75 kPa
MJ/h Each 23 MJ/h
BQ2027NG
BQ2027BLNG
Natural
Gas
1 Ø 2.36mm
21 MJ/h 1.0 kPa
MJ/h Each 21 MJ/h
S.G.A. Pty Ltd. 33-35 Lionel Road, Mt. Waverley,
Victoria 3149, Australia.
FOR CORRECT OPERATION REFER TO INSTRUCTIONS PROVIDED.
A.G.A
Approval No.
AGA 9058 G
AGA 9117 G

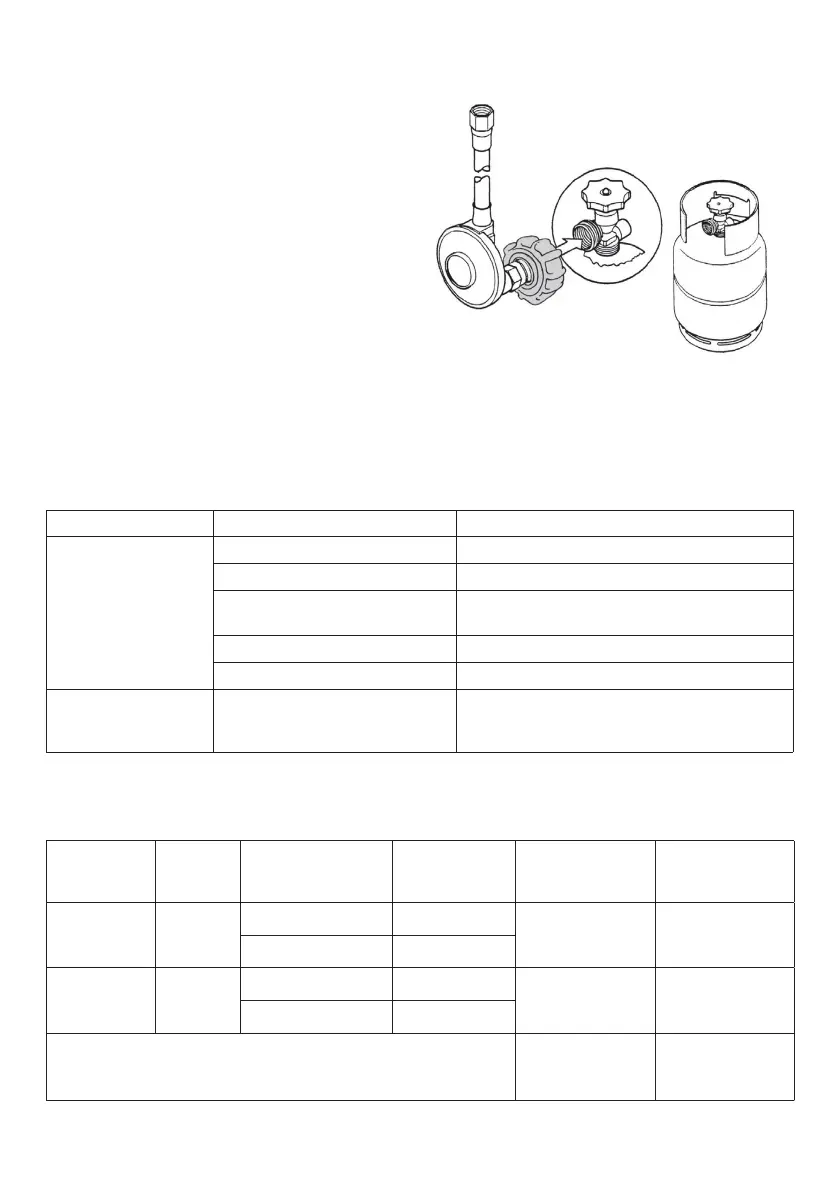

LCC27 Regulator
& Hose
LCC27 Gas
Cylinder
(Cylinder
Not Included)
LCC27 Cylinder
Connection Device
