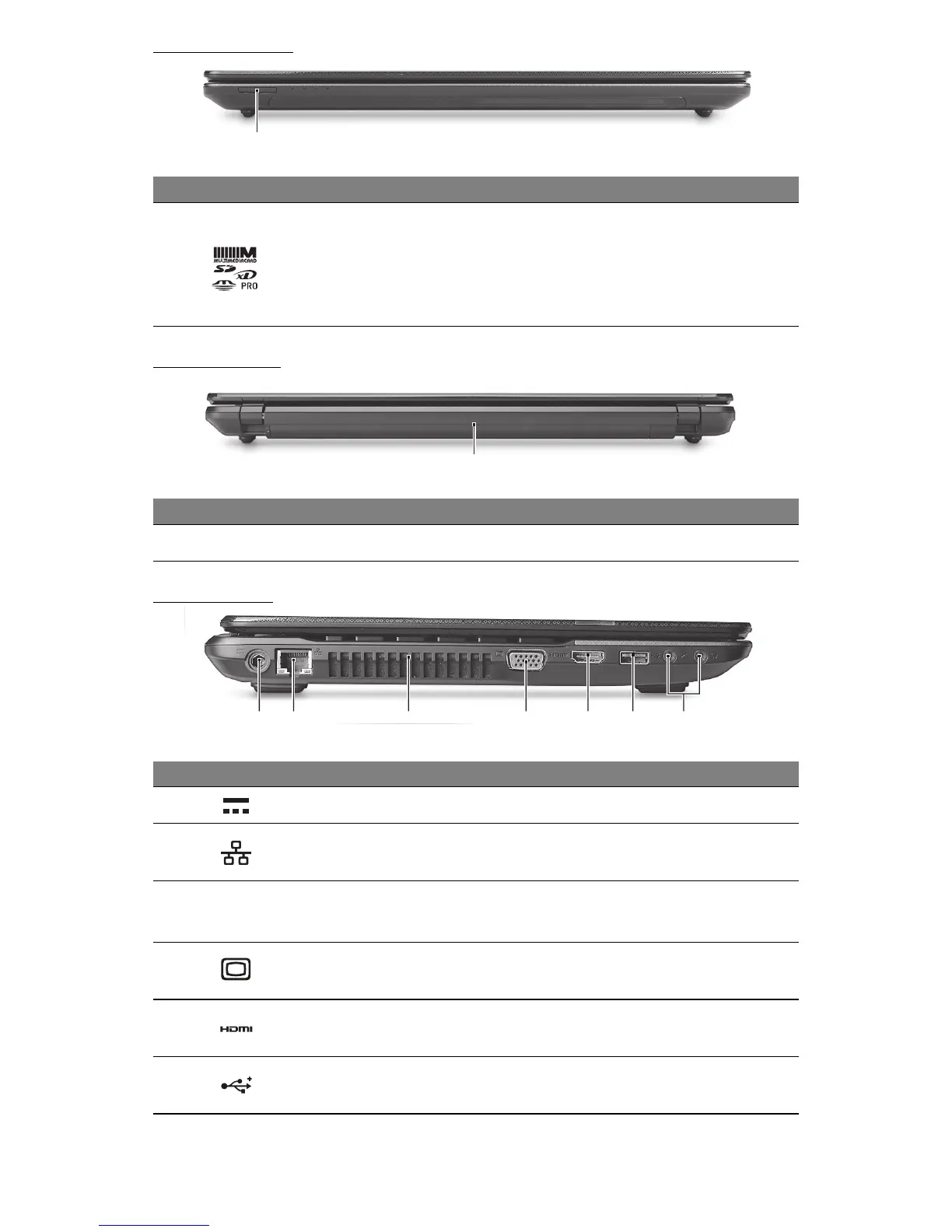

FRONT VIEW
1
REAR VIEW
1
LEFT VIEW
2134567
# Icon Item Description
1 Multi-in-1 card reader
Accepts Secure Digital (SD), MultiMediaCard
(MMC), Memory Stick PRO (MS PRO), xD-
Picture Card (xD).
- Push to remove/install the card. Only one
card can operate at any given time.
# Icon Item Description
1 Battery bay Houses the computer's battery pack.
# Icon Item Description
1 DC-in jack Connects to your computer’s AC adapter.
2 Ethernet (RJ-45) port
Connects to an Ethernet 10/100/1000-based
network.
3
Ventilation and
cooling fan
Allows the computer to stay cool.
- Do not cover or obstruct the openings.
4
External display
(VGA) port
Connects to a display device (e.g., external
monitor, LCD projector).
5 HDMI port
Supports high-definition digital video
connections.
6 USB port
Connect to USB devices (e.g., USB mouse,
USB camera).
To Next Page
