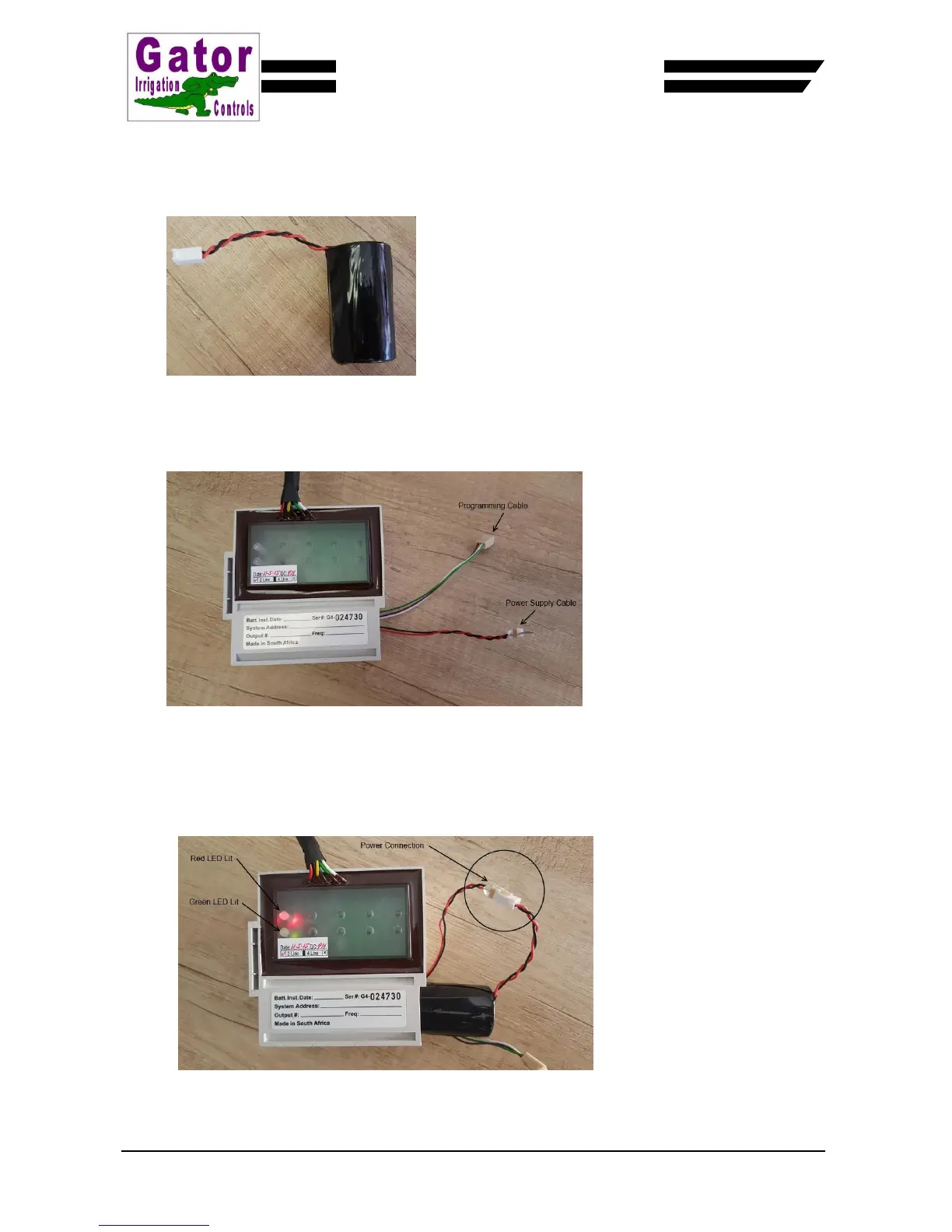

APPLYING POWER TO THE RADIO RECEIVER MODULE
The Gator G4.0 radio receiver module makes use of a 3.6VDC 19A/Hr Lithium-thionyl Chloride battery to
power the unit. This battery pack is equipped with a wire loom and a connector socket as shown in Figure
12 below
Figure 12
The G4.0 radio receiver module has two wire looms located in the battery compartment of the module as
shown in Figure 13 below. The Green, White and Purple wire loom is used for programming the receiver
module using the hand held programmer. The red and black wire look fitted with the connector plug is the
module power point that is to be connected to the battery when power is to be applied.
Figure 13
Open the battery housing on the receiver module by removing the rubber plug from the receiver
modules battery compartment (Do not use any sharp instruments to achieve this).
Referring to Figure 13 above, extract the battery, battery cable and the programming cable out of the
receiver modules battery compartment.
Referring to Figure 14 below, plug the battery connector socket into the radio receiver modules power
connector plug (red and black wires).
Figure 14
You will observe that both the Red and the Green LED’s will illuminate together.
