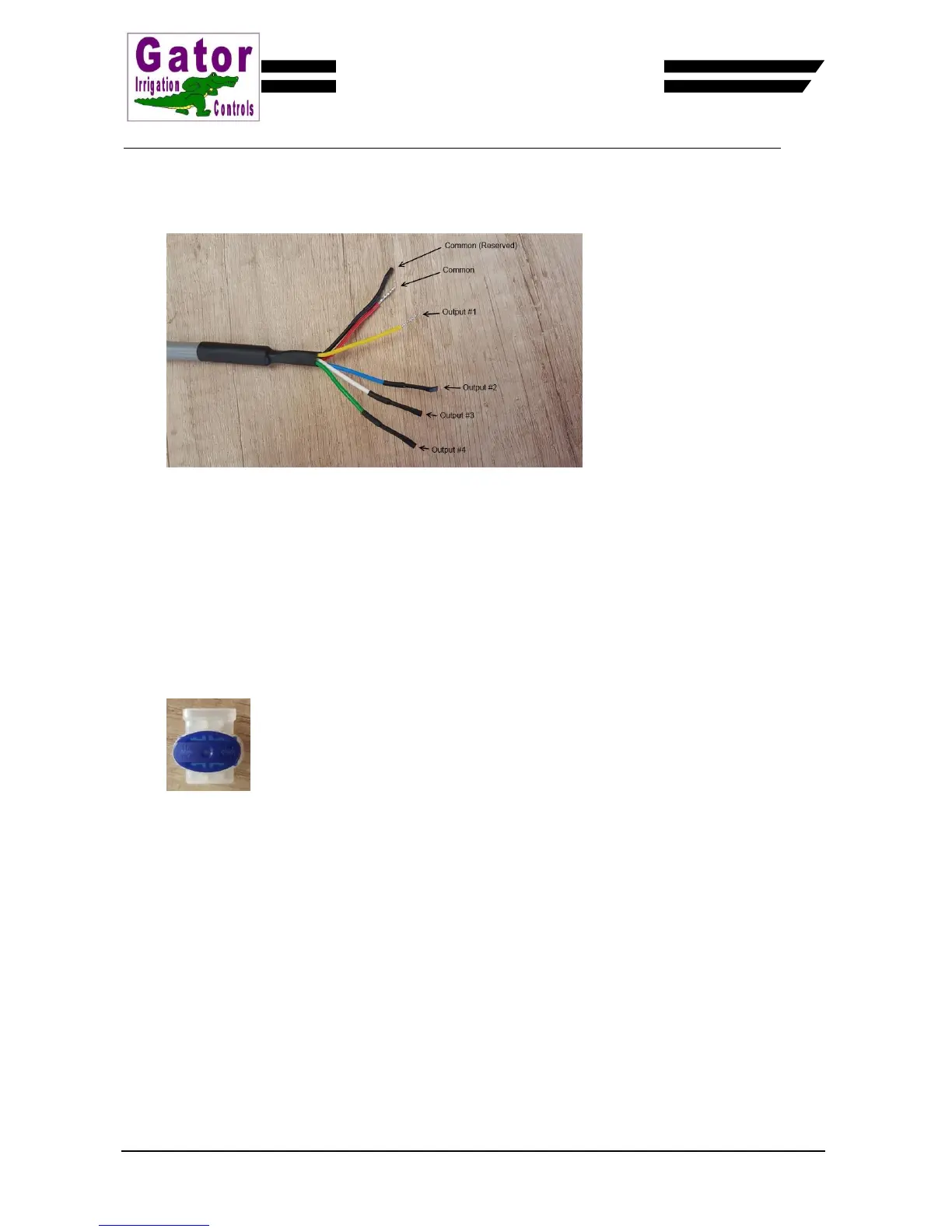

Connecting the output devices to the G4.0 receiver module equipped with the output wire loom format
This version of the G4 radio receiver module is equipped with a short piece of 6 core cable which is
attached on one end to the radio receiver module using a waterproof joint. The other end of the cable has
6 soldered tinted wire ends exposed with ends, ready for attaching to the output devices as shown in
Figure 9 below.
Figure 10
The 6 wires are allocated as follows -
Red – Common
Black - Common Reserved (Reserved for future use. Remove the temporary heat shrink if you will use this wire)
Yellow – Output #1
Blue – Output #2 (Reserved for future use. Remove the temporary heat shrink if you will use this wire)
White – Output #3 (Reserved for future use. Remove the temporary heat shrink if you will use this wire)
Green – Output #4 (Reserved for future use. Remove the temporary heat shrink if you will use this wire)
It is recommended to make a waterproof connection between these wires and the output device wires.
This can be achieved by terminating the connections in an additional enclosure or using a waterproof gel
type connector such as the sample shown in Figure 11 below.
Figure 11
PROGRAMMING THE RADIO RECEIVER MODULE
The G4 Gator radio receiver module is programmed using a Hand Held Programmer. Information relating
to this process is available in a separate document titled “G4 RX Module Programming Guide”. If you do
not have this document on record, feel free to contact Irri-Gator Products and we will forward a copy.
