The two black terminals are the same.

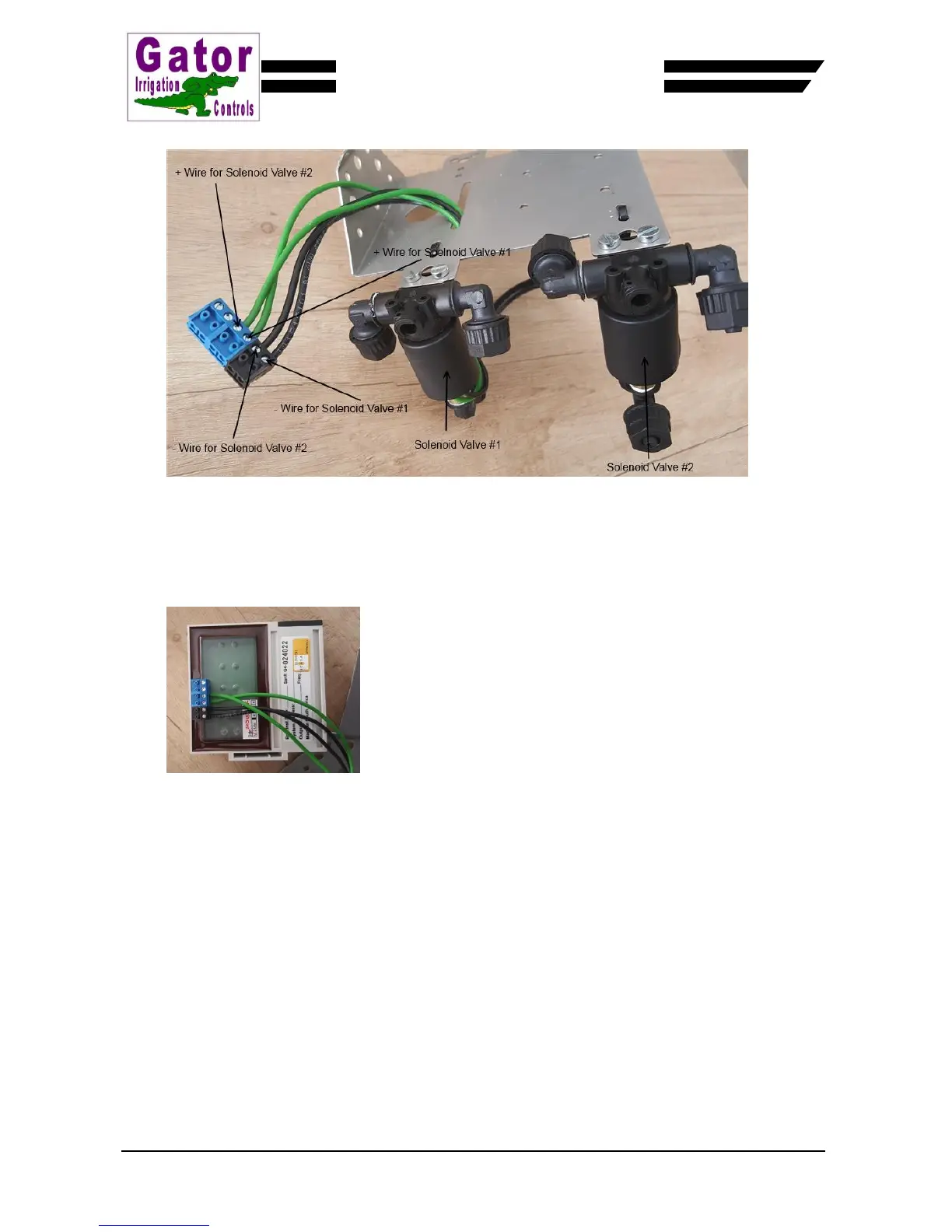

Figure 8
Wiring the 3 and 4 output would entail connecting the green wire for the 3
rd
output device to terminal 5
(blue block) and the green wire for the 4
th
output device to terminal 6 (blue block). The black wires from
both output devices would connect to either terminal 1 or 2 (the black blocks).
Once the wiring of the output devices to the terminal connector has been completed the connector can be
plugged into the pins on the base of the radio receiver module as shown in Figure 9 below.
Figure 9
We recommend to remove this terminal connector from the radio receiver module once a year and to
clean the pins on the module as well as to thoroughly clean the plug. Apply a good quality anti rust
inhibitor spray such as silicone before reattaching the connector to the receiver module.
