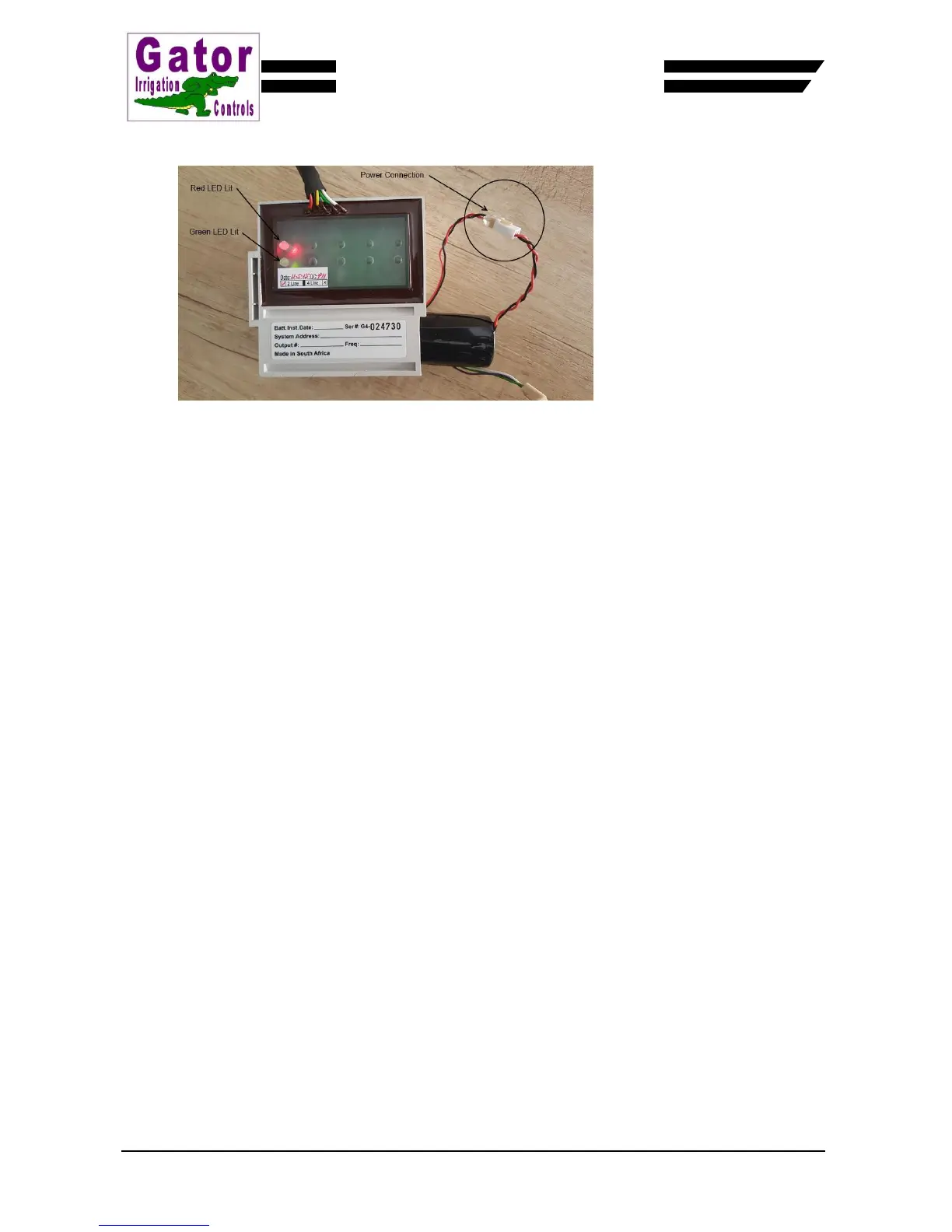

Referring to Figure 16 below, plug the battery connector socket into the radio receiver modules power
connector plug (red and black wires).
Figure 16
You will observe that both the Red and the Green LED’s will illuminate together.
When the green LED extinguishes, an audible click will be heard from each of the solenoids connected
to the receiver module as a reset of each output device takes place. Other output devices do not
necessarily omit this audible clicking noise during the resetting procedure.
The Red LED will remain on for approximately 5 minutes after the battery was reconnected.
While the Red LED is illuminated and should a radio signal applicable to this receiver module (ID being
the same as the transmitted signal), be received by the unit, the green LED will flash briefly.
If data that pertains to one or more of the outputs has been received by the module, the output/s will be
activated or deactivated dependant on the status requested. At this time the green LED will also flash
briefly.
The Red LED will extinguish after 2 to 3 minutes to conserve power consumption. No LED’s can be
observed after this time.
Gently insert the battery along with the wires and connectors into the radio receiver modules battery
compartment. Firmly secure the rubber plug into the receiver modules battery compartment making
sure that the “D” is facing upwards and that the plug is fully inserted.
