INSTALLING THE PROTECTION HOOD
The radio receiver protection hood provides additional protection to the radio receiver module against various
environmental conditions (bird and other animal defecation, temperature, moisture, sunlight, etc.). Follow the
procedures as described below to fit the hood to an existing receiver modules installation.
Remove the M5 securing screw from the hole in the top of the receiver modules stainless steel
mounting bracket.

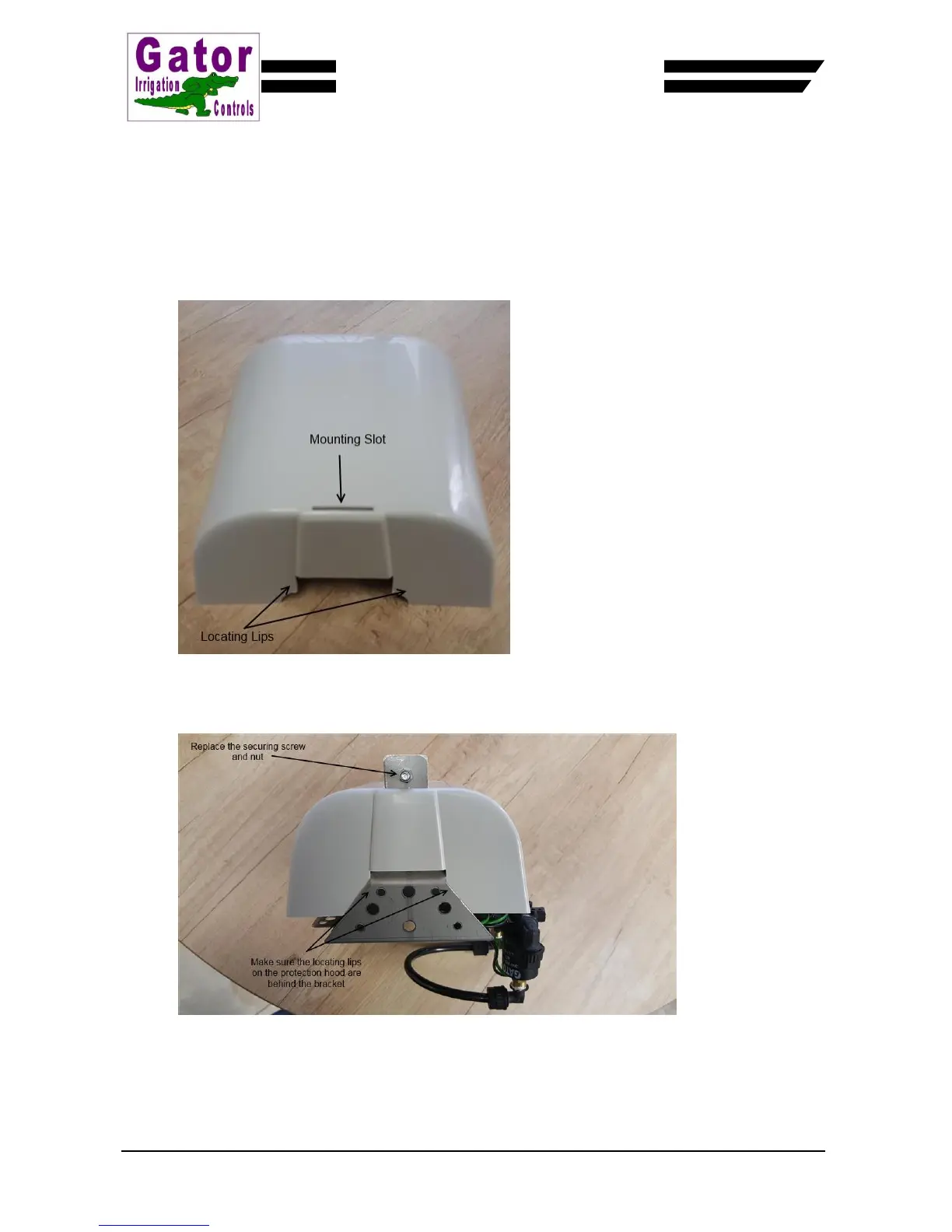

Install the protection hood by inserting the blade of the mounting bracket through the slot in the hood as
shown in Figure 17 below.
Figure 17
Push the hood down making sure that the locating lips are behind the stainless steel bracket as shown
in Figure 18 below. Do not force the hood down and make sure a gap is retained between the receiver
module and the hood.
Figure 18
