O3 x 8
W3 x 4 x 1
O3 x 8
將外部套環如圖的位置鎖上螺絲。(注意：外部套環的螺絲孔在上方)
將螺絲套入華司小心鎖入機身下方的定位點，最後將套環套入上方的四個孔內。
機身製作
機身製作
螺絲孔
套環

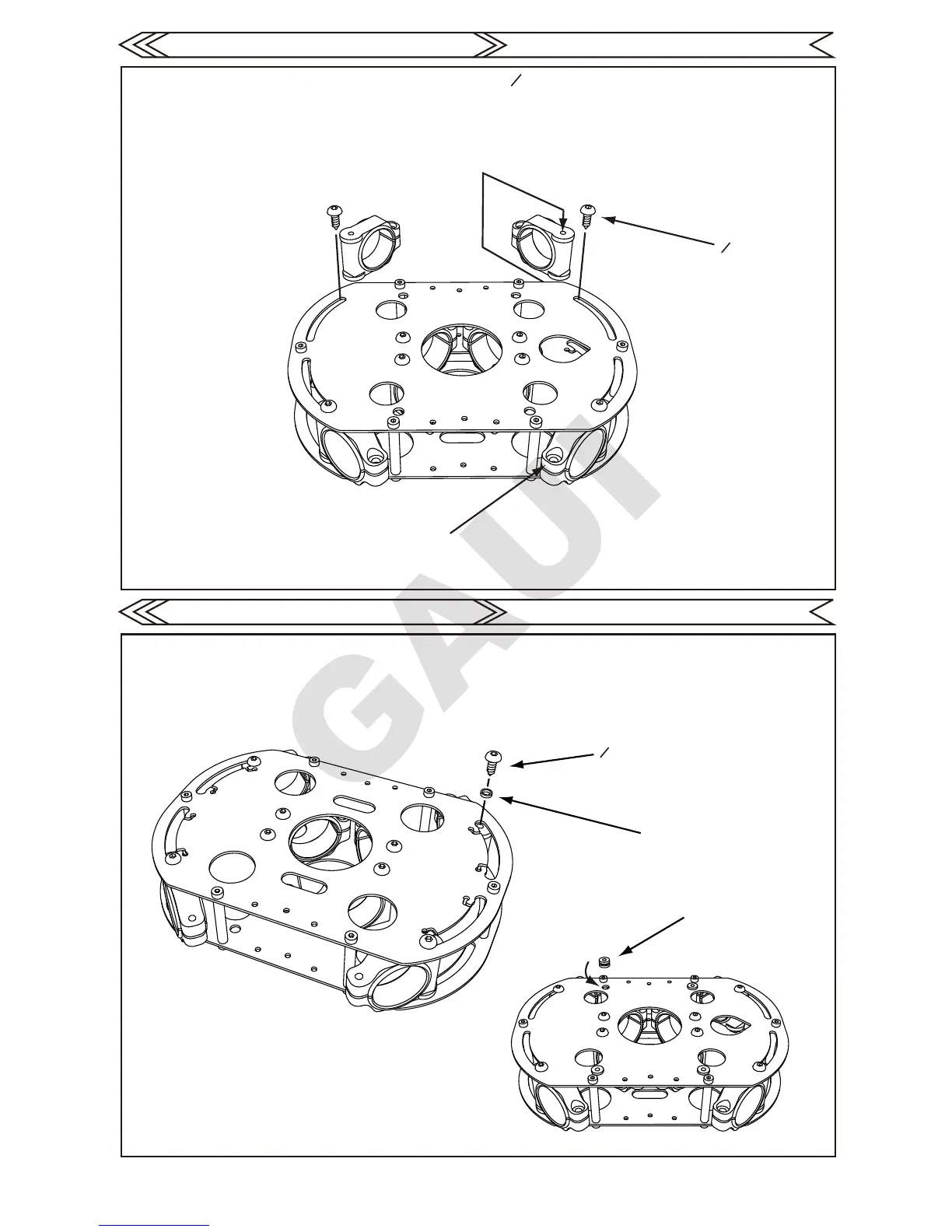

Main Frame Assembly
Lock in place the four Outside Boom Holder with (O3 x 8) screws (Attention: Outside boom
holder screw hole is on top side Frame)
Lock the screws (with washer) in the positions shown in drawing (bottom frame).
Main Frame Assembly
Damper
Threaded hole
To Next Page
