GE Security FireShield FS302 User Manual

Installation
2.10 FireShield Technical Reference Manual
Connecting an RPM module
The Reverse Polarity Module (RPM) is an interface between
FireShield and a reverse polarity receiver. It provides off-
premises signal transmission for systems that must comply
with NFPA requirements. When used as a reverse polarity
remote station transmitter, it can be connected to either a
single circuit (alarm or alarm and trouble) or up to three
circuits (alarm, supervisory, and trouble).
Note: For detailed information and wiring, refer to the RPM
installation sheet P/N 3100430.

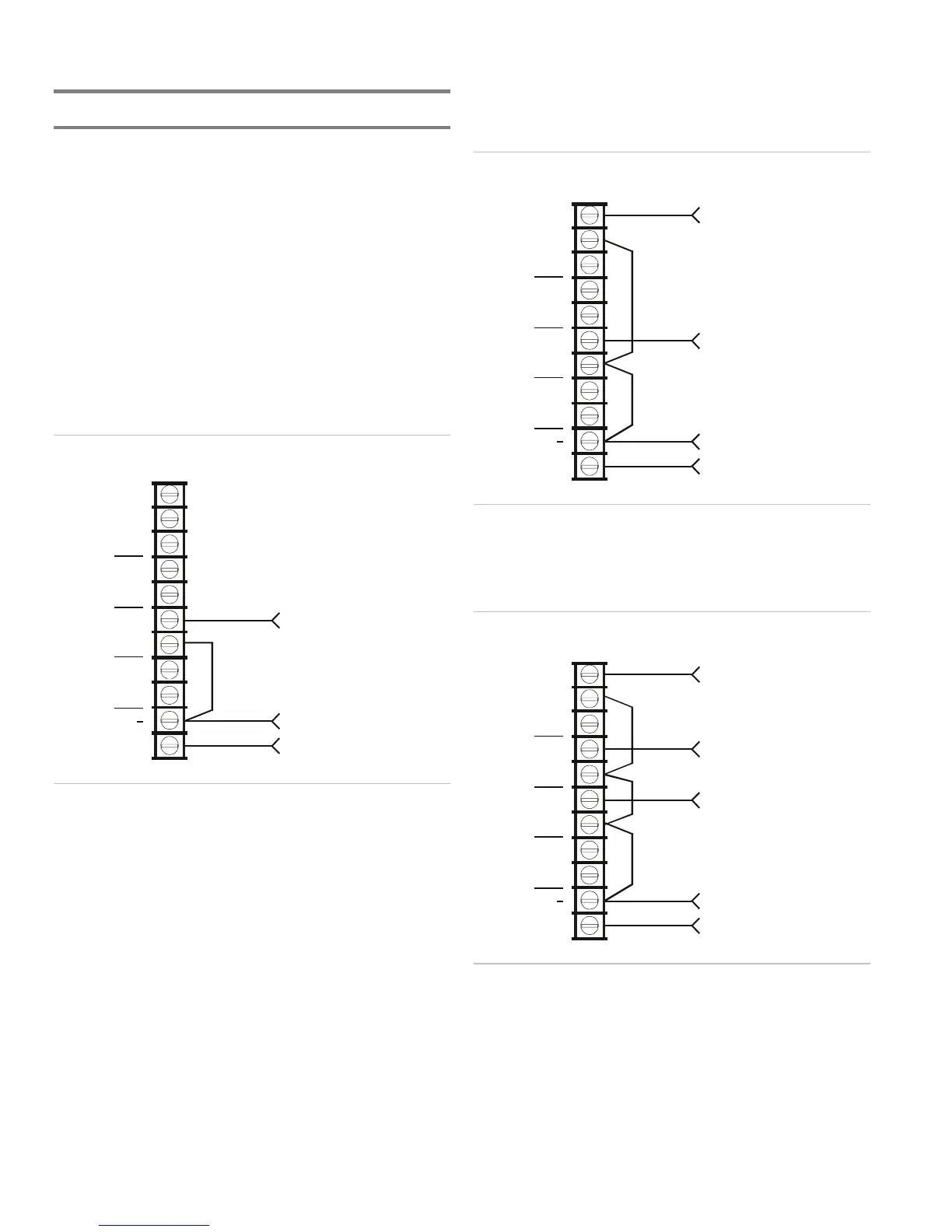

Below are application diagrams for using the RPM.
Note: The RPM must be mounted in an MFC-A enclosure
immediately adjacent to the panel and in conduit.
Alarm transmitted only
TRBL
C
NC
SUP
NO
ALM
C-
C+
24VOUT
FireShield
TB3
+
NO
NO
From ALRM on RPM
(brown wire)
From COM on RPM
(black wire)
From +24 on RPM
(red wire)
Alarm and trouble transmitted on a single circuit
Note:
JP1 on the RPM must be OUT.
TRBL
C
NC
SUP
NO
ALM
C-
C+
24VOUT
FireShield
TB3
+
NO
NO
From ALRM on RPM
(brown wire)
From TRBL on RPM
(yellow wire)
From COM on RPM
(black wire)
From +24 on RPM
(red wire)
Alarm, supervisory, and trouble transmitted on separate
circuits
Note: JP1 on the RPM must be IN.
TRBL
C
NC
SUP
NO
ALM
C-
C+
24VOUT
FireShield
TB3
+
NO
NO
From ALRM on RPM
(brown wire)
From TRBL on RPM
(yellow wire)
From COM on RPM
(black wire)
From +24 on RPM
(red wire)
From SUPV on RPM
(orange wire)
