GE Security TS0870x User Manual

GE Infrastructure Security Pty Ltd 7

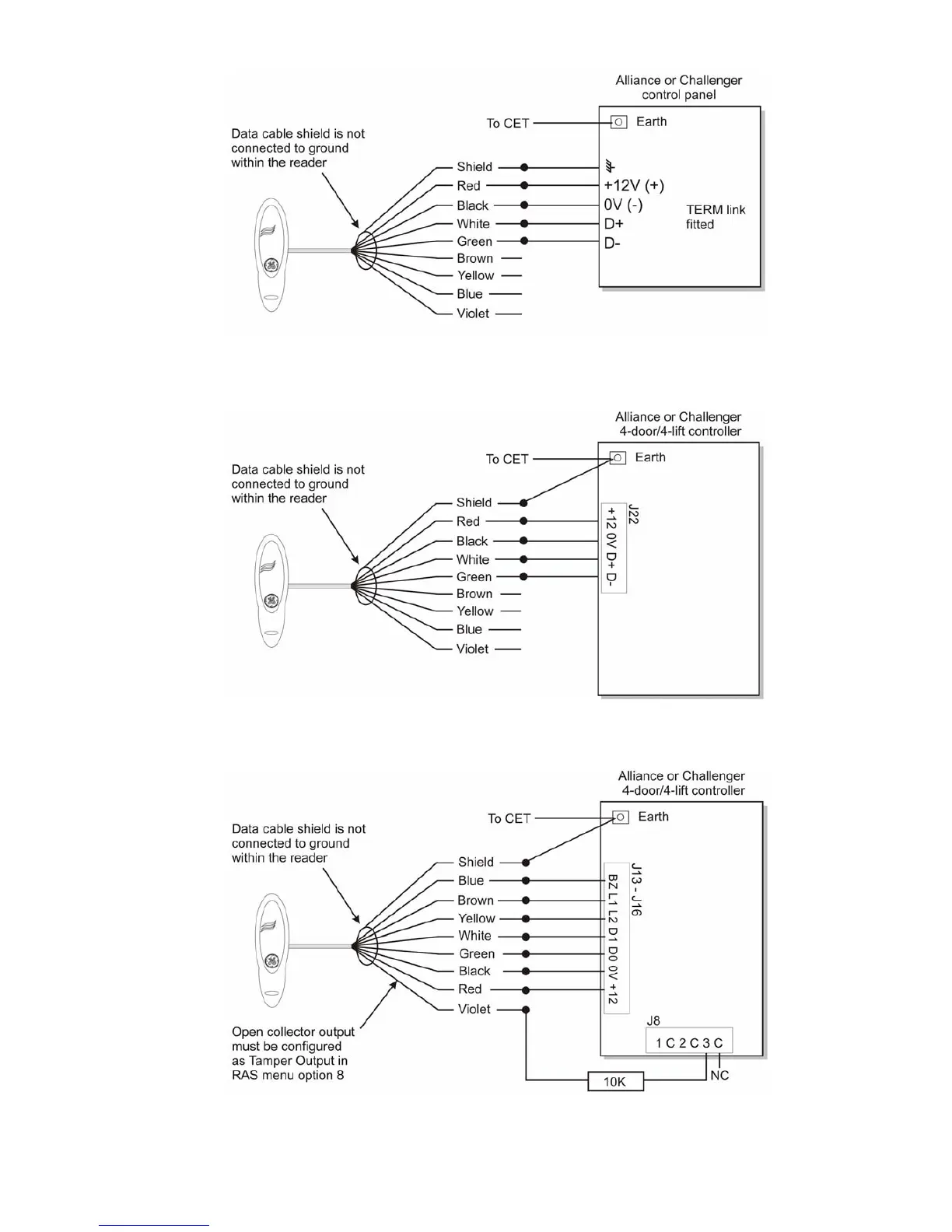

Figure 2: LAN power, data, and earthing connections to Alliance or Challenger panel from a single reader (a number of
readers would typically be connected to the control panel).
Figure 3: LAN connection to Intelligent 4-Door or 4-Lift Controller
Wiegand or magnetic stripe connection
Figure 4: ’Off-line’ mode connection to Wiegand or magnetic stripe interface (with optional tamper input).

GE Security TS0870x Specifications

General

Brand	GE Security
Model	TS0870x
Category	Card Reader
Language	English
