How To Maintain
Brush Roll Belt (for models with a brush roll)
The brush roll belt on th e carpet shampooer/ extractor drives
the brush to agitate, sweep, and comb the carpet nap. Check
the belt regularly to be sure it is in good condition. Replace
the belt if it is stretching, cracking or slipping. Cut away any
hair or thread wound around th e brush roll or the belt pulley
because the buildup could cause the belt to rotate unevenly.
1. Tip the carpet shampooer/ extractor back to place the
handle on the floor (See Figure 1).
2. Position yourself in front of the carpet shampooer/
extractor’s base an d remove the screw from the right
side of base ( Figure 2).
3. Lift off the belt cap.
4. Lift brush roll out and remove worn belt.
5. Squeeze the sides of new belt togeth er and place it
around the motor pulley. Squeezing the belt will aid in
placing th e belt on the pulley.
6. Place the pulley end of brush roll inside th e belt.
7. Align brush roll end caps with openings in base.
8. Push down on the brush roll to secure it (Figure 3) .
9. Rotate th e brush roll until the belt is in place.
10. Replace belt cap and secure with screw.
E. How to Replace the Carpet
Shampooer/Extractor’s Belt
NOTE: Turn off the power switch and unplug the electrical cord
to replace the brush roll belt.
NOTE: If the tanks contain liquid, remove both tanks before
placing the handle on the floor.

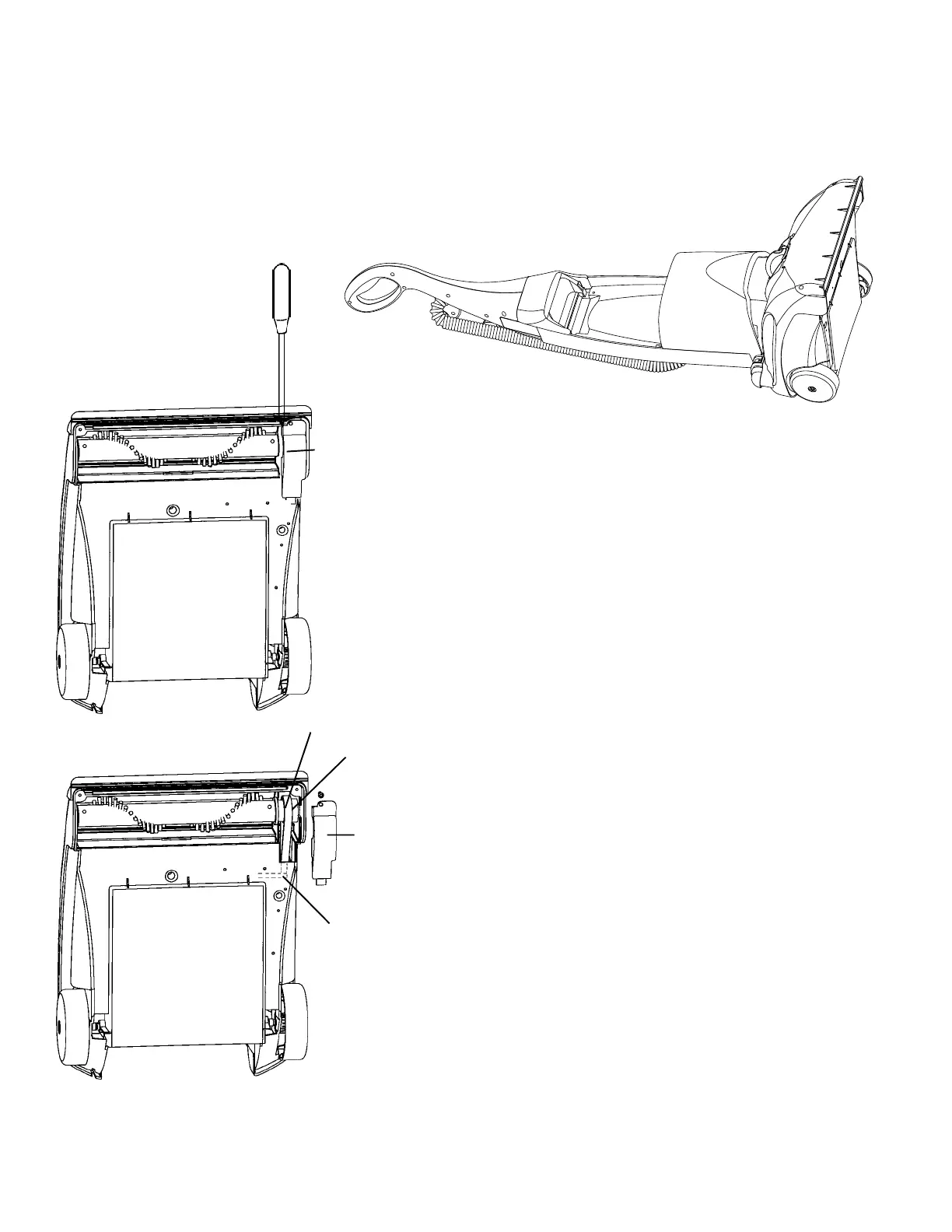

FIGURE 1
Motor
Pulley
Belt
Cap
Brush Roll
End Cap
Belt
Belt
Cap
FIGURE 2
FIGURE 3
* When reinstalling th e brush roll, ch eck the en d caps for correct alignment into the base of th e unit. Sometimes
the squares of th e end caps become off-cen ter. By holding on e end and turn ing th e other, realignment can
be corrected.
