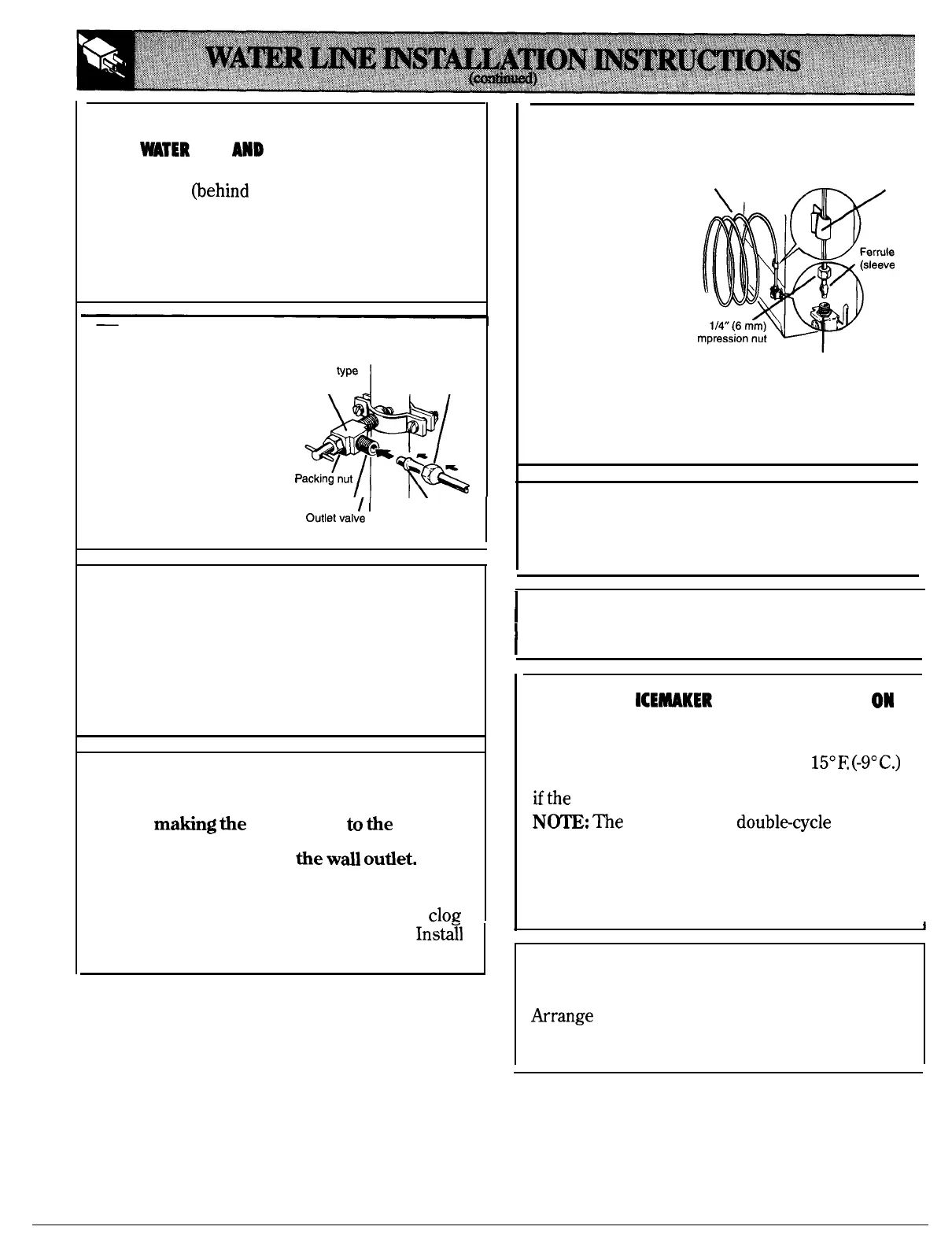

ROUTE THE COPPER TUBING BETWEEN THE
COLD
~TER
LINE
AND
THE REFRIGERATOR.
Route the tubing through a hole drilled in the
floor or wall
behind
the refrigerator or adjacent
base cabinet) as close to the wall as possible. Be
sure there is sufficient extra tubing (about 8 feet
[244 cm] coiled into 3 turns of about 10” [25 cm]
diameter) to allow the refrigerator to move out
from the wall after installation.
❑
CONNECT THE COPPER TUBING TO THE
SHUTOFF VALVE.
Saddle ~pe
Place the compression .
shutoff valve
1
Compression nut
/
nut and ferrule (sleeve)
onto the end of the
tubing and connect it to
the shutoff valve. Make
sure the tubing is fully
p
inserted into the valve.
I
Tighten the compression
~utl~tv,l~
I
\
Ferrule
nut securely.
(sleeve)
1
❑
TURN ON THE WATER AND FLUSH OUT
THE TUBING.
a. Turn the main water supply on and flush out
the tubing until the water is clear.
b.
Shut the water off at the water valve after
about one quart of water has been flushed
through the tubing.
❑
CONNECT THE COPPER TUBING TO
THE REFRIGERATOR
Before
mating
tie
connection
to
tie
refrigerator, be sure the refrigerator power
cord is not plugged into
the
wdl
outiet.
We recommend installing a water filter
(available at Service and Parts Centers) if your
water supply has sand or particles that could
C1OQ
a.
Remove the plastic flexible cap from the
water valve.
b. Place the
1/4” (6 mm)
Tubing
Copper tubing
compression nut
clamp
and ferrule
(sleeve) onto the
end of the tubing
as shown.
)
c. Insert the end
of the copper
tubing into the
water valve
co
connection as far
as possible. While holding
Refrigerator connection
the tubing, tighten the fitting.
d. Fasten the copper tubing into the clamp
provided to hold it in a vertical position. You may
need to pry open the clamp.
❑
TURN THE WATER OH AT THE
SHUTOFF VALVE.
Tighten any connections that leak.
I
I
❑
PLUG THE REFRIGERATOR mWERCORD
I
I
INTO A GROUNDED ELECTRICAL OUTLET.
❑
SET THE
ICEMKER
FEELER AM TO THE OH
(DOWN) POSITION.
The
icemaker will not begin to operate until it
reaches its operating temperature of
15°R
(-9°C.)
or below. It will then begin operation automatically
tithe
icemaker is in the ON (down) position.
N~:
me
icemaker may doublecycle when it
first starts, causing some water spillage from the
icemaker into the ice bucket. This is normal and
should not happen again. The first few batches of
cubes should be thrown away, so that remaining
I
impurities in the water line will be flushed out.
[
J
the screen of the refrigerator’s water valve.
Insb~l
it in the water line near the refrigerator.
❑
MOVE THE REFRIGERATOR BACK TO
THE WALL.
&range
the coil of copper tubing so that it does
not vibrate against the back of the refrigerator or
against the wall.
16
