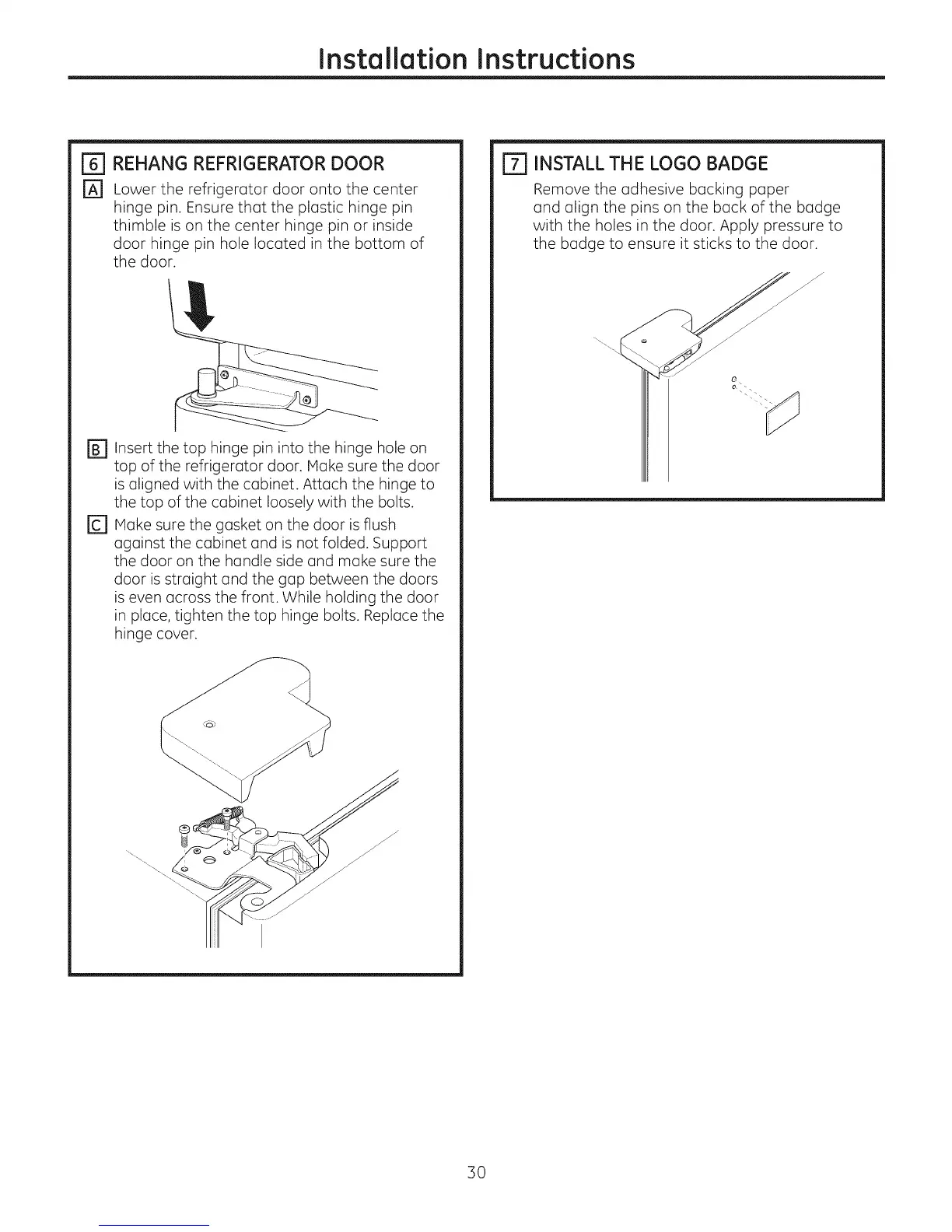

Installation Instructions
E] REHANG REFRIGERATOR DOOR
r_ Lower the refrigerator door onto the center
hinge pin. Ensure that the plastic hinge pin
thimble is on the center hinge pin or inside
door hinge pin hole located in the bottom of
the door.
%
E]
Insert the top hinge pin into the hinge hole on
top of the refrigerator door. Hake sure the door
is aligned with the cabinet. Attach the hinge to
the top of the cabinet loosely with the bolts.
Hake sure the gasket on the door is flush
against the cabinet and is not folded. Support
the door on the handle side and make sure the
door is straight and the gap between the doors
is even across the front. While holding the door
in place, tighten the top hinge bolts. Replace the
hinge cover.
r_ INSTALL THE LOGO BADGE
Remove the adhesive backing paper
and align the pins on the back of the badge
with the holes in the door. Apply pressure to
the badge to ensure it sticks to the door.
3O
