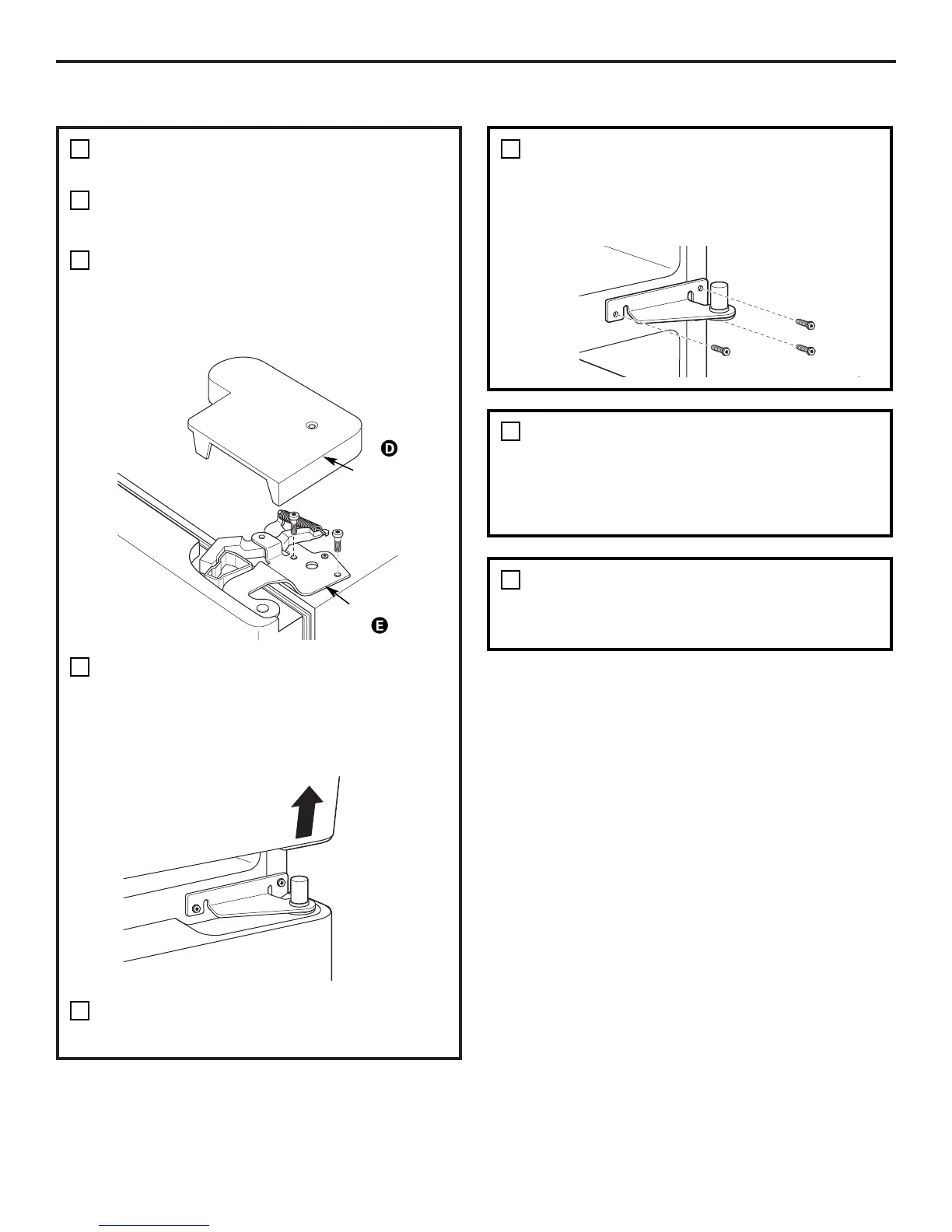

REMOVE THE
REFRIGERATOR DOORS (cont.)
Remove the hinge cover on top of the
refrigerator door by removing the Phillips
head screws and pulling it up.
Using a 5/16″ socket ratchet/driver,
remove the bolts securing the top hinge to
the cabinet. Then lift the hinge straight up
to free the hinge pin from the socket in
the top of the door.
Remove the tape and tilt the door away
from the cabinet. Lift the door off the
center hinge pin. Ensure that the plastic
hinge pin thimble remains on the hinge pin
or inside door hinge pin hole located in the
bottom of the door.
Set the door on a non-scratching surface
with the inside up.
Installation Instructions
31
REMOVE OPPOSITE DOOR
Follow the same procedure on the
opposite door. There are no wires, water
lines or center hinge covers on the
opposite side.
3
REMOVE FREEZER DRAWER
Refer to the Removing the Freezer Drawer
section for instructions.
4
F
G
1
D
Hinge Cover
Top Hinge
REMOVE CENTER HINGE
Using a 5/16″ socket ratchet/driver,
remove the bolts securing the center
hinge to the cabinet. Set the hinge
and bolts aside.
2
E
To Next Page
