Installation Instructions
Hinge Pin
Top Hinge
TRANSFER TOP HINGE TO
THE LEFT
Interchange hinge and screws at top right with
screws at the top left of cabinet.
Do not tighten screws on hinge side at this time.
3
REMOVE THE REFRIGERATOR
DOOR
Tape the door shut with masking tape.
Remove the center hinge pin with a 3/4″ socket.
Remove the tape and tilt the door away from the
cabinet. Lift the door straight off the bottom hinge
bracket.
Set the door on a non-scratching surface, with the
inside up.
CAUTION: Do not let door drop to the floor.
To do so could damage the door stop.
2

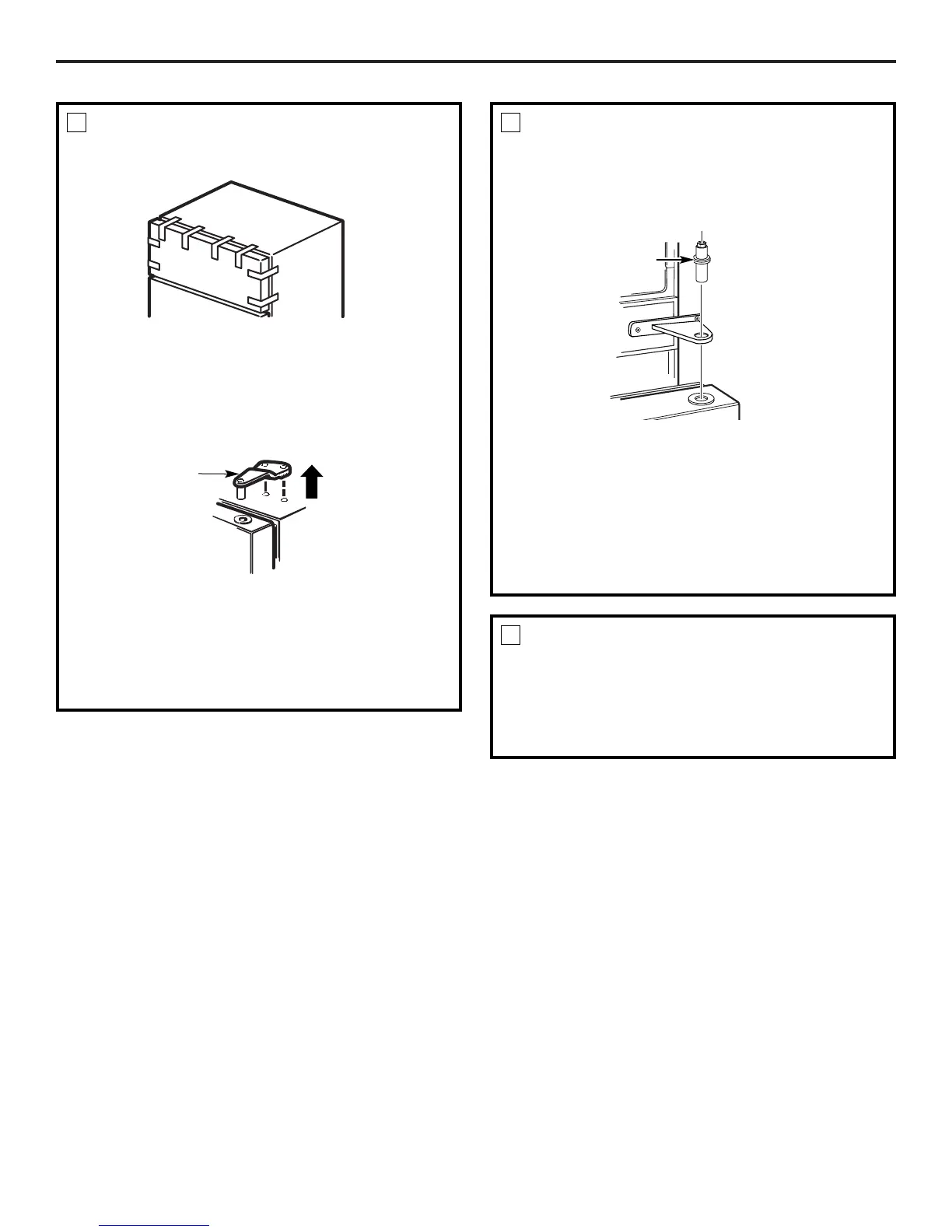

REMOVE THE FREEZER DOOR
Tape the door shut with masking tape.
Remove the hinge cover on top of the freezer door
(on some models).
Remove the two Torx screws, then lift the hinge
straight up to free the hinge pin from the socket in
the top of the door.
Tape the door shut with masking tape.
Remove the tape and tilt the door away from the
cabinet. Lift it off the center hinge pin.
Set the door on a non-scratching surface with
the inside up.
1
