INSTALLING THE REFRIGERATOR (cont.)

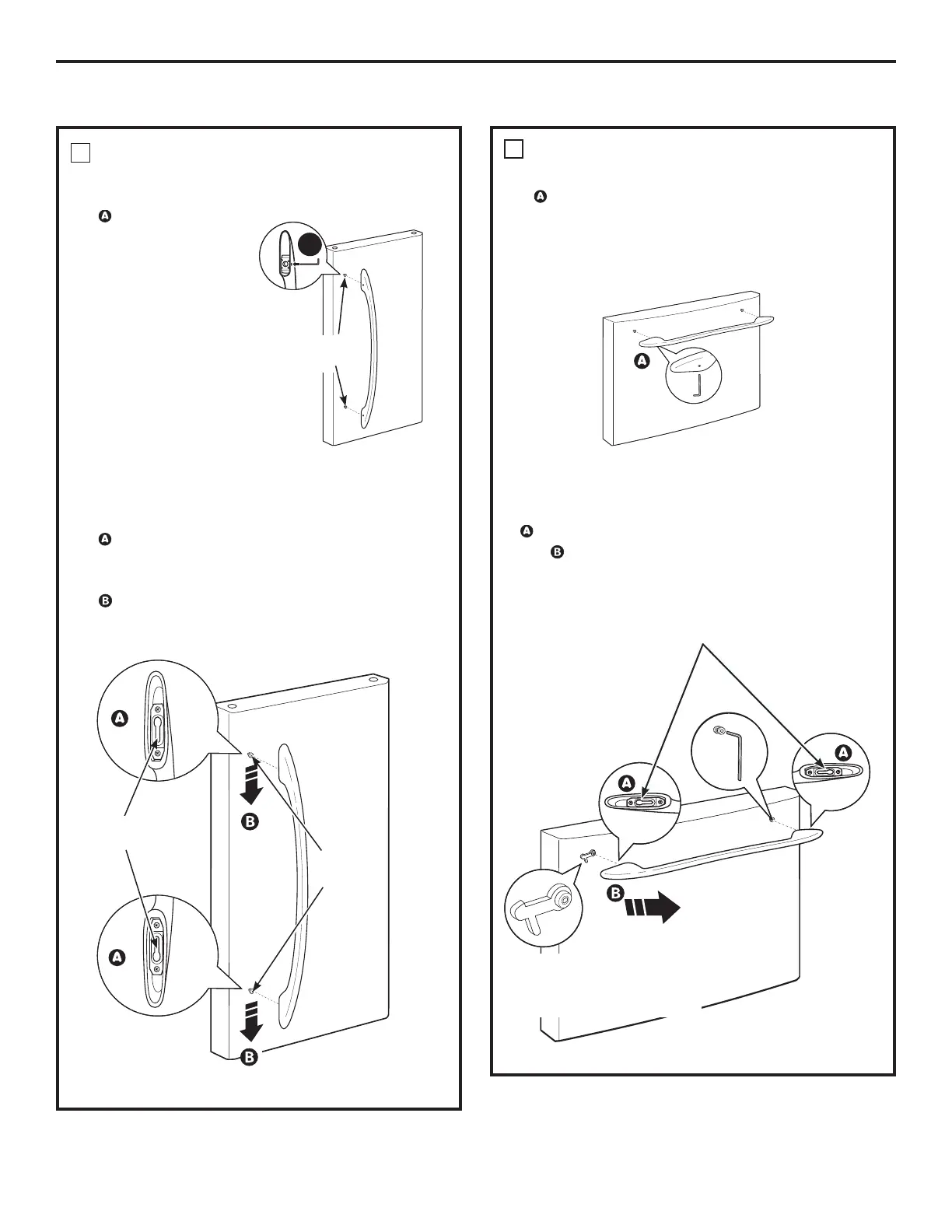

ATTACH THE FREEZER DOOR HANDLE
Stainless steel and plastic handles:
Attach the handle firmly to the mounting
fasteners and tighten the set screws on
the bottom of the handle with a 1/8” Allen
wrench.
Plastic handle: (on some models)
Attach the handle to the handle mounting fasteners
by aligning the slots with the handle mounting
fasteners.
Slide it right until it is firmly locked into
position.
Installation Instructions
20
ATTACH THE FRESH FOOD
DOOR HANDLE
Stainless steel handle:
Attach the
handle to the
handle mounting
fasteners and
tighten the set
screws with a
3/32” Allen
wrench.
NOTE: For
Double Door
models follow
the same
procedure on the
opposite door.
Plastic handle:
Attach the handle to the handle mounting
fasteners by aligning the slots with the
handle mounting fasteners.
Slide it down until it is firmly locked into
position.
8
A
Mounting
Fasteners
(appearance may vary)
(appearance may vary)
Mounting
fasteners
Slots on back of
handle
9
(appearance may vary)
Slots on back
of handle
(appearance may vary)
NOTE: Before attaching the
handle, make sure the tab is
oriented as shown.
To Next Page
