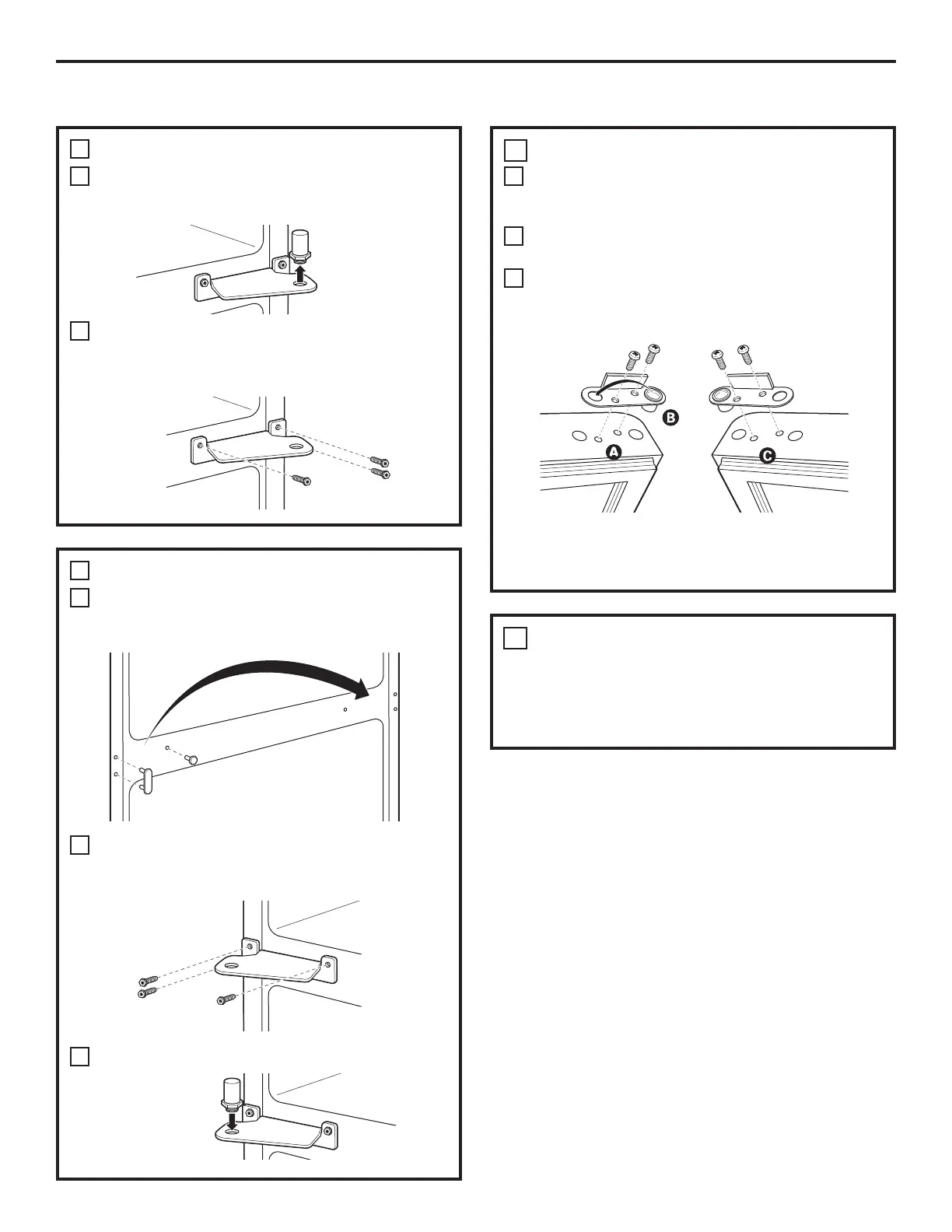

Installation Instructions
REMOVE CENTER HINGE
Remove the hinge pin from the hinge bracket.
The hinge pin will be used again with the new
hinge bracket for the other side.
Using a 5/16” socket ratchet/driver, remove the
bolts securing the center hinge to the cabinet.
Set the bolts aside.
2
INSTALL CENTER HINGE
Transfer the plug button and screw hole
cover in the hinge holes on the left side
to the right side.
A new hinge bracket is required for the left
side (supplied in the door hinge kit). Install
the center hinge from the kit on the left side.
Install the hinge pin into the new hinge bracket.
3
A
B
TRANSFER REFRIGERATOR DOOR STOP
Remove the door stop on right side of
the bottom of the refrigerator door by
removing the two screws.
Move the plastic hinge hole thimble to
the opposite hole.
Install the door stop on the left side, making
sure to line up the screw holes in the door stop
with the holes in the bottom of the door.
4
A
B
C
Bottom of
Refrigerator Door
(Right Side)
Bottom of
Refrigerator Door
(Left Side)
TRANSFER REFRIGERATOR
DOOR HANDLE TO RIGHT
Refer to Remove the Fresh Food Door Handle
and Attach the Fresh Food Door Handle
sections for instructions.
5
A
B
C
