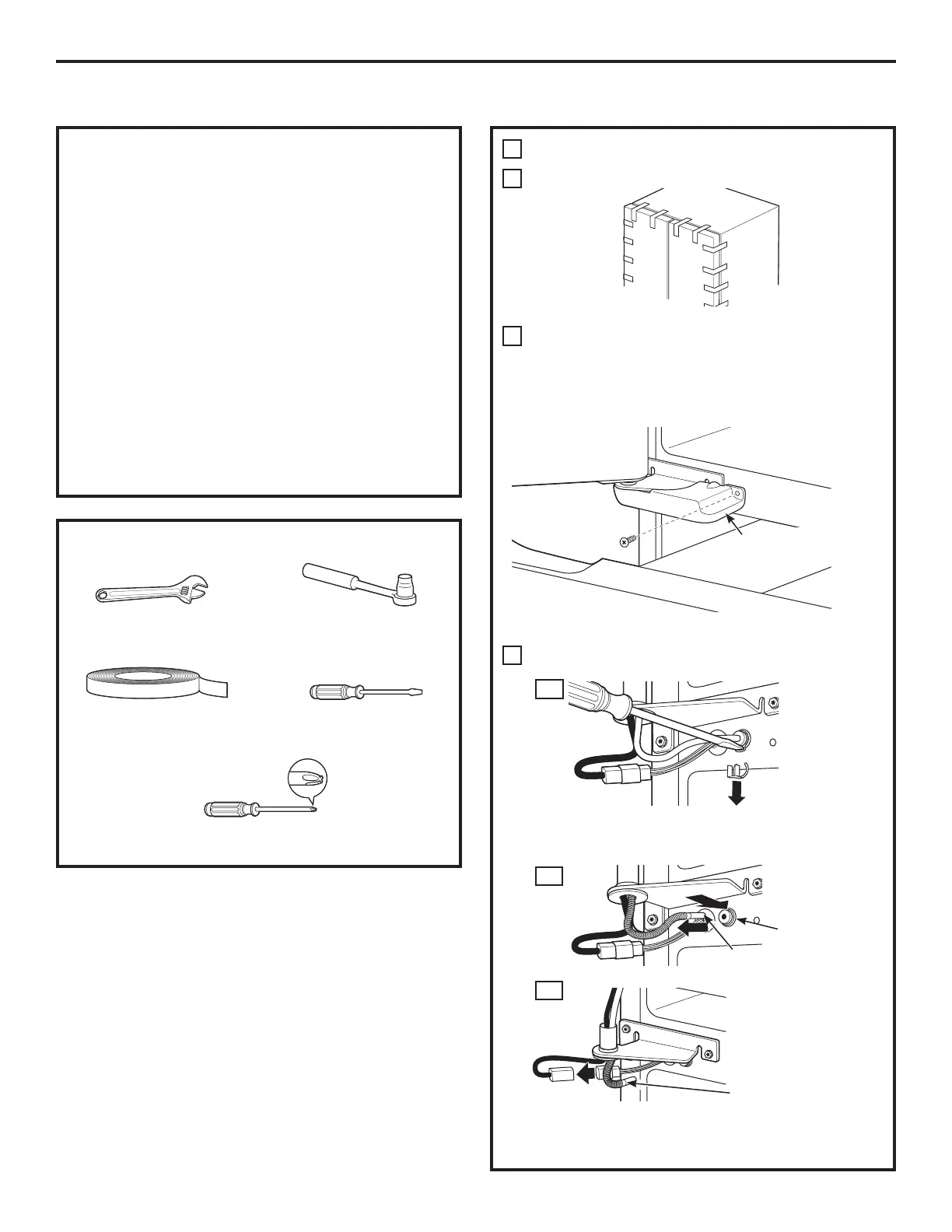

Installation Instructions
REMOVING THE DOORS (Double Door Refrigerator Models only)
IMPORTANT NOTES
NOTE: Door swing is not reversible.
• Read the instructions all the way through before
starting.
• Handle parts carefully to avoid scratching paint.
• Set screws down by their related parts to avoid
using them in the wrong places.
• Provide a non-scratching work surface for
the doors.
IMPORTANT: Once you begin, do not move
the cabinet.
These instructions are for removing the doors.
Unplug the refrigerator from its electrical outlet.
Empty all door shelves, including the dairy
compartment.
REMOVE THE REFRIGERATOR DOORS
Tape the doors shut with masking tape.
Start with left-hand door first: Remove
the screw securing the center hinge cover, lift
the hinge cover and place to the side on top of
the refrigerator.
Remove water coupling and power coupling.
1
A
B
27
TOOLS YOU WILL NEED
Thin-blade Screwdriver
Masking Tape
Adjustable Wrench
3/8” and 10 mm Socket
Ratchet/Driver
Phillips Screwdriver
Remove hinge cover
(1 Phillips screw)
C
Water Coupling
Remove the metal
spring clip. Use a
screwdriver to push
the red plastic locking
clip down and off.
C1
Water Coupling
Push red collar
and hold.
Power Coupling
Black mark
flush with
collar assembly
Pull apart
power coupling
to disconnect
C2
C3
(for water dispenser models)
(for water dispenser models)
Pull tube.
To Next Page
