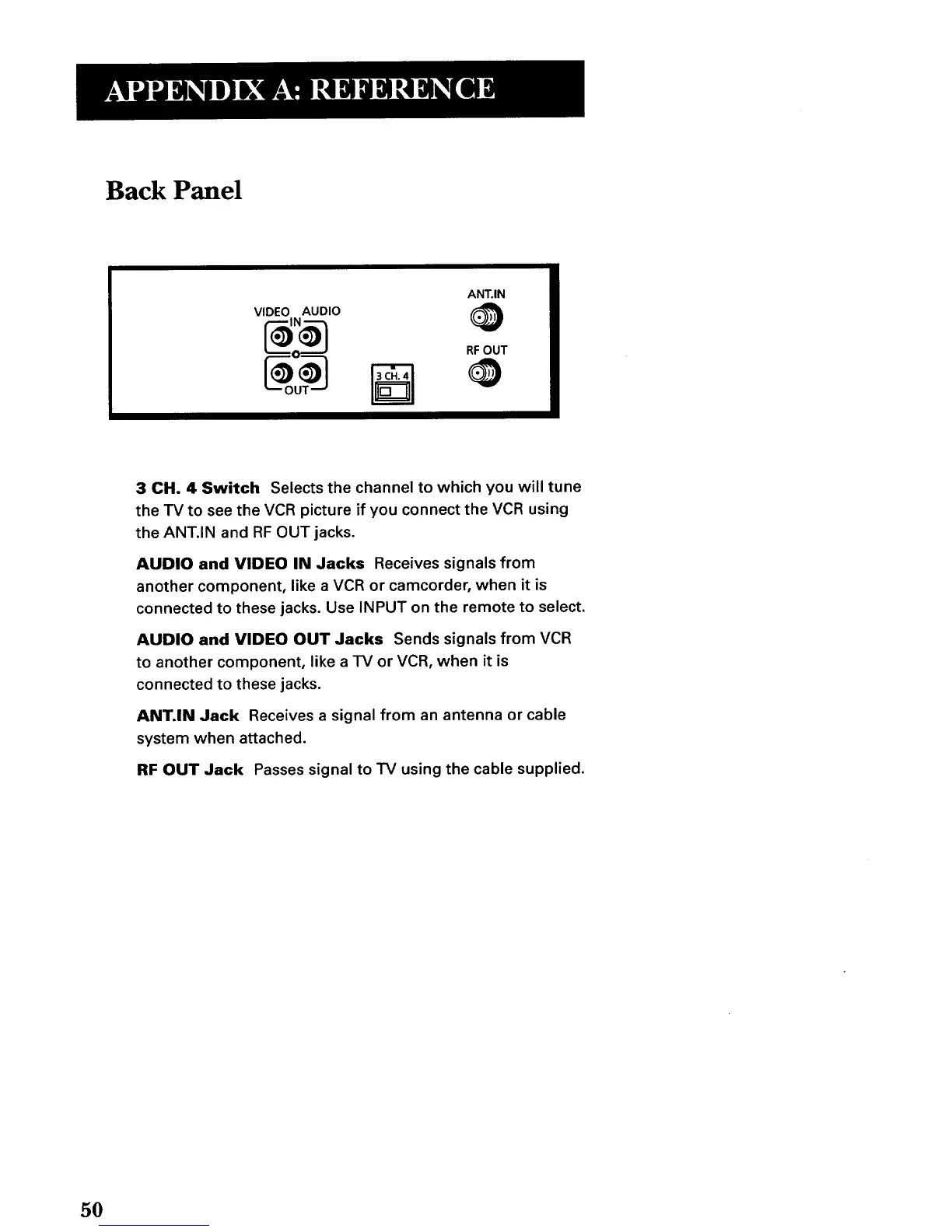

Back Panel
ANT.IN
VIDEO AUDIO
RF OUT
3 CH. 4 Switch Selects the channel to which you will tune
the TV to see the VCR picture if you connect the VCR using
the ANT.IN and RF OUT jacks.
AUDIO and VIDEO IN Jacks Receives signals from
another component, like a VCR or carncorder, when it is
connected to these jacks. Use INPUT on the remote to select.
AUDIO and VIDEO OUT Jacks Sends signals from VCR
to another component, like a -IV or VCR, when it is
connected to these jacks.
ANT.IN Jack Receives a signal from an antenna or cable
system when attached.
RF OUT Jack Passes signal to "IV using the cable supplied.
5O
