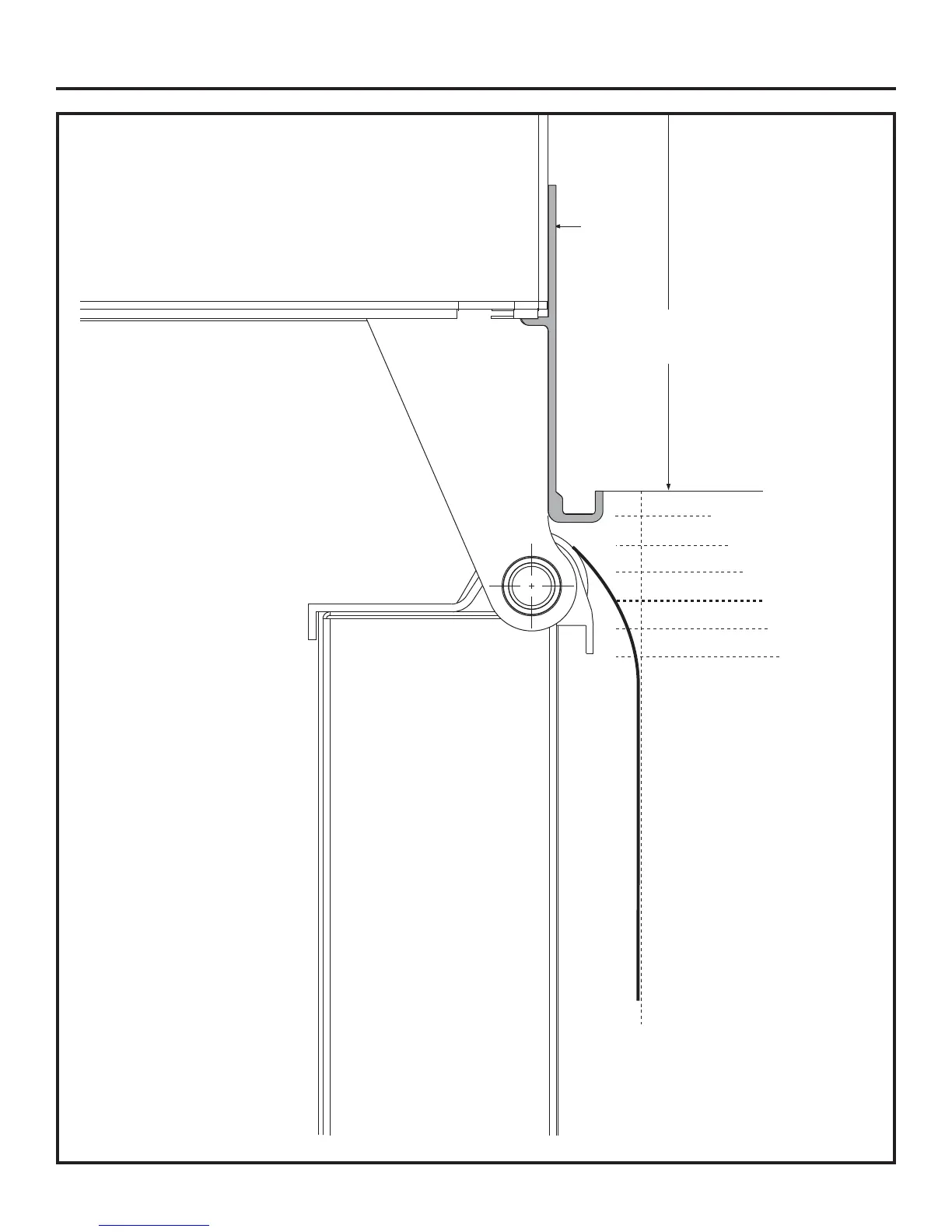

GE 42" - Refrigerator; Top View

3/4"
1/4"
1/2"
3/4"
1"
1-1/4"
1-1/2"
23-9/16"
From Rear of
Refrigerator
Case Trim
Refrigerator
Door
Stainless Steel
Top View
90° DOOR SWING
Scale 1:1
Frameless Cabinets:
The case trim overlaps
cabinets at the top
and sides. Therefore,
frameless cabinets may
require filler strips to
prevent interference
with cabinet door swing.
The opening must allow
for filler strips.
Installation Instructions
