GE ADT521PGFBS Installation Instructions

Sound Barrier
Bottom Front View
Tape
NOTE: If installing a Cus-
tom Door Panel (available
on some models), please
follow the instructions
found in the Custom
Door Panel kit.
• With dishwasher on
the wood base, check
the door balance by
opening and closing
the door.
• Door is properly
balanced if, when
opened, it self closes within 20° from vertical, stays in position
from 20° to 70° and falls fully open beyond 70°.
• If necessary increase or decrease tension as shown. Latch
door and adjust both springs to the same tension setting to
correct balance.
Dishwasher Installation
• Screw leveling legs back into the dishwasher frame,
approximately 1/2" from frame as shown.
NOTE: Some models have rear adjustable leveling wheels, and
will not require the 2 rear leveling legs.
Approx.
1/2"
STEP 3: REMOVE WOOD BASE,
INSTALL LEVELING LEGS
IMPORTANT – 'RQRWNLFNRȺZRRGEDVH
Damage will occur.
• Move the dishwasher close to the installation location and lay
it on its back.
• Remove the 4 leveling legs on the underside of the wood base
with a 15/16" socket wrench.
• Discard base.
STEP 1: PREPARATION
Locate the items in the installation package:
• Screws
• Junction box cover
• Drain hose and clamp
• Mounting brackets
• Trim pieces (on some models)
• Drain hose hanger
• Owner's Manual
• Product samples and/or coupons
Figure I
Toekick
Remove 2
Toekick Screws
STEP 4: REMOVE TOEKICK
• Remove the 2 toekick screws and toekick. Set aside for use in
Step 24.
Figure J
6
Tip: Make sure door opens and closes smoothly.
Check door opening and closing. If door does not open easily or
falls too quickly, check spring cable routing. The cable is held in
place by “shoulders” on the pulley. Check to be sure cable has
not slipped over the pulley shoulders and is routed as shown.

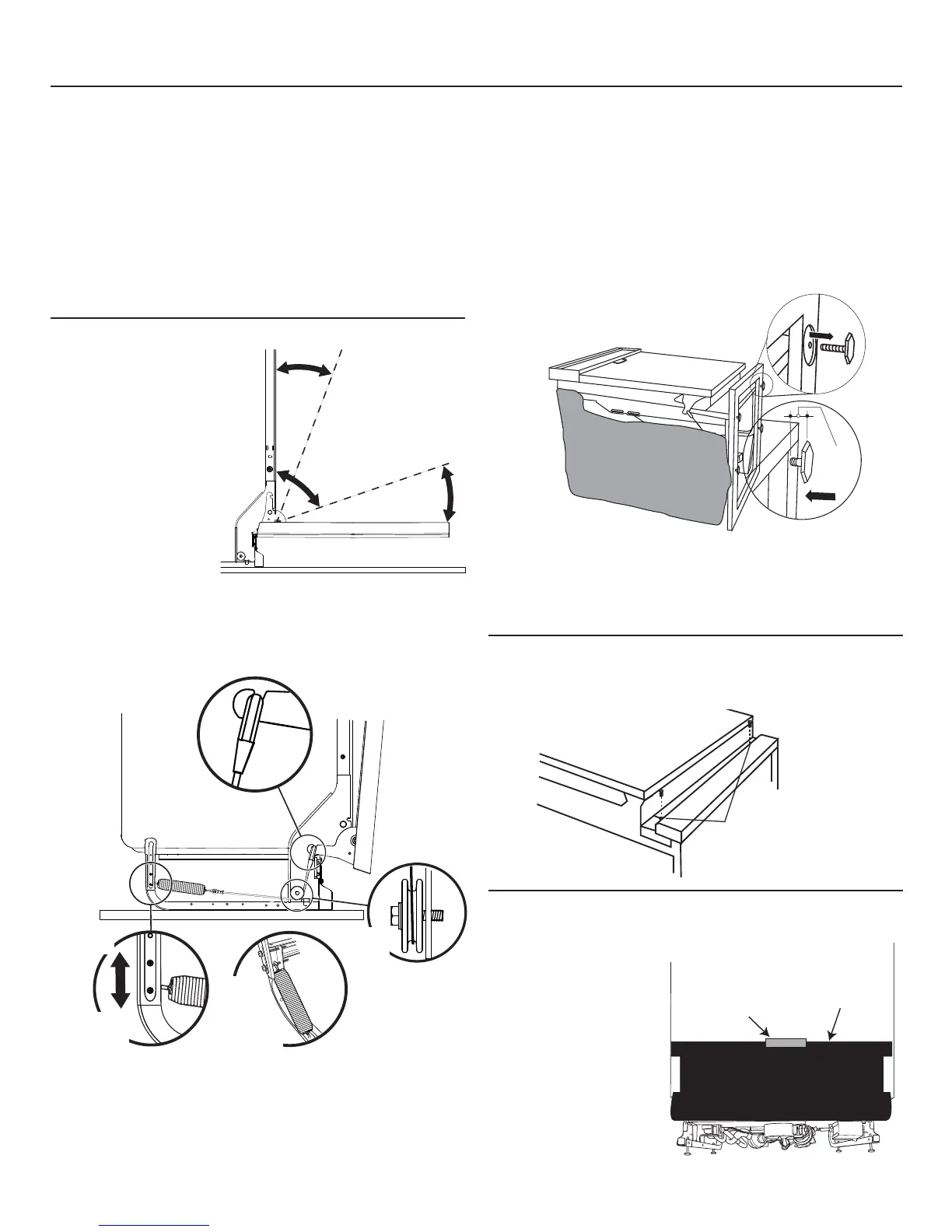

STEP 2: CHECK DOOR BALANCE
STEP 5: POSITION SOUND BARRIER
(on some models)
Skip this step if the sound
barrier is not assembled
to the dishwasher.
Lift the sound barrier and
tape to the door front with
masking tape. This will
hold the sound barrier up
and out of the way during
installation.
Increase
Tension
Decrease
Tension
Front
View
Figure H
Side View
Make sure
pulley cable is
within pulley
shoulders
Spring
hooked
to screw
inside leg
Figure G
Door
closes
within
20°
Door stays in
position from
20° to 70°
Door falls fully
open beyond 70°
Side View
Figure K

GE ADT521PGFBS Specifications

General

Style	built-in dishwashers
Color	black
Control Type	electronic
Delay Start	yes
Child Lock	yes
Load Sensor	yes
Number of Racks	2
Water Filter	yes
Food Disposer	yes
Sanitize Settings	yes
Annual Energy Consumption	275 kilowatt hours
Voltage	120 volts
Current	7.1 amperes

Weight and Dimensions

Depth	24 inches
