GE ADT521PGFBS Installation Instructions

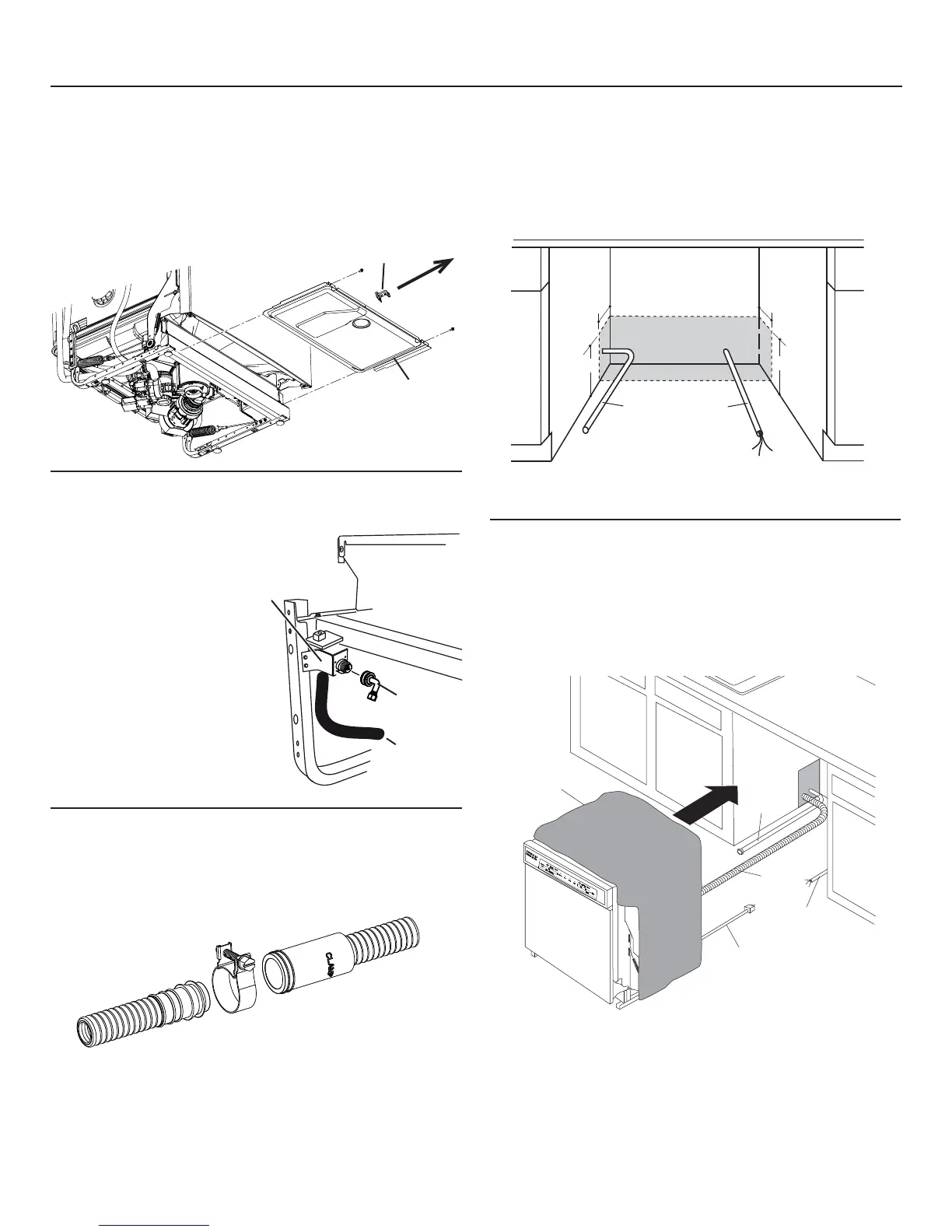

STEP 8: INSTALL DRAIN HOSE TO DRAIN
LOOP
Connect drain loop end to drain hose using the screw clamp
as shown in the figure.
STEP 7: INSTALL 90° ELBOW
• Thread 90° elbow
onto the water valve.
• Do not overtighten
elbow. Water valve
bracket could
bend or water valve
fitting could break.
• Position the end of
the elbow to face the
rear of the dishwasher.
STEP 6: REMOVE FLOOR PROTECT
(on some models)
• Remove leak sensor (on some models). Remove screw from
leak sensor on the front of the Floor Protect with a 1/4" driver.
• Remove 2 screws .
• Rotate Floor Protect outward and lift out of the mounting tabs.
• Set aside for use in Step 22.
Dishwasher Installation
7
Figure N
Power Cord
(If Used)
Insulation
Blanket
Water
Line
Maximum Drain Hose
Length 15'
House
Wiring
Drain
Hose
Figure P
STEP 10: INSTALL DRAIN HOSE,
THROUGH CABINET
• Position dishwasher in front of cabinet opening. Insert drain
hose into the hole in cabinet side. If a power cord is used,
guide the end through a separate hole.
STEP 9: POSITION WATER LINE
AND HOUSE WIRING
• Position water supply line and house wiring on the floor of
the opening to avoid interference with base of dishwasher
and components under dishwasher.
Figure O
Water
Line
House
Wiring
4"
4"
6"
6"
7LS3UHYHQWXQQHFHVVDU\VHUYLFHFDOOFKDUJHVIRU¿OOGUDLQ
or noise concerns.
Position utility lines so they do not interfere with anything
under or behind the dishwasher.
Figure M
Water Valve
Bracket
90° Elbow
Fill Hose
Front of dishwasher
Floor Protect
NOTE: The high drain loop on the side of the tub is designed for
better wash performance. Do not remove from the side of the tub.
Leak Sensor
Figure L

GE ADT521PGFBS Specifications

General

Style	built-in dishwashers
Color	black
Control Type	electronic
Delay Start	yes
Child Lock	yes
Load Sensor	yes
Number of Racks	2
Water Filter	yes
Food Disposer	yes
Sanitize Settings	yes
Annual Energy Consumption	275 kilowatt hours
Voltage	120 volts
Current	7.1 amperes

Weight and Dimensions

Depth	24 inches
