GE AEM18DQQ1 User Manual

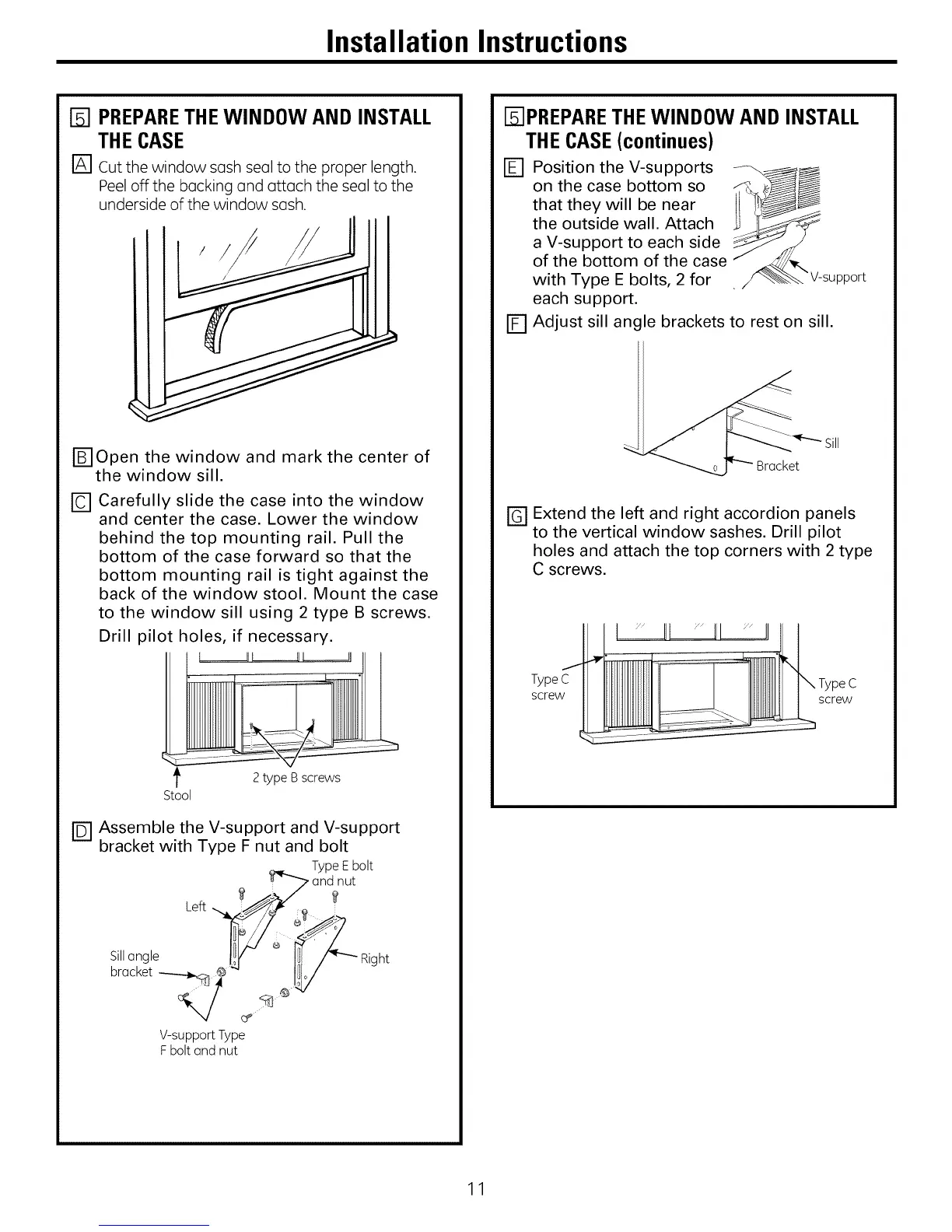

Installation Instructions
D PREPARETHEWINDOW AND INSTALL
THECASE
[] Cut the window sash seal to the proper length.
Peel off the backing and attach the seal to the
underside of the window sash.
r_Open the window and mark the center of
the window sill.
[] Carefully slide the case into the window
and center the case. Lower the window
behind the top mounting rail. Pull the
bottom of the case forward so that the
bottom mounting rail is tight against the
back of the window stool. Mount the case
to the window sill using 2 type B screws.
Drill pilot holes, if necessary.
t JlL _L
Stool
2 type B screws
r_ Assemble the V-support and V-support
bracket with Type F nut and bolt
Type Ebolt
nut
Left
Sillangle
brocket __ _
V-support Type
Fbolt and nut
_ht
Fs]PREPARETHE WINDOW AND INSTALL
THECASE(continues)
[] Position the V-supports J_,
on the case bottom so
that they will be near
the outside wall. Attach
a V-support to each side
of the bottom of the case
with Type E bolts, 2 for
each support.
E3
tpport
Adjust sill angle brackets to rest on sill.
r_ Extend the left and right accordion panels
to the vertical window sashes. Drill pilot
holes and attach the top corners with 2 type
C screws.
TypeC
screw
c
screw
11
