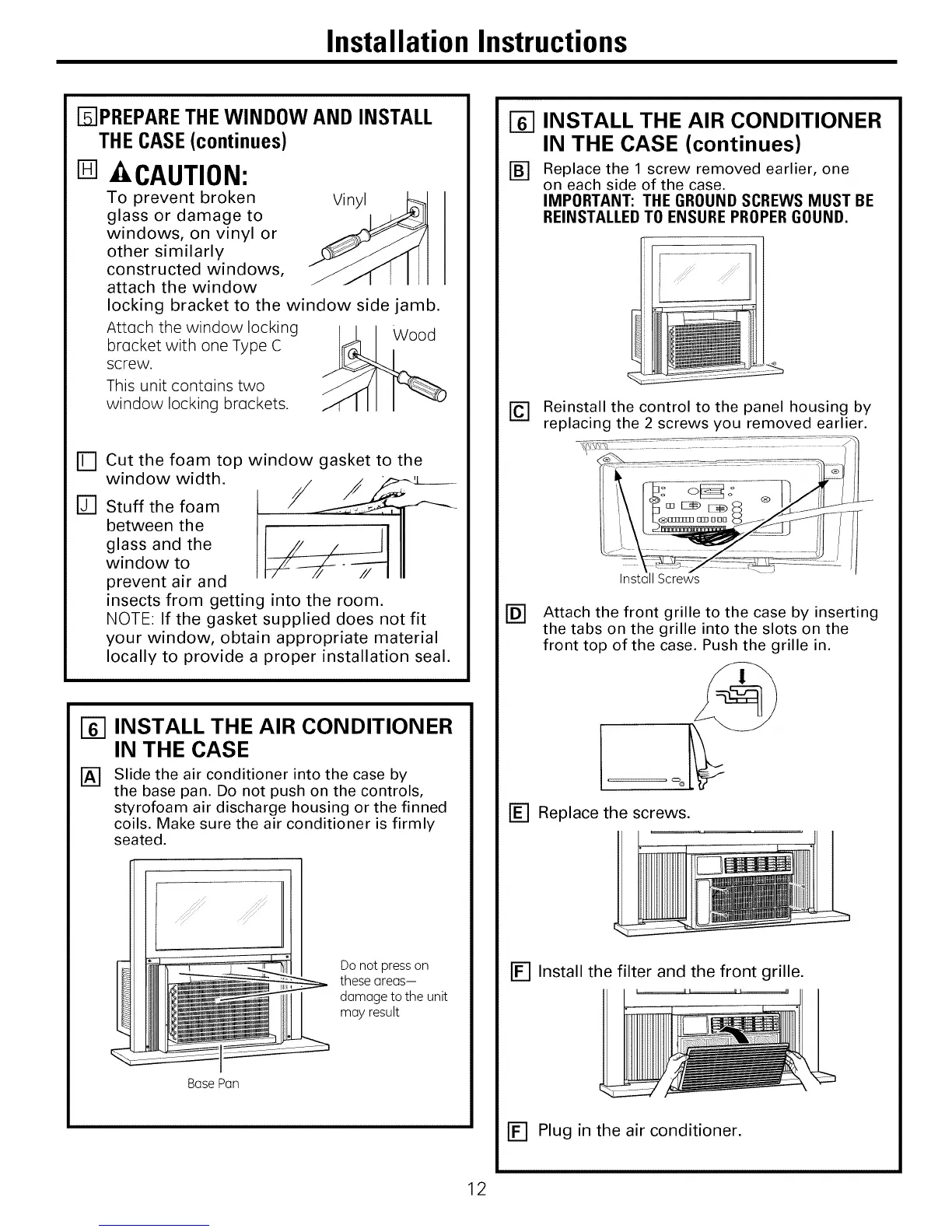

Installation Instructions
DPREPARE THE WINDOW AND INSTALL
THECASE(continues)
[] CAUTION:
To prevent broken Vinyl
glass or damage to
windows, on vinyl or
other similarly
constructed windows,
attach the window
locking bracket to the window side jamb.
Attach the window locking Wood
bracket with one Type C
screw.
This unit contains two
window locking brackets.
[]-] Cut the foam top window gasket to the
window width.
r_ stuff the foam
between the
glass and the
window to
prevent air and
insects from getting into the room.
NOTE: If the gasket supplied does not fit
your window, obtain appropriate material
locally to provide a proper installation seal.
[] INSTALL THE AIR CONDITIONER
IN THE CASE
Slide the air conditioner into the case by
the base pan. Do not push on the controls,
styrofoam air discharge housing or the finned
coils. Make sure the air conditioner is firmly
seated.
:_!!iF_!!!!!!!
Do not press on
these areas-
damage to the unit
may result
Base Pan
INSTALL THE AIR CONDITIONER
IN THE CASE (continues)
[] Replace the 1 screw removed earlier, one
on each side of the case.
IMPORTANT: THE GROUND SCREWS MUST BE
REINSTALLEDTO ENSURE PROPERGOUND.
[_ Reinstall the control to the panel housing by
replacing the 2 screws you removed earlier.
Screws
Attach the front grille to the case by inserting
the tabs on the grille into the slots on the
front top of the case. Push the grille in.
['_ Replace the screws.
[_] Install the filter and the front grille.
[_ Plug in the air conditioner.
12
