1 Analog I/O Option OPCAIO
1.1 Introduction
1.1.1 OPCAIO Analog I/O Option Module
The Analog I/O card is supposed to be used in the following cases:
• Providing battery back-up of clock function on control card
• As general extension of analog I/O selection available on control card
• Turning frequency converter into de-central I/O block supporting Building Management System with inputs for sensors and outputs for operating
dampers and valve actuators
• Support Extended PID controllers with I/Os for set point inputs, transmitter/sensor inputs and outputs for actuators.

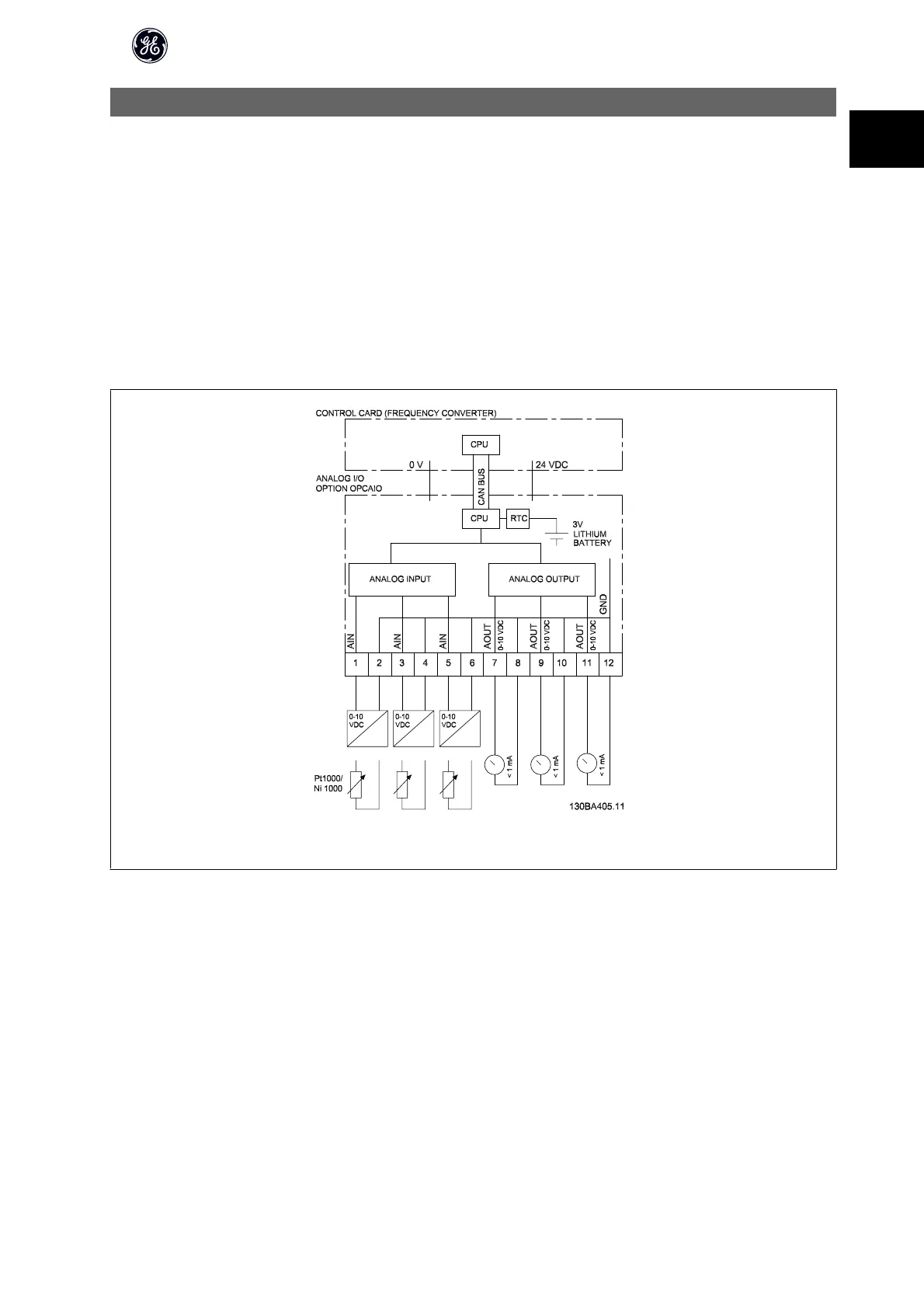

Illustration 1.1: Principle diagram for Analog I/O mounted in frequency converter.
Analog I/O configuration
3 x Analog Inputs, capable of handling following:
• 0 - 10 VDC
OR
•
0-20 mA (voltage input 0-10V) by mounting a 510Ω resistor across terminals (see NB!)
•
4-20 mA (voltage input 2-10V) by mounting a 510Ω resistor across terminals (see NB)
•
Ni1000 temperature sensor of 1000 Ω at 0° C. Specifications according to DIN43760
•
Pt1000 temperature sensor of 1000 Ω at 0° C. Specifications according to IEC 60751
3 x Analog Outputs supplying 0-10 VDC.
Analog I/O Instruction
1
1
