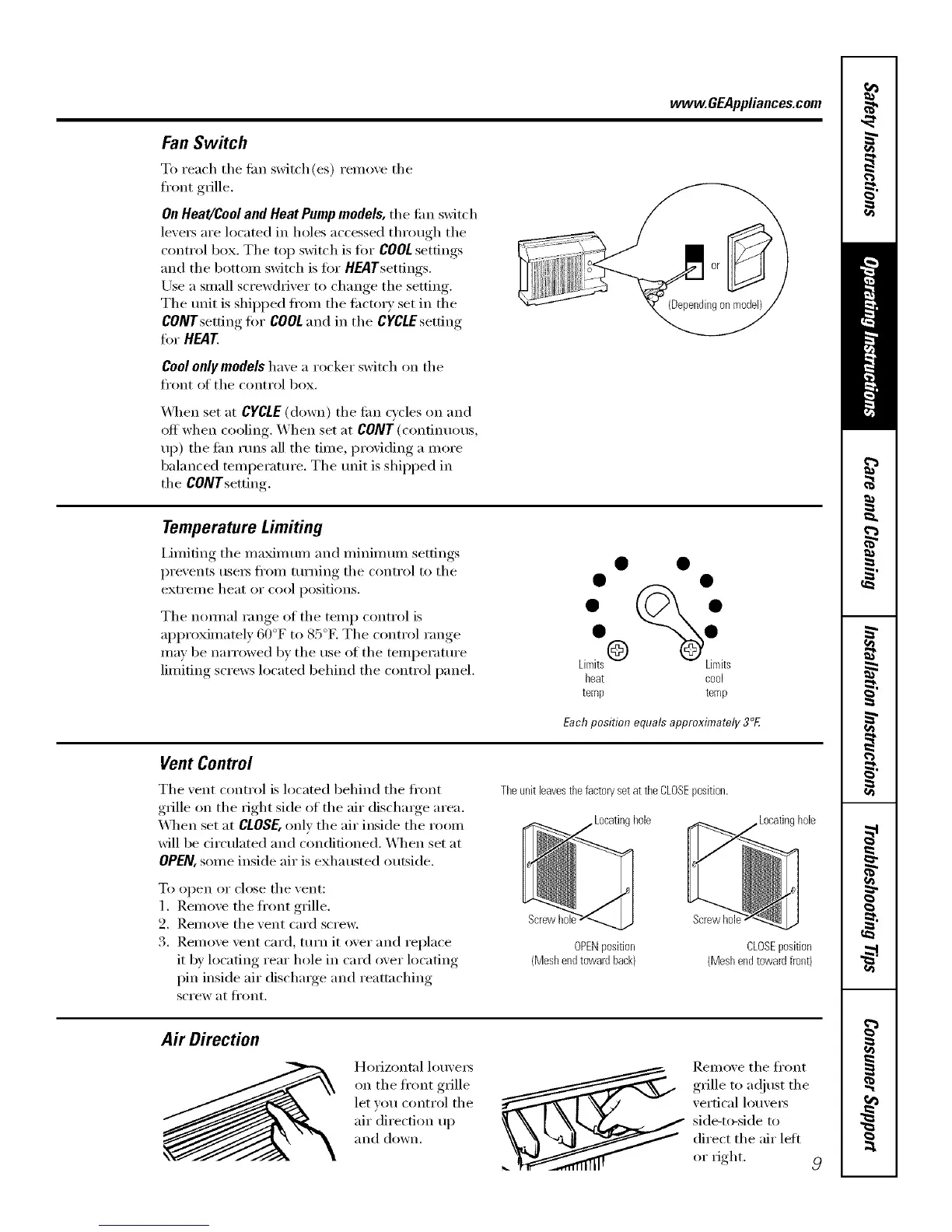

Fan Switch
To reach tile tim switch (es) remove tile
front grille.
OnHeagCool and Heat Pump models, tile tim switch
leveI_ are located in holes accessed through tile
control box. Tile top switch is fin" COOLsettings
and tile bottom sMtch is fin" H_lTsettings.
Use a small screwdriver to change tile setting.
Tile trait is shii)ped fl'Oll/ tile ti_ctory set ill tile
CONY setting tot COOLand in tile cgCtfsetting
tot HEAT
Cool only models have a rocker switch on tile
front of tile control box.
_4qlen set at CYCLE(down) tile tim cycles on and
off when cooling. When set at CONT (continuous,
up) tile tim runs all tile time, providing a more
balanced telnI)eramre. Tile unit is shipped ill
tile CONTsetting.
Temperature Limiting
Limiting tile maMmum and minimum settings
prevents useI_ ti'oln turning tile control to tile
extrelne heat or cool positions.
Tile nom/al range of tile temp control is
approxinmtely 60°F to 85°E Tile control range
may be narrowed by tile use of tile telni)erature
lilniting screws located behind the control panel.
. %.
Limits@ Limits
heat cool
temp temp
Eachposition equals approximately 3°E
Vent Control
Tile vent control is located behind tile fl'ont
grille on tile fight side of tile air discharge area.
X'_qlell set at CLOSE,onl} tile air inside tile room
will be circulated and conditioned. When set at
OPEN, some inside air is exhausted outside.
To open or close tile vent:
1. Relnove tile fl'ont grille.
2. Relnove tile vent card screw.
3. Relnove vent card, turn it over and replace
it by locating rear hole in card over locating
pin inside air dischmge and ream_ching
scFew at Ji'ollt.
Ti_eunitleavesthefactorysetatthe CLOSEposition.
_hole
OPENposition
(Meshendtowardhack)
Screwhc
CLOSEposition
(Meshendtowardfront)
A# Direction
HolJzontnl lo/wei_
on tile fl'ont grille
let you control tile
air direction up
and down.
Reln_we tile fl'ont
grille to a(!iust the
vertical louve_
side-to-side to
direct the air lett
or fight.
