14 49-5000544 Rev. 1
INSTALLATION INSTRUCTIONS
Installation Instructions
4. Install Main Window Panel and
Extension Panels (cont)

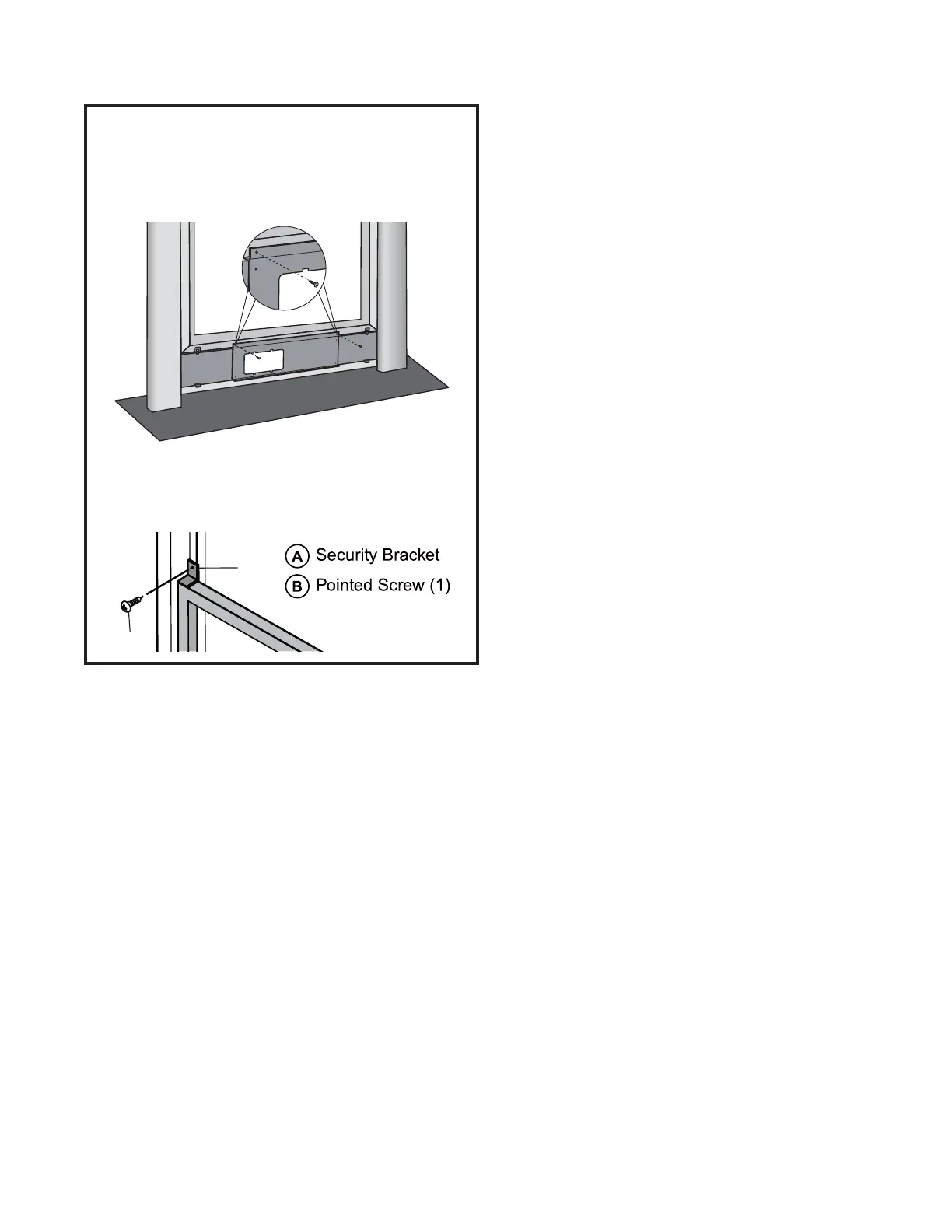

6. Place the window panel assembly in the window,
and using the screws provided, fasten the
assembly to the window sill and window frame.
7. Using one pointed screw, install the Security
bracket to the window.
NOTE: The security bracket prevents the window
from being opened from the outside.
B
A
To Next Page
