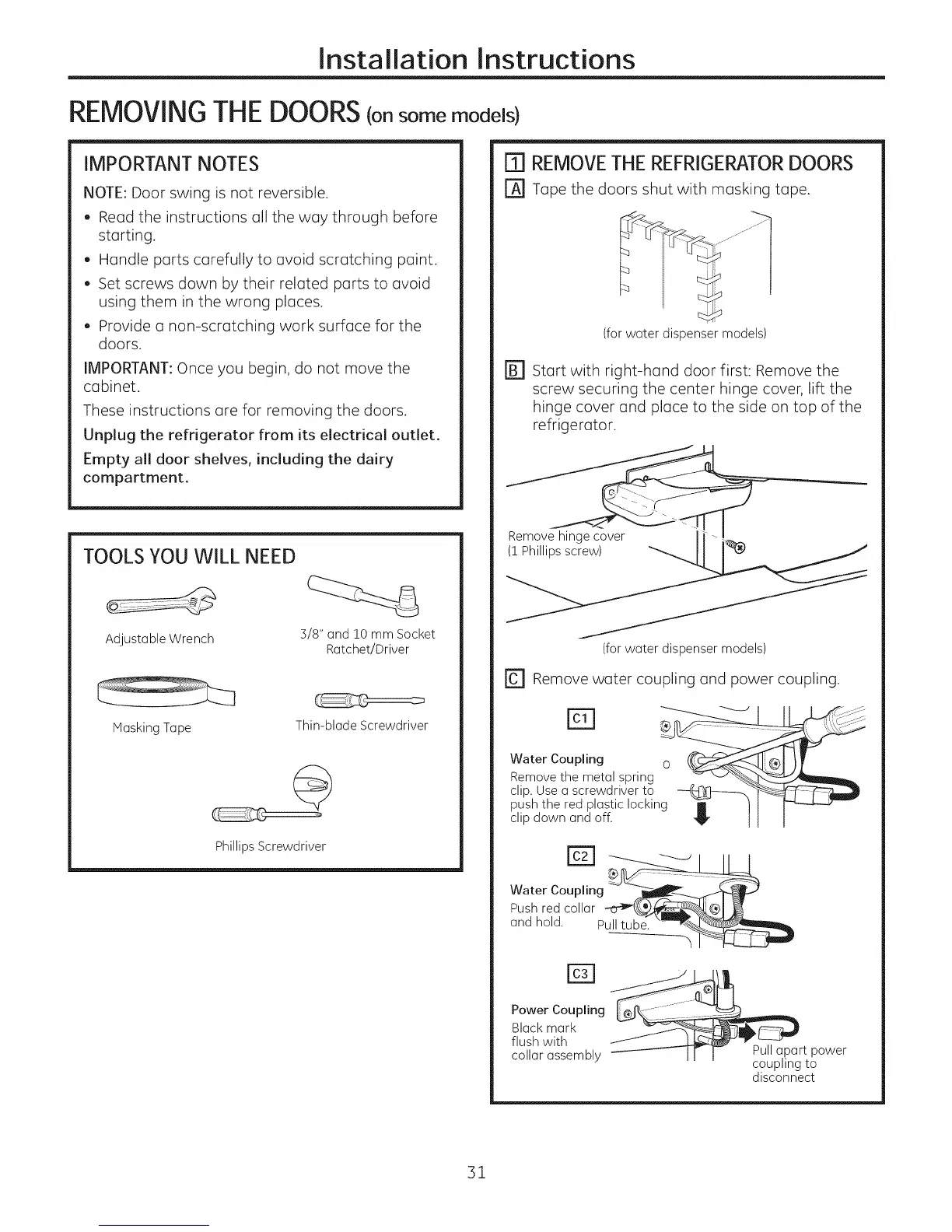

Installation Instructions
REMOVINGTHE DOORS(o.some models)
IMPORTANT NOTES
NOTE: Door swing is not reversible.
, Read the instructions all the way through before
starting.
, Handle parts carefully to avoid scratching paint.
, Set screws down by their related parts to avoid
using them in the wrong places.
, Provide a non-scratching work surface for the
doors.
IMPORTANT: Once you begin, do not move the
cabinet.
These instructions are for removing the doors.
Unplug the refrigerator from its electrical outlet.
Empty all door shelves, including the dairy
compartment.
TOOLS YOU WILL NEED
Adjustable Wrench
3/8" and 10 mm Socket
Ratchet/Driver
Masking Tape
Thin-blade Screwdriver
@
Phillips Screwdriver
[T1REMOVETHE REFRIGERATORDOORS
FA1 Tape the doors shut with masking tape.
/j/j J "j"
(for water dispenser models)
rB1 Start with right-hand door first: Remove the
screw securing the center hinge cover, lift the
hinge cover and place to the side on top of the
refrigerator.
Remov_
(for water dispenser models)
[] Remove water coupling and power coupling.
Water Coupling 0 __J!_l ) Y
Remove the metal spring _ _-_"--Q--_'_::y_.j4_m_
clip. Use a screwdriver to -_J----m "___
push the red plastic locking i- I I _--_4-..z"---
clip down and off. _ i I J
Power Coupling
Black mark
flush with
collar assembly
Pull apart power
coupling to
disconnect
31
