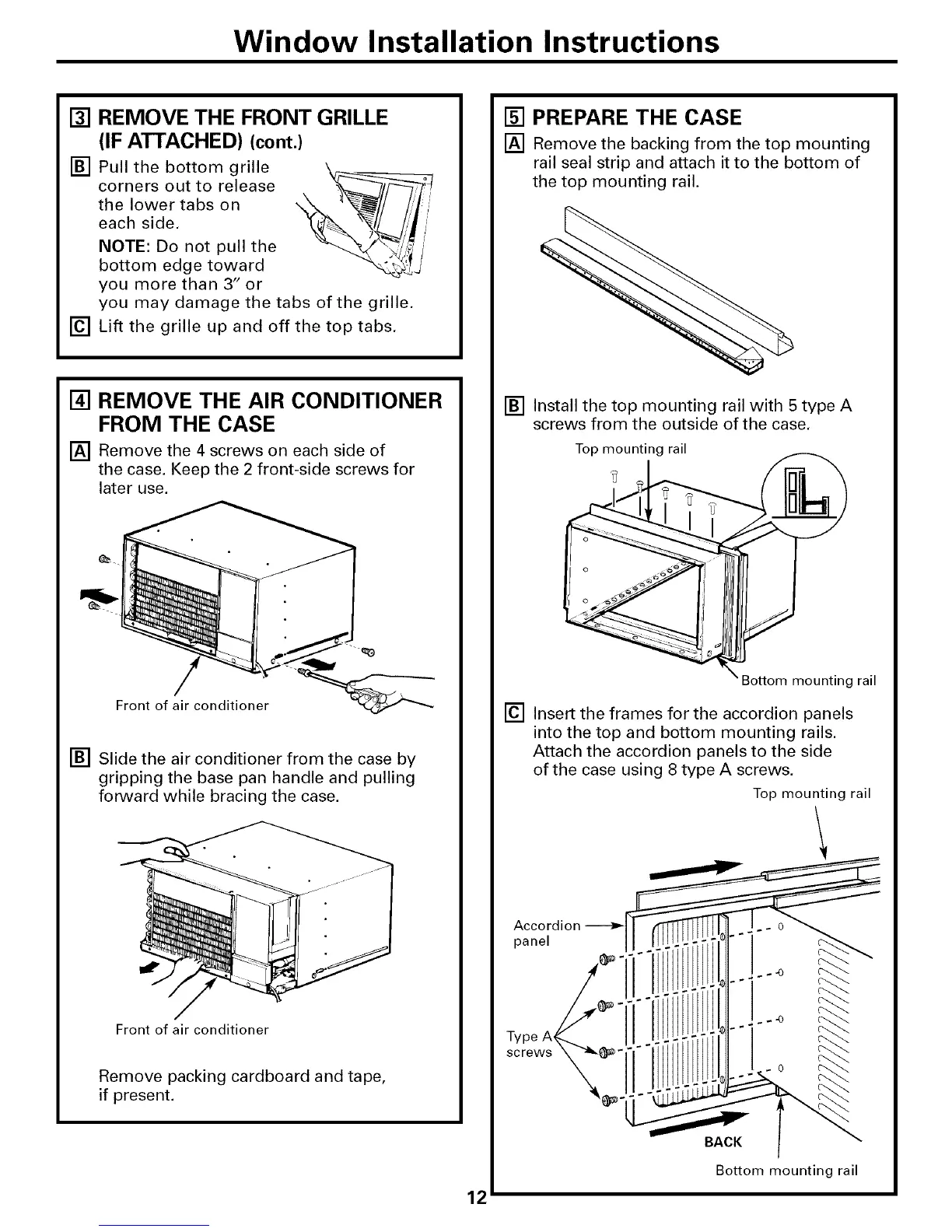

Window Installation Instructions
[] REMOVE THE FRONT GRILLE
(IF ATTACHED) (cont.)
[] Pull the bottom grille
corners out to release
the lower tabs on
each side,
NOTE: Do not pull the
bottom edge toward
you more than 3" or
you may damage the tabs of the grille.
[] Lift the grille up and off the top tabs.
[] REMOVE THE AIR CONDITIONER
FROM THE CASE
[] Remove the 4 screws on each side of
the case. Keep the 2 front-side screws for
later use.
Front of air conditioner
[] Slide the air conditioner from the case by
gripping the base pan handle and pulling
forward while bracing the case.
Front of air conditioner
Remove packing cardboard and tape,
if present.
12
[] PREPARE THE CASE
[] Remove the backing from the top mounting
rail seal strip and attach it to the bottom of
the top mounting rail.
[] Install the top mounting rail with 5 type A
screws from the outside of the case,
Top mounting rail
Bottom mounting rail
[] Insert the frames for the accordion panels
into the top and bottom mounting rails.
Attach the accordion panels to the side
of the case using 8 type A screws.
Top mounting rail
Accordion
panel
Type A_
screws
BACK
Bottom mounting rail
