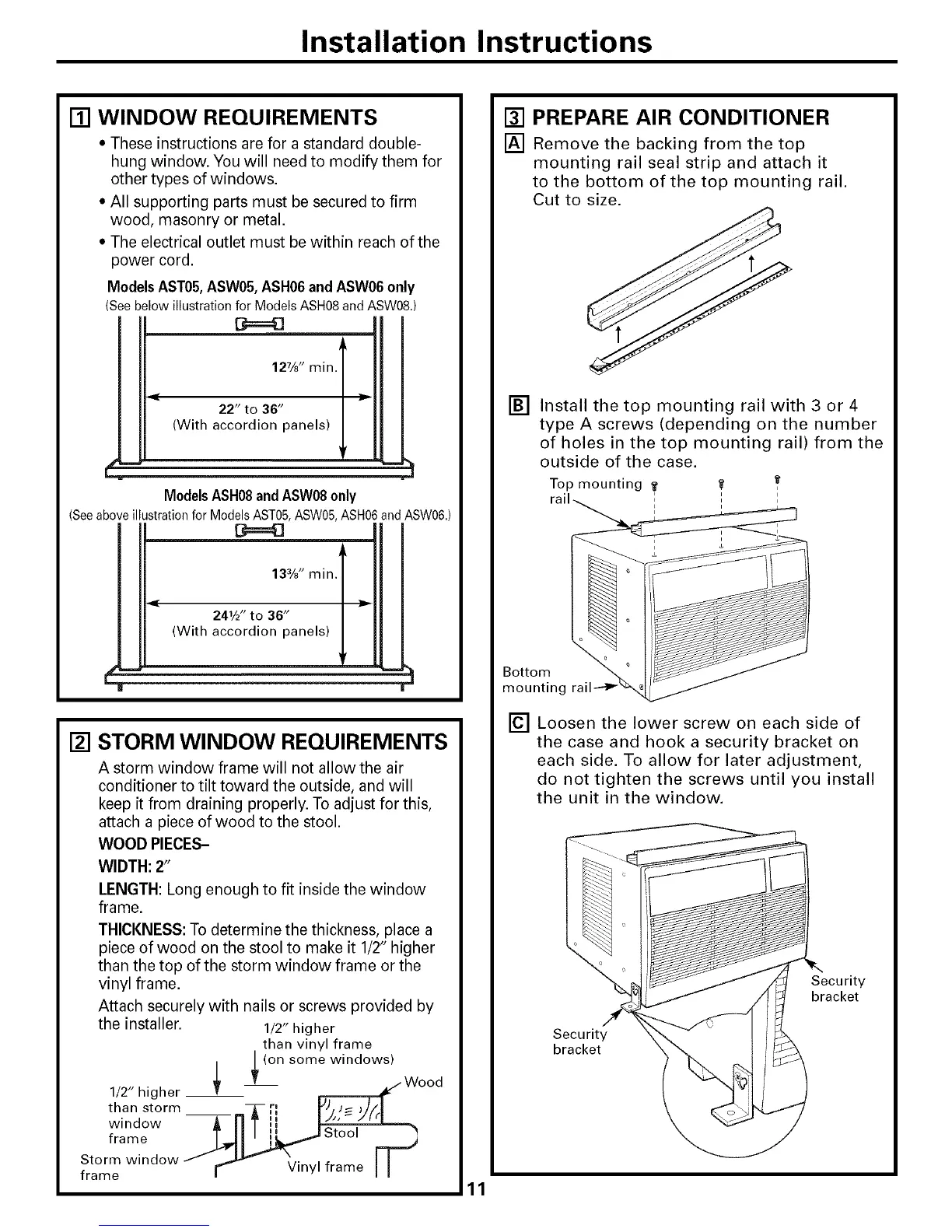

Installation Instructions
[] WINDOW REQUIREMENTS
• These instructions are for a standard double-
hung window. You will need to modify them for
other types of windows.
• All supporting parts must be secured to firm
wood, masonry or metal.
• The electrical outlet must be within reach of the
power cord.
ModelsAST05, ASW05,ASH06 andASW06 only
See below illustration for Models ASH08 and ASW08.)
B===8
127/8" min.
< 22" to 36" >
(With accordion panels)
ModelsASH08and ASW08only
(Seeabove illustration for ModelsAST05,ASW05,ASH06and ASW06.)
[Y===8
241/2"to 36"
{With accordion panels)
[] STORM WINDOW REQUIREMENTS
A storm window frame will not allow the air
conditioner to tilt toward the outside, and will
keep it from draining properly. To adjust for this,
attach a piece of wood to the stool.
WOOD PIECES-
WIDTH: 2"
LENGTH: Long enough to fit inside the window
frame.
THICKNESS: To determine the thickness, place a
piece of wood on the stool to make it 1/2" higher
than the top of the storm window frame or the
vinyl frame.
Attach securely with nails or screws provided by
the installer. 1/2" higher
than vinyl frame
L (on some windows)
/
W
L / Wood
1/2" higher !
than storm _- [I rJ/J_ JJ/,J
window _-rl Ill II i-',, i,,i
frame _._J _t°°l r._
Storm window/ 1,7 _/inyl frame J J
frame
11
[] PREPARE AIR CONDITIONER
[] Remove the backing from the top
mounting rail seal strip and attach it
to the bottom of the top mounting rail.
Cut to size.
[] Install the top mounting rail with 3 or 4
type A screws (depending on the number
of holes in the top mounting rail) from the
outside of the case.
Top mounting _,
Bottom
mounting
[] Loosen the lower screw on each side of
the case and hook a security bracket on
each side. To allow for later adjustment,
do not tighten the screws until you install
the unit in the window.
Security
bracket
Security
bracket
To Next Page
