31-2000354 Rev.0 3

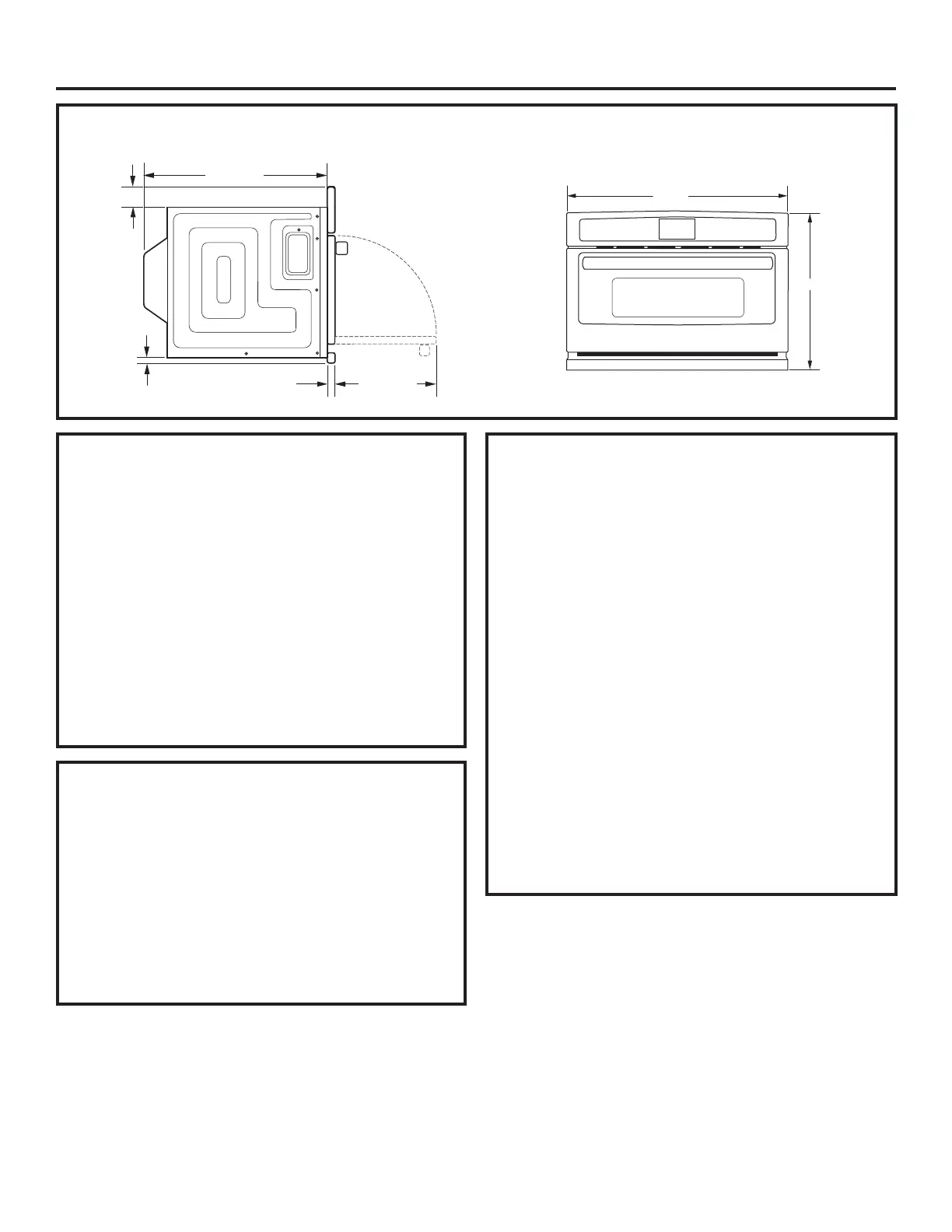

PRODUCT DIMENSIONS AND CLEARANCES
21-1/2Ǝ
1Ǝ
13 1/4Ǝ
2-1/4Ǝ
1-1/4Ǝ
NOTE: Appearance will vary by model.
20 1/8Ǝ
29-3/4Ǝ
Design Information
TOOLS AND PARTS REQUIRED
(NOT SUPPLIED)
• #2 Phillips screwdriver
• Hand-held drill
• High speed drill bit, 3/32Ǝ diameter
• 3/8Ǝ slot-head screwdriver
• Level
• Saw
• 3/8Ǝ min. plywood for floor (if required)
• Wood screws or other hardware for installing runner
or shelf to support oven (if required)
• Safety glasses or goggles
ADVANCE PLANNING
7KHVHRYHQVPD\EHLQVWDOOHGGLUHFWO\LQWRDƎ
wide oven cabinet with standard installation.
• Cutout height dimensions are different for
installations with an accessory storage drawer.
Make sure to use the correct cutout when preparing
the opening.
• Allow for clearance to adjacent corners, walls,
drawers, etc.
• Cabinets installed adjacent to wall ovens must have
an adhesion spec of at least 194ºF temperature
rating.
The oven must be securely installed in a cabinet that
is firmly attached to the house structure. Weight on
the oven door could cause the oven to tip and result
in injury. Never allow anyone to climb, sit, stand or
hang on the oven door.
If installing the drawer accessory, the drawer must
be assembled to the oven prior to installation into
the cabinet. See the Accessory Storage Drawer
Assembly Instructions.
FLUSH MOUNT INSTALLATION
This installation method allows for the unit face to be
inline with the cabinet face.
IMPORTANT: HIGH SKILL LEVEL IN CARPENTRY
IS REQUIRED. Non-standard cabinetry may be
required.
Flush installation of the oven will lead to the exposure
of the cabinet face frame edges.
Side cleats may be visible and should be a finished
surface.
To Next Page
