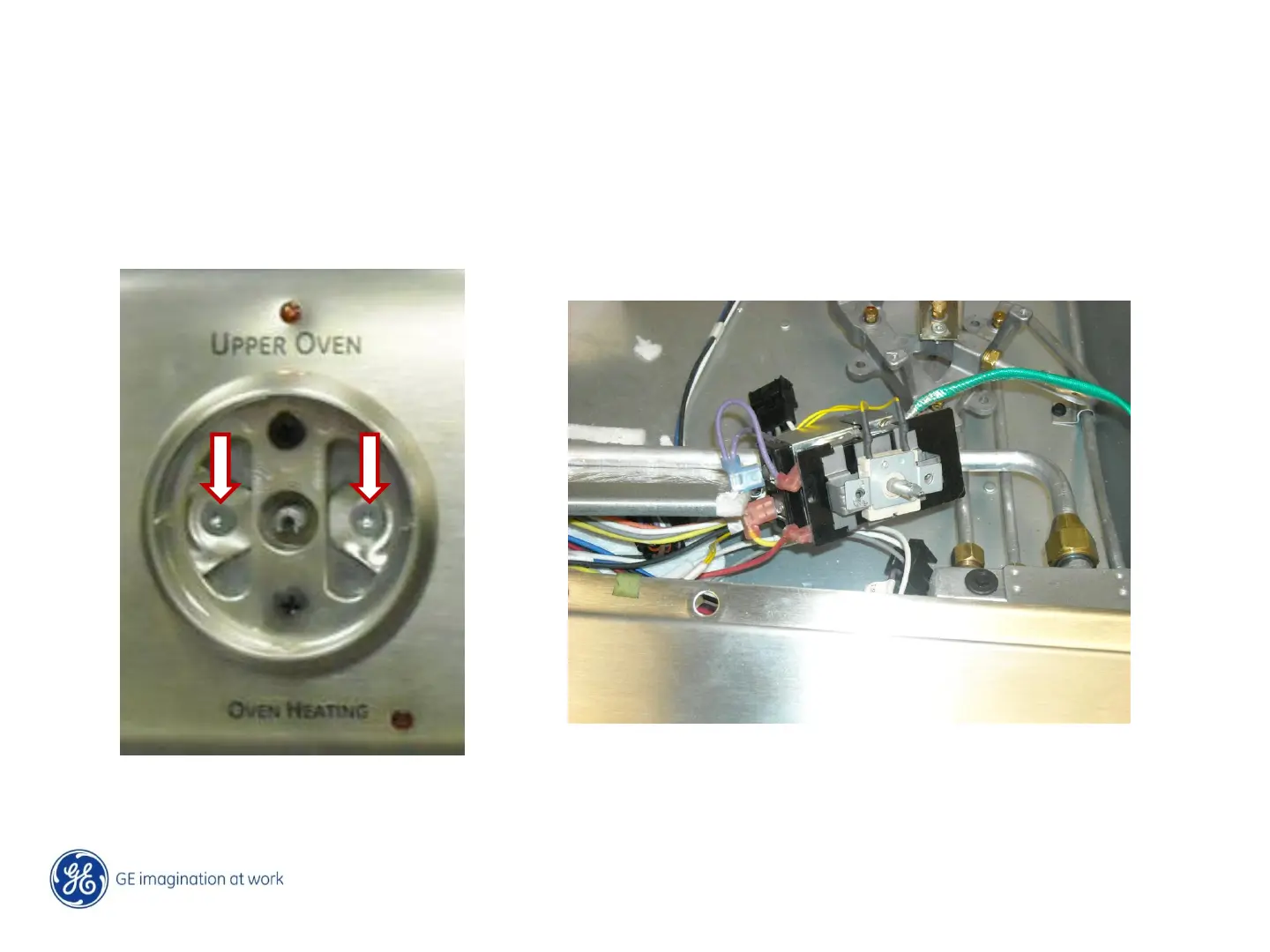

Upper Oven (DRT) Thermostat
To replace the upper oven thermostat requires removal of the cooktop. Once the cooktop
is removed – remove the two T-15 Torx screws holding the thermostat to the control
panel. The thermostat can then be pulled out from the control panel.
