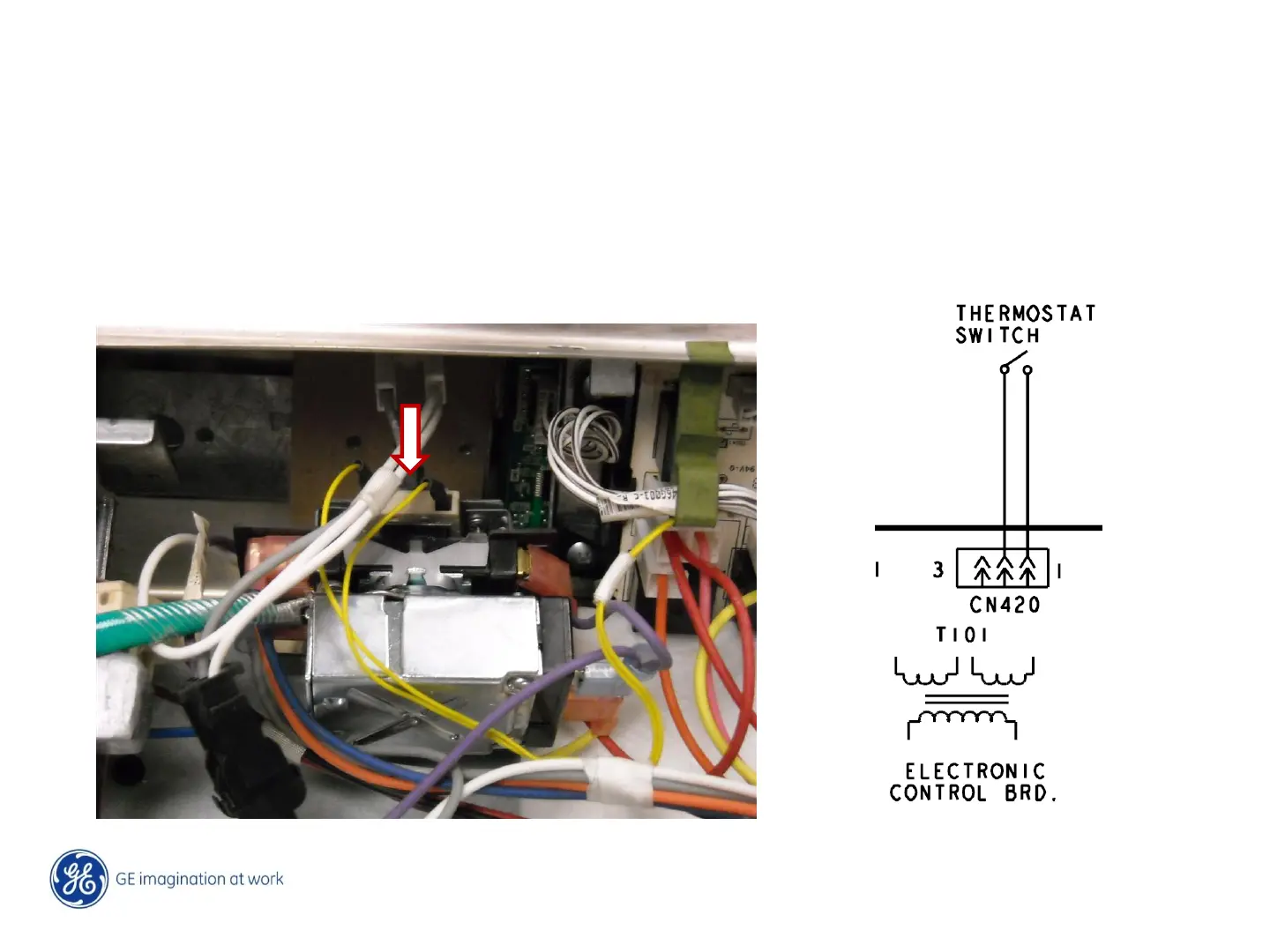

Upper Oven (DRT) Thermostat
The front of the thermostat contains a switch; this switch is an input to the ERC control.
This input provides (on or off) information to the ERC so the ERC can control the Upper
Oven Lockout Control. This also provides the ERC the ability to control the hydraulic
thermostat Self Clean timing of 5 hours. This switch closes when the thermostat is off
and opens when the thermostat is in any on position. If the switch does not open the
ERC will not allow self clean.
