Upper Oven Lockout Relay

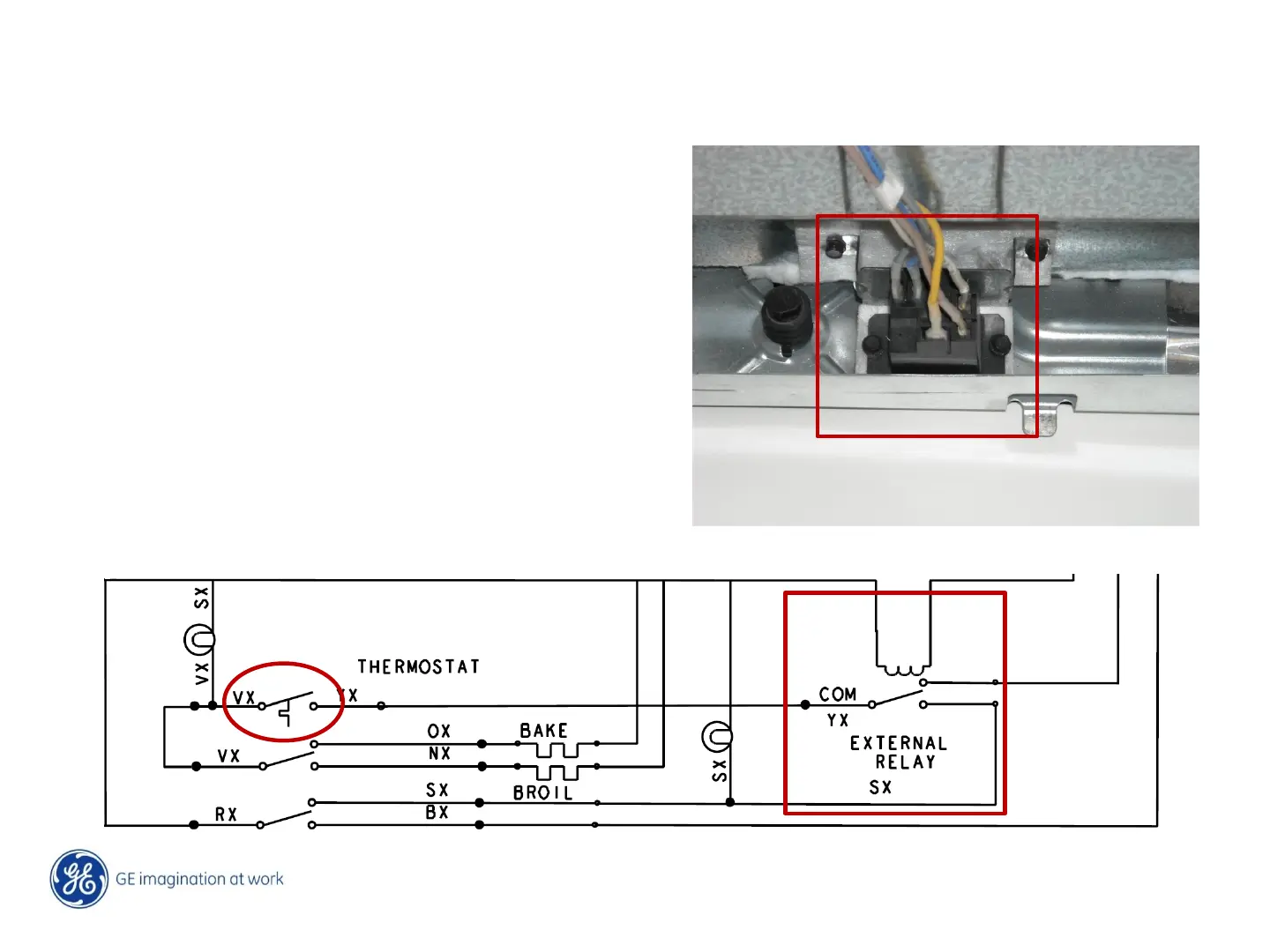

The upper oven uses a lock out relay that will
disable the upper oven from operating when
the lower oven is in self clean. When the lower
oven is placed into clean the relay is activated
by the ERC disabling the upper oven
thermostat control. The ERC also uses this
relay to terminate the upper oven self clean
cycle at a preset 5 hour cycle.
