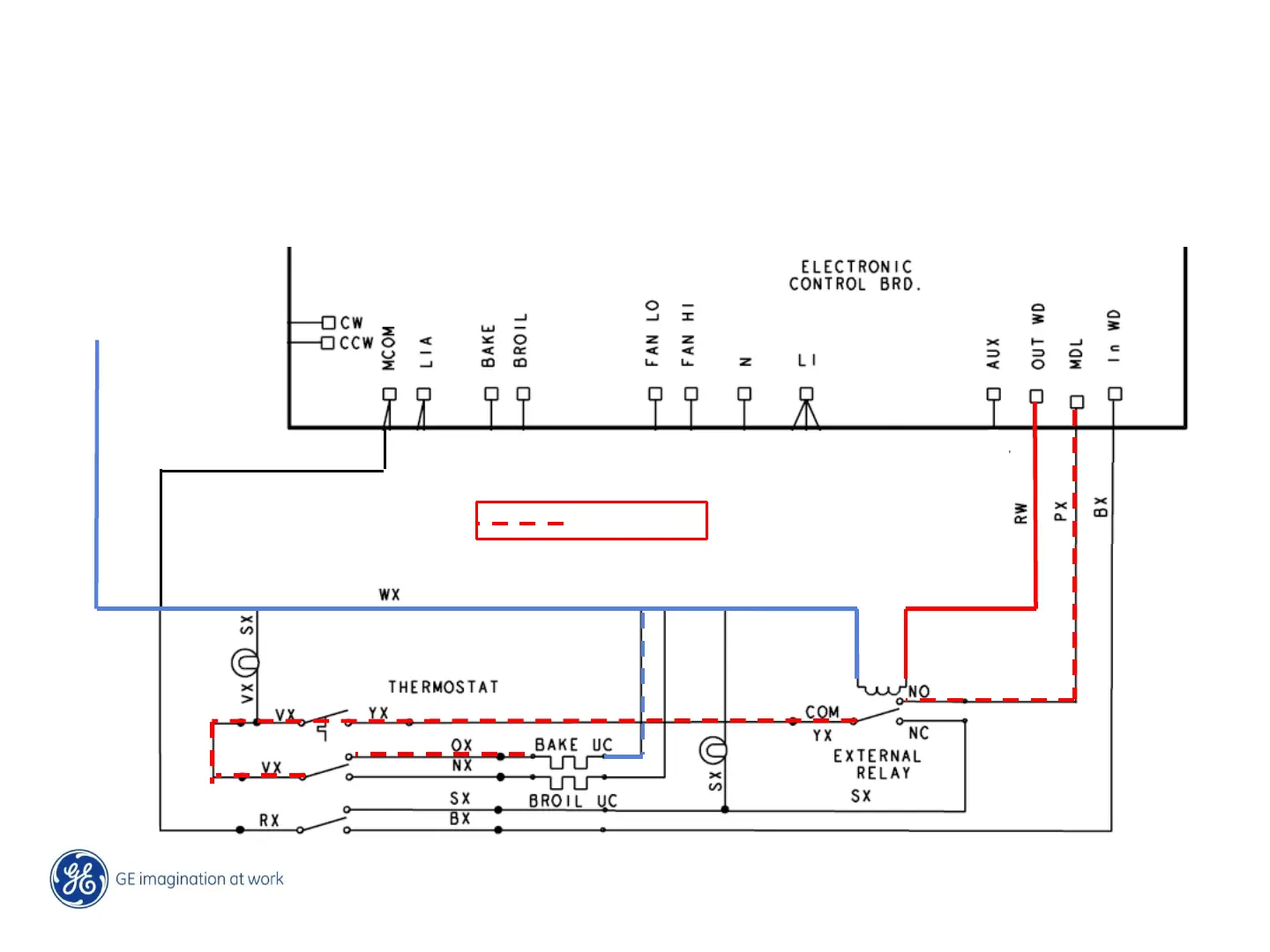

Upper Oven Lockout Relay
The ERC activates the lockout relay from the “OUT WD” terminal when in clean. When
powered the relay opens the cycling contact circuit of the thermostat (NC contact). In
the Upper Oven clean cycle the ERC powers the thermostat through the MDL terminal.
