Gas Lockout Valve

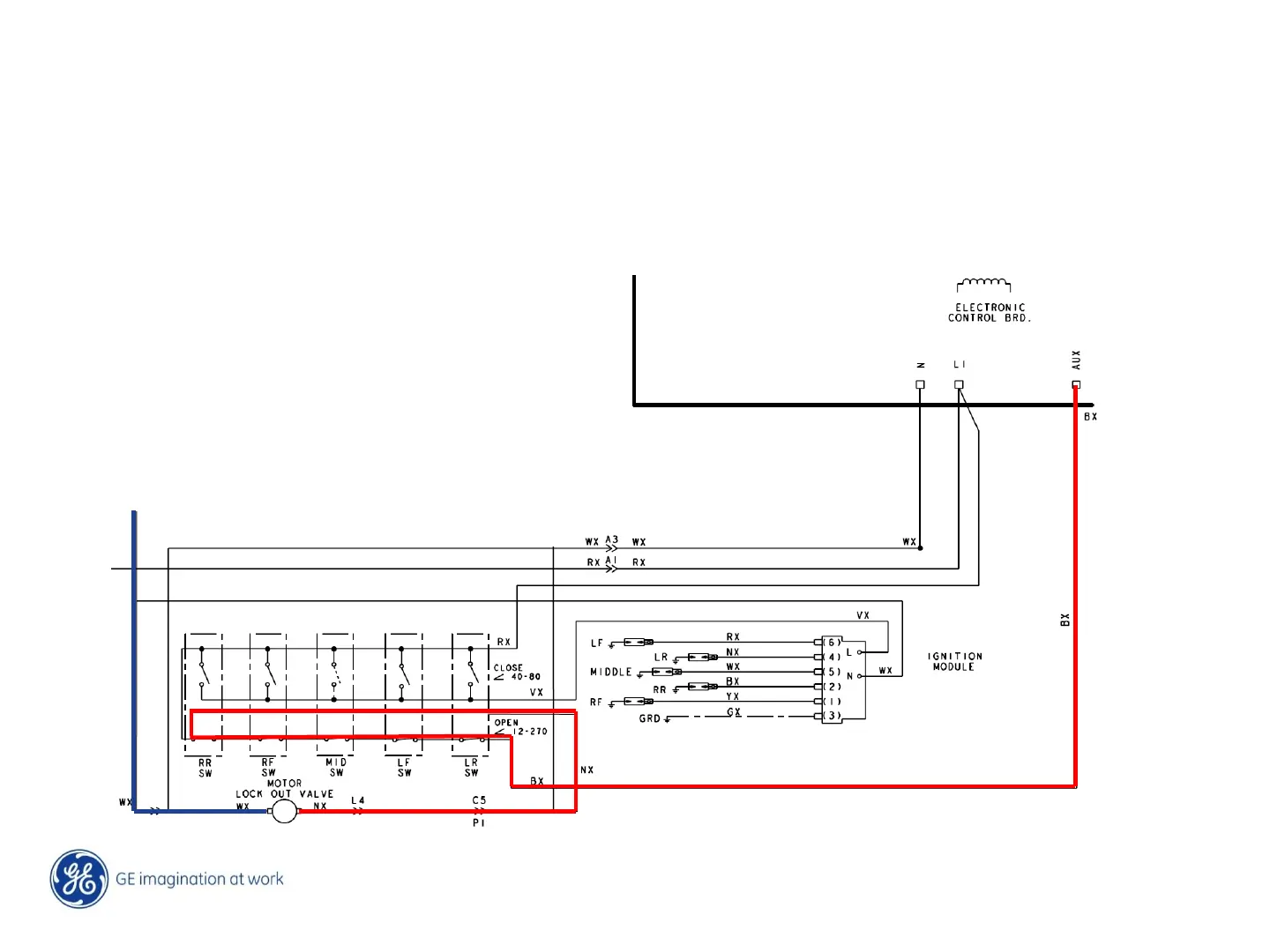

The gas lockout function is activated by the ERC when selected by the consumer or
when a Self Clean cycle is activated. The Lockout valve will NOT operate if a surface
burner is in the on position. Each burner switch must be in the open (OFF) position state
to complete the gas lockout function. The ERC AUX terminal sends power down to the
surface burner switches and when ALL are closed (burners off) the lock out motor runs.
