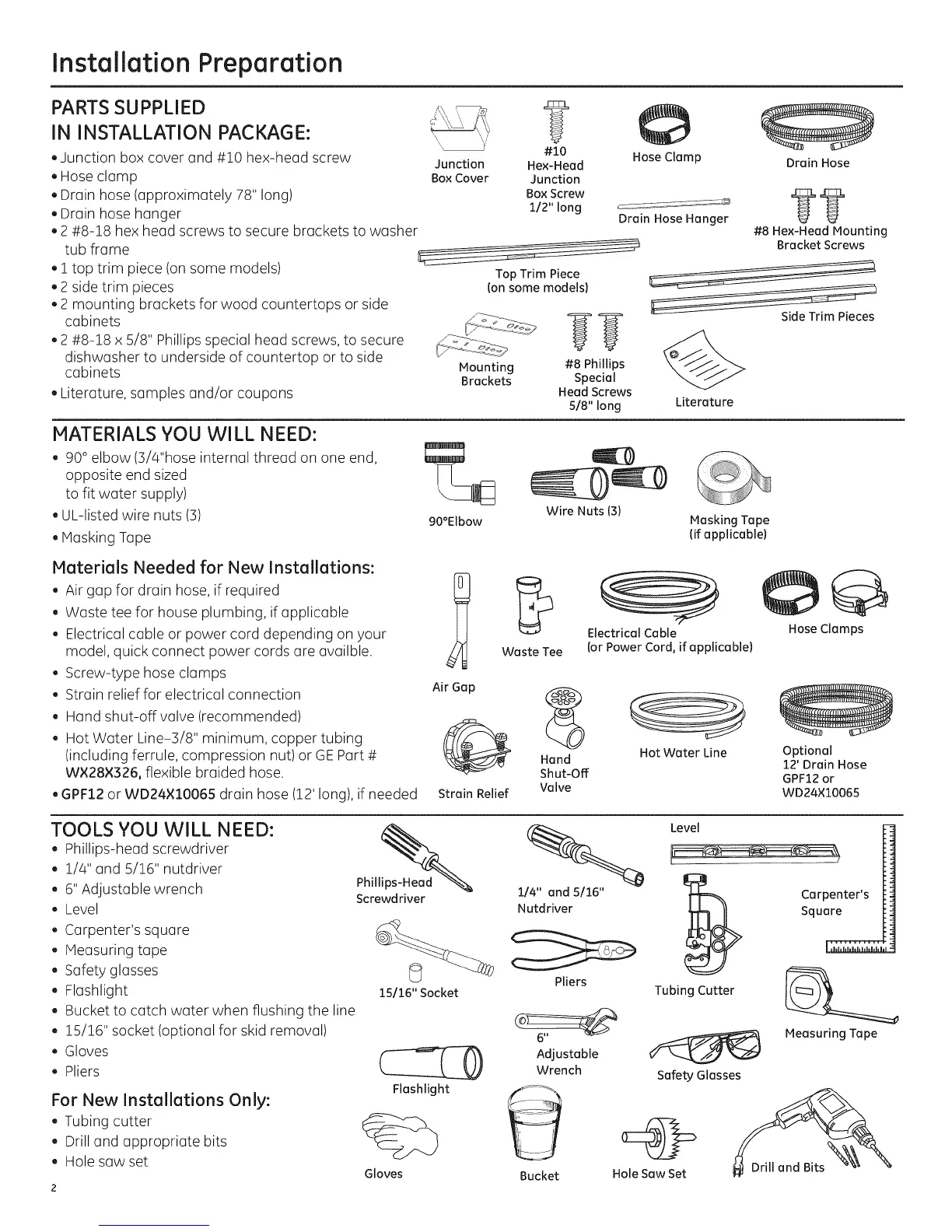

Installation Preparation
PARTS SUPPLIED
IN INSTALLATION PACKAGE:
, Junction box cover and #10 hex-head screw
, Hose clamp
, Drain hose (approximately 78" long)
Drain hose hanger
2 #8-18 hex head screws to secure brackets to washer
tub frame
,1 top trim piece (on some models)
,2 side trim pieces
,2 mounting brackets for wood countertops or side
cabinets
2 #8-18 x 5/8" Phillips special head screws, to secure
dishwasher to underside of countertop or to side
cabinets
Literature, samples and/or coupons
Junction
Box Cover
?
#10
Hex-Head
Junction
Box Screw
1/2" long
@
Hose Clamp
Drain Hose Hanger
Top Trim Piece
(on some models)
Mounting
Brackets
#8 Phillips
Special
Head Screws
5/8" long Literature
MATERIALS YOU WILL NEED:
. 90° elbow (3/#'hose internal thread on one end,
opposite end sized
to fit water supply)
, UL-listed wire nuts (3)
Masking Tape
%
90°Elbow
Wire Nuts (3)
Masking Tape
(if applicable)
Materials Needed for New Installations:
Air gap for drain hose, if required
Waste tee for house plumbing, if applicable
Electrical cable or power cord depending on your
model, quick connect power cords are availble.
Screw-type hose clamps
Strain relief for electrical connection
Hand shut-off valve (recommended)
Hot Water Line-3/8" minimum, copper tubing
(including ferrule, compression nut) or GEPart #
W×28×326, flexible braided hose.
GPF12or WD24×10065 drain hose (12'long), if needed
Waste T_ee
Air Gap
Strain Relief
Hand
Shut-Off
Valve
Electrical Cable
(or Power Cord, if applicable)
Hot Water Line
Drain Hose
??
#8 Hex-Head Mounting
Bracket Screws
Side Trim Pieces
Hose Clamps
Optional
12' Drain Hose
GPF12 or
WD24×10065
TOOLS YOU WILL NEED:
Phillips-head screwdriver
, 1/4" and 5/16" nutdriver
, 6" Adjustable wrench
, Level
, Carpenter's square
, Measuring tape
, Safety glasses
, Flashlight
, Bucket to catch water when flushing the line
, 15/16" socket (optional for skid removal)
, Gloves
, Pliers
For New Installations Only:
Tubing cutter
Drill and appropriate bits
Hole saw set
Phill2ad_
Screwdriver
15/16" Socket
Flashlight
Gloves
1/4" and 5/16"
Nutdriver
Pliers
Adjustable
Wrench
Bucket
Level
Carpenter's
Square
Tubing Cutter
Safety Glasses
Hole Saw Set
Measuring Tape
