GE ClearView AHTT06BC User Manual

12 49-5000634 Rev. 4
Installation Instructions
INSTALLATION INSTRUCTIONS
4. PREPARE THE AIR
CONDITIONER

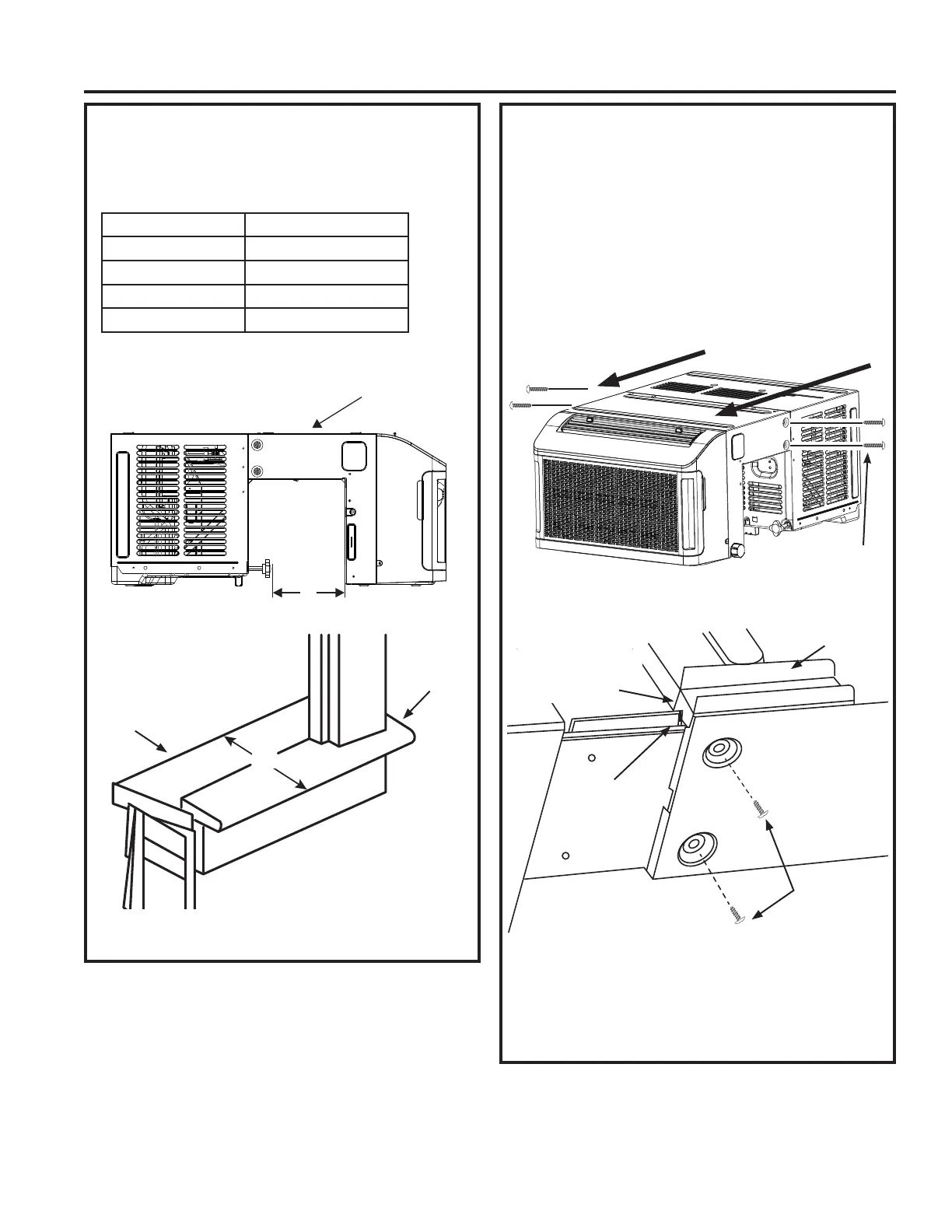

Adjusting the Chase-Way
• Measure window depth from interior to exterior.
8VHWKHWDEOHIURP6HFWLRQWRGHWHUPLQHWKH
corresponding chase-way position.
• Remove 4 locking screws that hold the chase-way in
place.
• Pull chase-way to position needed based on your
window depth.
• Place tab of side panel bracket into slot on
chase-way to hold position.
• Install the 4 screws (2 on each side) back into place
to lock in chase-way.
Locking
Screws (4)
PULL
PULL
3. WALL REQUIREMENTS
• Measure your window depth and use the table
below to determine the necessary chase-way
position.
Window Depth Chase-Way Position
Less than 7.75” Closed*
7.75” - 9.75” 1
9.75” - 11.75” 2
11.75” - 13.75” 3
* The unit comes in the closed position. If no
adjustment is necessary, skip to Section 5.
Chase-Way
Outside
Inside
Sill
Stool
Depth
Locking
Screws (4)
Side Panel
Bracket
Locator Slot
Place tab into slot
to hold desired
position.
Depth
