6. INSTALLING SIDE FILLER
PANELS
Attaching Side Panels

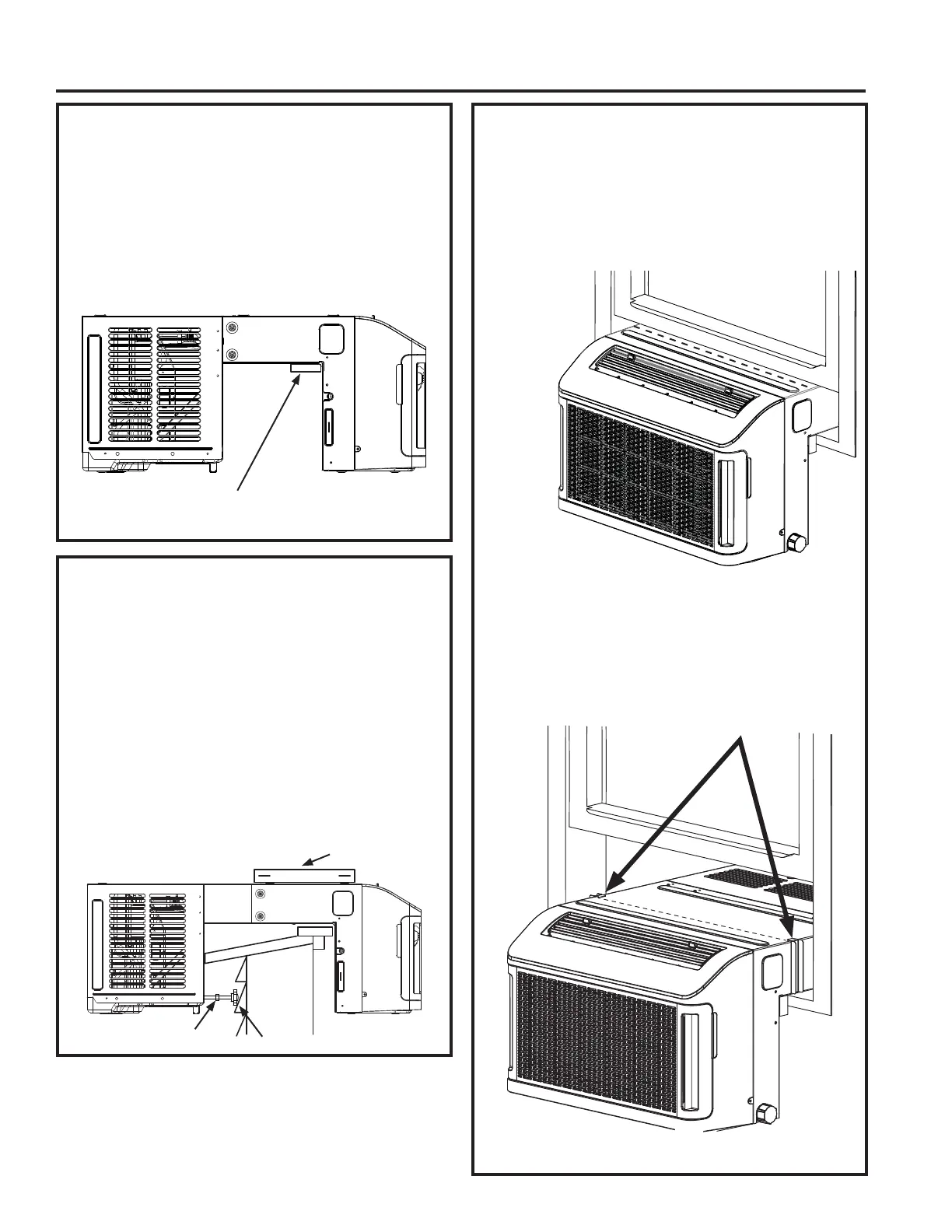

• Close the window and draw a line where the front
edge of the window meets the top of the unit. Raise
the window back up.
• Remove adhesive backing from the Side Panel
Brackets. Place them onto unit so that the front
edges are lined up with the drawn line as seen
below.
Installation Instructions
INSTALLATION INSTRUCTIONS
4. PREPARE THE AIR
CONDITIONER (Cont.)
• If you extend the chaseway to the 2nd, 3rd, or
4th position; take the two pieces of Chaseway
8QGHUVLGH)RDPDQGDSSO\WKHPXQGHUQHDWK
the chaseway in the open areas made by the
adjustment.
• Apply one piece on the left and one piece on the
right.
5. INSTALL UNIT IN WINDOW
• Lift the unit into and over the window. Center
the unit on the Foam Mounting Supports. *It is
recommended that 2 people lift the unit and place
into the window*.
Note: Be careful not to pinch fingers at the bottom of
the chase-way.
• Reach through the window opening and adjust the
Adjustable Supports until the unit is secure against
the outside wall. Using a level, check that the unit
is level front to back and side to side. Once level
and secure, reach back through the window and
tighten the Locking Nut on the Adjustable Supports
to secure everything in place.
Locking Nut
8VH/HYHO
Mark Here
Place Side
Panel Brackets
here
Adjuster Bolt
$SSO\&KDVHZD\8QGHUVLGH
Foam in this location
To Next Page
