3–7–2 OC Modification (continued)
d. Verify that the DC III power switch is in the OFF position.
e. Remove the 4 screws holding the DC III rear cover. Remove the rear cover.
f. Turn OFF the DC III breaker.

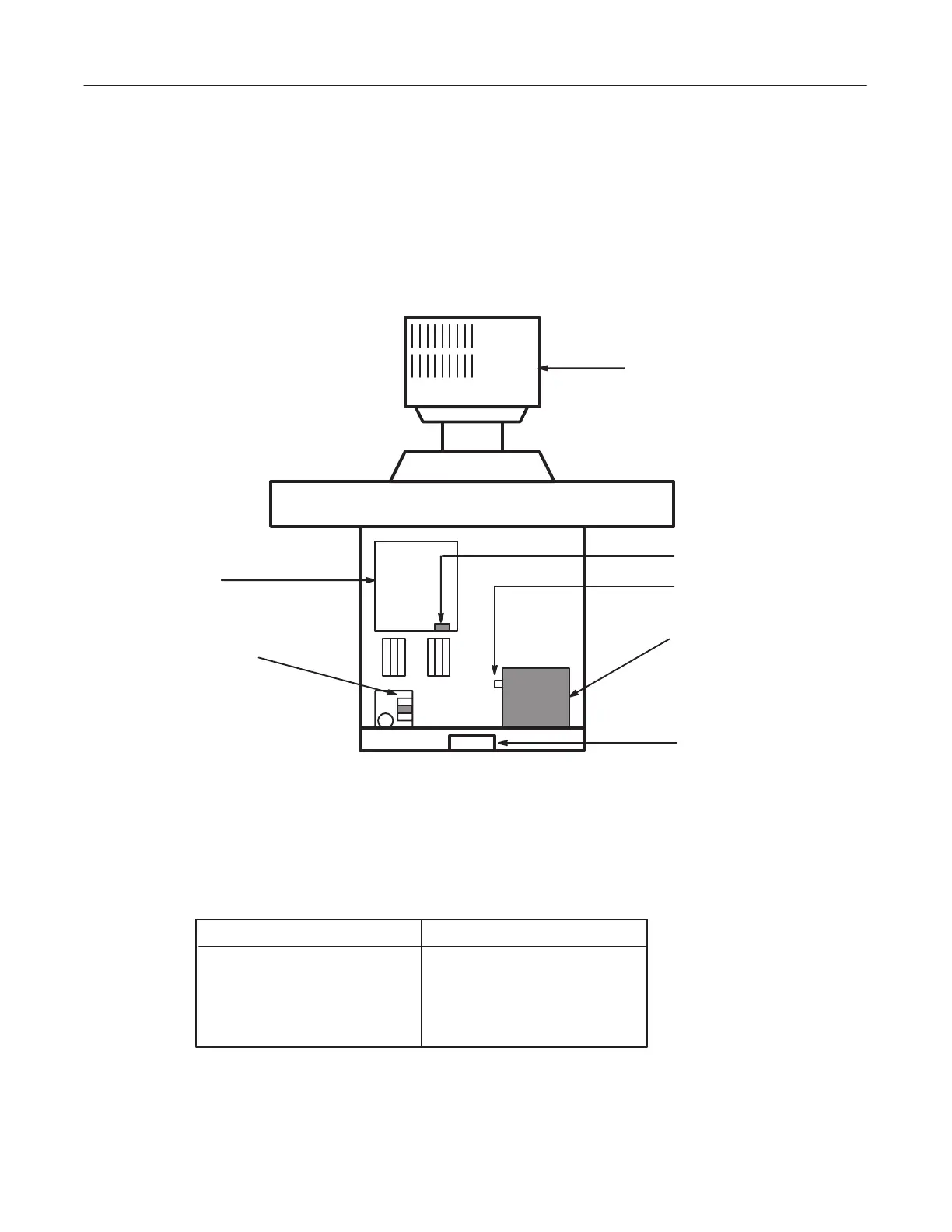

See Illustration 3–23.
VIDEO AMP
CONDUIT
BRACKET
DCCM2
ASSY
CRT
BREAKER
BNC CONNECT OR
CN 2
DC III REAR VIEW
ILLUSTRA TION 3–23
2. Board Preparation
BOARD NAME Slot #
DMP2 ASSY 24
OCCM4 ASSY 11
OVL2 ASSY 12
IFB2 ASSY 13
FCP2A ASSY 15
FCP1 ASSY 16
FCP3B ASSY 17
FMD ASSY 18
BOARD NAME Slot #
