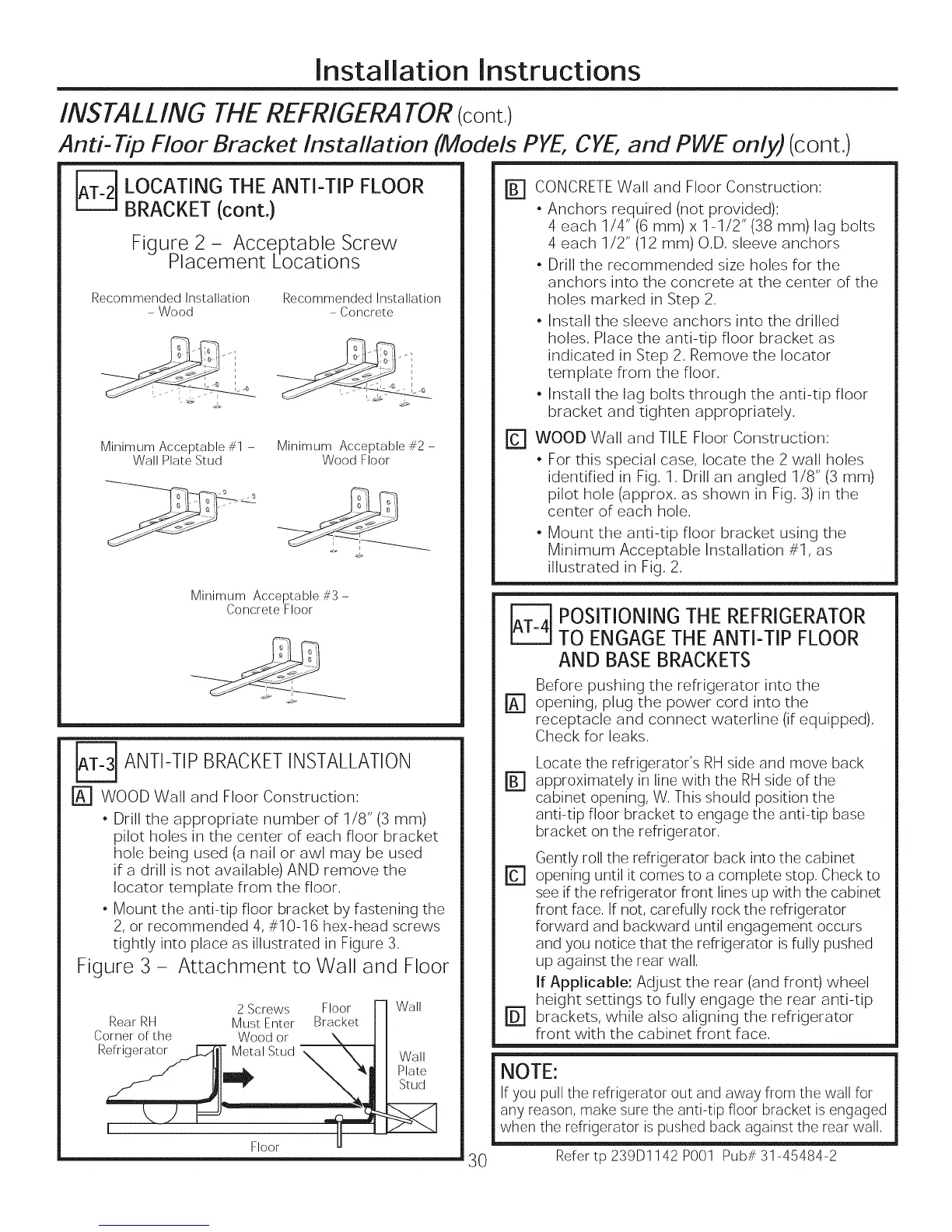

Installation Instructions
INSTALLING THE REFRIGERATOR (cont,)
And- Tip Floor Bracket Installation (Models PYE,CYE,and PINE only) (cont.)
I_ OCATING THE ANTI-TIP FLOOR
BRACKET (cont.)
Figure 2 - Acceptable Screw
Placement Locations
Recommended Installation
- Wood
Recommended Installation
- Concrete
Minimum Acceptable #1 -
Wall Plate Stud
Minimum Acceptable #2 -
Wood Floor
Minimum Acceptable #3 -
Concrete Floor
_ ANTI-TIPBRACKETINSTALLATION
rA1 WOOD Wall and Floor Construction:
• Drill the appropriate number of 1/8" (3 mm)
pilot holes in the center of each floor bracket
hole being used (a nail or awl may be used
if a drill is not available) AND remove the
Iocator template from the floor.
• Mount the anti-tip floor bracket by fastening the
2, or recommended 4, #10-16 hex-head screws
tightly into place as illustrated in Figure 3,
Figure 3 - Attachment to Wall and Floor
2 Screws Floor rl Wall
RearRH MustEnter Bracket II
Cornerof the Woodor _ I I
Refrigerator _J]]]_ MetalStud _ X I ] Wall
Floor
m
[]
CONCRETEWall and Floor Construction:
• Anchors required (not provided):
4 each 1/4" (6 mm) x 1-1/2" (38 mm)lag bolts
4 each 1/2" (12 mm) O.D. sleeve anchors
• Drill the recommended size holes for the
anchors into the concrete at the center of the
holes marked in Step 2.
• Install the sleeve anchors into the drilled
holes. Place the anti-tip floor bracket as
indicated in Step 2. Remove the Iocator
template from the floor.
• Install the lag bolts through the anti-tip floor
bracket and tighten appropriately.
WOOD Wall and TILE Floor Construction:
• For this special case, locate the 2 wall holes
identified in Fig. 1. Drill an angled 1/8" (3 mm)
pilot hole (approx. as shown in Fig. 3)in the
center of each hole.
• Mount the anti-tip floor bracket using the
Minimum Acceptable Installation #1, as
illustrated in Fig. 2.
3O
_] OSITIONING THE REFRIGERATOR
TO ENGAGETHE ANTI-TIP FLOOR
AND BASEBRACKETS
%
Before pushing the refrigerator into the
opening, plug the power cord into the
receptacle and connect waterline (if equipped).
Check for leaks.
Locate the refrigerator's RH side and move back
approximately in line with the RH side of the
cabinet opening, W, This should position the
anti-tip floor bracket to engage the anti-tip base
bracket on the refrigerator,
Gently roll the refrigerator back into the cabinet
[] opening until it comes to a complete stop, Check to
see if the refrigerator front lines up with the cabinet
front face, If not, carefully rock the refrigerator
forward and backward until engagement occurs
and you notice that the refrigerator is fully pushed
up against the rear wall,
If Applicable: Adjust the rear (and front) wheel
height settings to fully engage the rear anti-tip
rD1 brackets, while also aligning the refrigerator
front with the cabinet front face.
NOTE:
If you pull the refrigerator out and away from the wall for
any reason, make sure the anti-tip floor bracket is engaged
when the refrigerator is pushed back against the rear wall,
Refer tp 239D1142 P001 Pub# 31-45484-2
