Installation Instructions
13

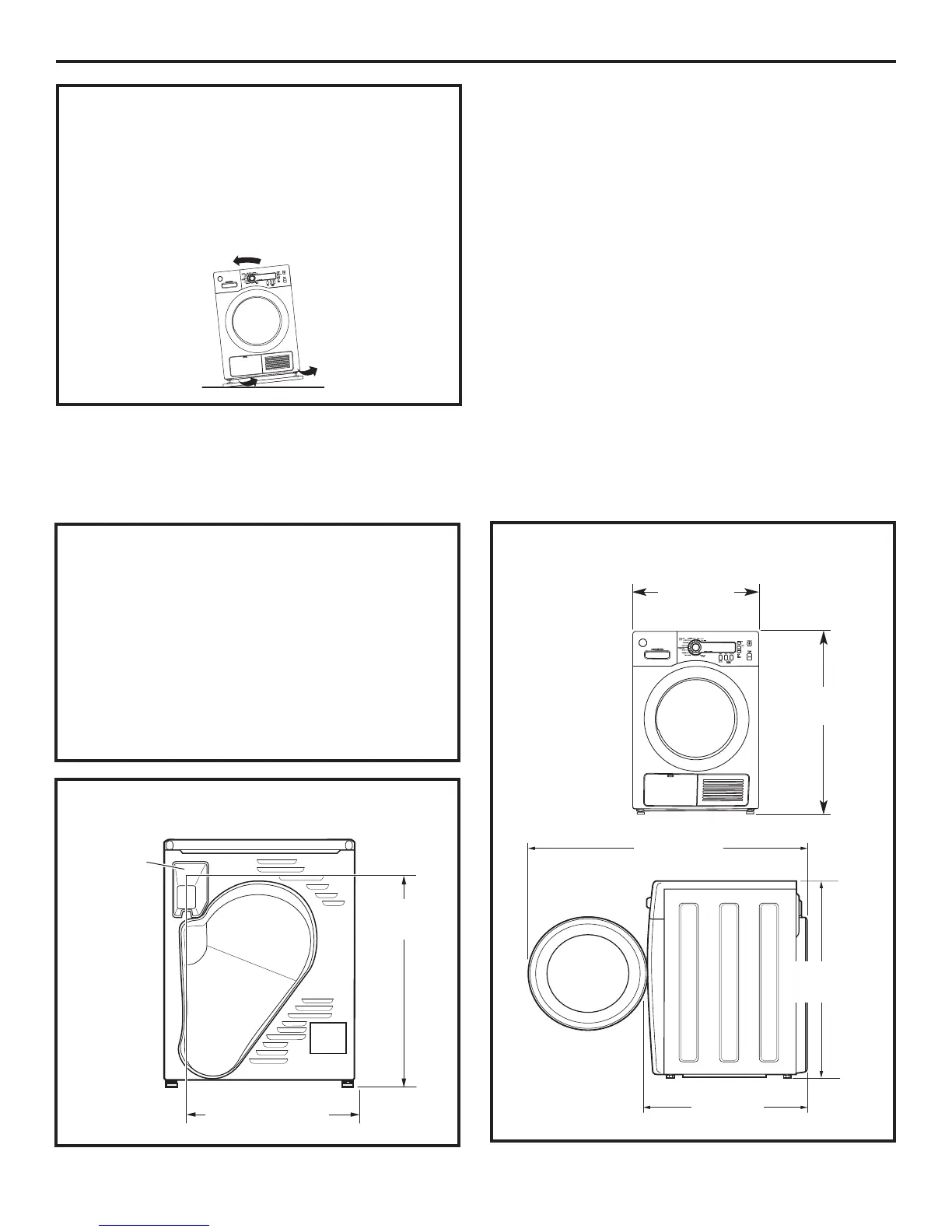

UNPACKING YOUR DRYER
Tilt the dryer sideways and remove the foam
shipping pads by pulling at the sides and breaking
them away from the dryer legs. Be sure to remove
all of the foam pieces around the legs.
Remove the bag containing the literature.
DRYER DIMENSIONS
25.5”
(647 mm)
33.4”
(847.5 mm)
Side View
Front View
LOCATION OF YOUR DRYER
42.75”
(1086 mm)
ELECTRICAL CONNECTION
Electrical
Connection
27.65”
(702 mm)
20.75” (527 mm)
Back View
23.5”
(598 mm)
33.4”
(848 mm)
MINIMUM CLEARANCE OTHER THAN
ALCOVE OR CLOSET INSTALLATION
Minimum clearance to combustible surfaces and
for air openings are:
• 0 inch clearance both sides
• 3 inches front and rear
Consideration must be given to provide adequate
clearance for proper operation and service.
