B1
Installation

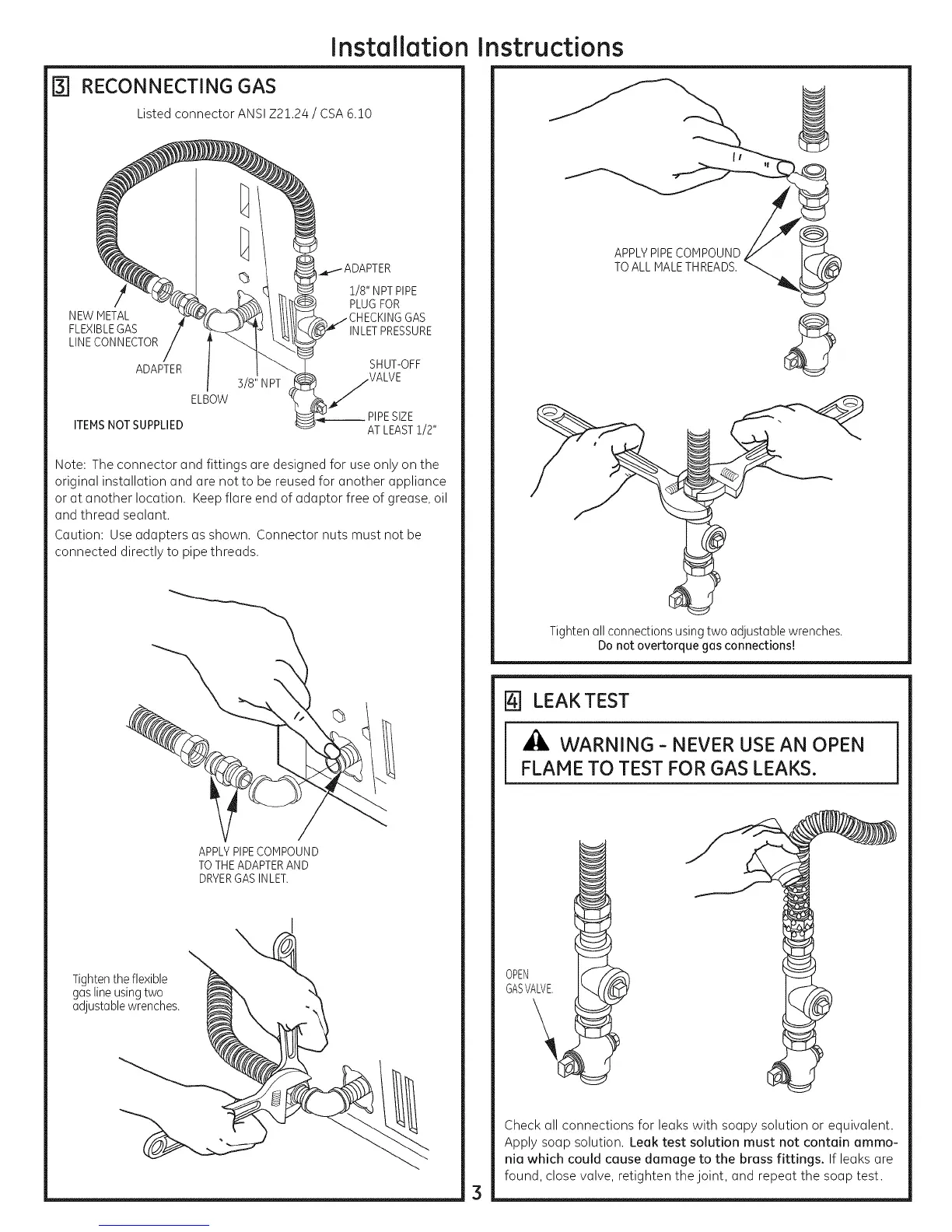

RECONNECTING GAS
Listed connector ANSI Z21.24 / CSA 6.10
1/8" NPT PIPE
PLUGFOR
NEW METAL
FLEXIBLEGAS INLETPRESSURE
LINECONNECTOR
ELBOW
ADAPTER
3/8" NPT
SHUT-OFF
ITEMSNOTSUPPLIED __ PIPESIZE
ATLEAST1/2"
Note: The connector and fittings are designed for use only on the
original installation and are notto be reused for another appliance
or at another location. Keep flare end of adaptor free of grease, oil
and thread sealant.
Caution: Use adapters as shown. Connector nuts must not be
connected directly to pipe threads.
APPLYPIPECOMPOUND
TOTHEADAPTERAND
DRYERGASINLET.
Tighten the flexible
gas line using two
adjustable wrenches.
instructions
APPLY PIPECOMPOUND
TO ALL MALETHREADS.
Tighten all connections using two adjustable wrenches.
Do not overtorque gas connections!
[] LEAK TEST
WARNING - NEVER USE AN OPEN
FLAME TO TEST FOR GAS LEAKS.
OPEN
GASVALVE.
Check all connections for leaks with soapy solution or equivalent.
Apply soap solution. Leak test solution must not contain ammo-
nia which could cause damage to the brass fittings. If leaks are
found, close valve, retighten the joint, and repeat the soap test.
