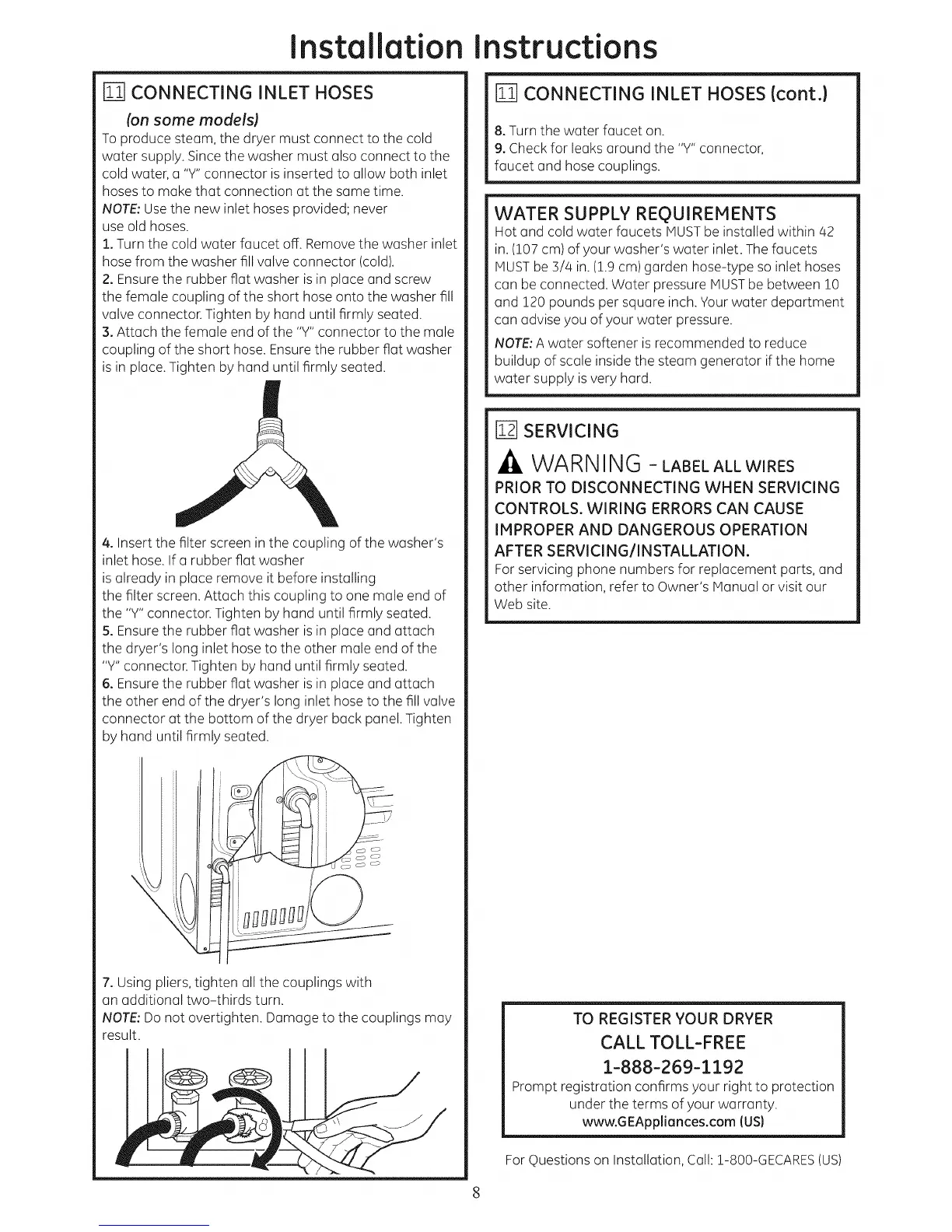

Installation
[] CONNECTING INLET HOSES
(on some models)
To produce steam, the dryer must connect to the cold
water supply. Since the washer must also connect to the
cold water, a ",7"connector is inserted to allow both inlet
hoses to make that connection at the same time.
NOTE:Use the new inlet hoses provided; never
use old hoses.
1.Turn the cold water faucet off. Removethe washer inlet
hose from the washer fill valve connector (cold).
2. Ensurethe rubber fiat washer is in place and screw
the female coupling of the short hose onto the washer fill
valve connector. Tighten by hand until firmly seated.
3. Attach the female end of the '"7" connector to the male
coupling of the short hose. Ensure the rubber fiat washer
is in place. Tighten by hand until firmly seated.
4. Insert the filter screen in the coupling of the washer's
inlet hose. If a rubber fiat washer
isalready in place remove it before installing
the filter screen. Attach this coupling to one male end of
the "`7"connector. Tighten by hand until firmly seated.
5. Ensure the rubber fiat washer is in place and attach
the dryer's long inlet hose to the other mule end of the
"`7"connector. Tighten by hand until firmly seated.
6. Ensure the rubber fiat washer is in place and attach
the other end of the dryer's long inlet hose to the fill valve
connector at the bottom of the dryer back panel. Tighten
by hand until firmly seated.
7. Using pliers, tighten all the couplings with
an additional two-thirds turn.
NOTE:Do not overtighten. Damage to the couplings may
result.
Instructions
[] CONNECTING INLET HOSES (cont.)
8. Turn the water faucet on.
9. Check for leaks around the "`7"connector,
faucet and hose couplings.
WATER SUPPLY REQUIREMENTS
Hot and cold water faucets MUSTbe installed within/42
in, (107 cm) of your washer's water inlet. The faucets
MUSTbe 3//4 in. (1.9cm) garden hose-type so inlet hoses
can be connected. Water pressure IvlUSTbe between 10
and 120 pounds per square inch. ,Tourwater department
can advise you of your water pressure.
NOTE:A water softener is recommended to reduce
buildup of scale inside the steam generator if the home
water supply is very hard.
[] SERVICING
WARNING - LABELALLWIRES
PRIOR TO DISCONNECTING WHEN SERVICING
CONTROLS. WIRING ERRORS CAN CAUSE
IMPROPER AND DANGEROUS OPERATION
AFTER SERVICING/INSTALLATION.
Forservicing phone numbers for replacement parts, and
other information, refer to Owner's Manual or visit our
Web site.
TO REGISTER YOUR DRYER
CALL TOLL-FREE
1-888-269-1192
Prompt registration confirms your right to protection
under the terms of your warranty.
www.GEAppliances.com (US)
For Questions on Installation, Call: !-800-GECARES (US)
