Planning Information
3

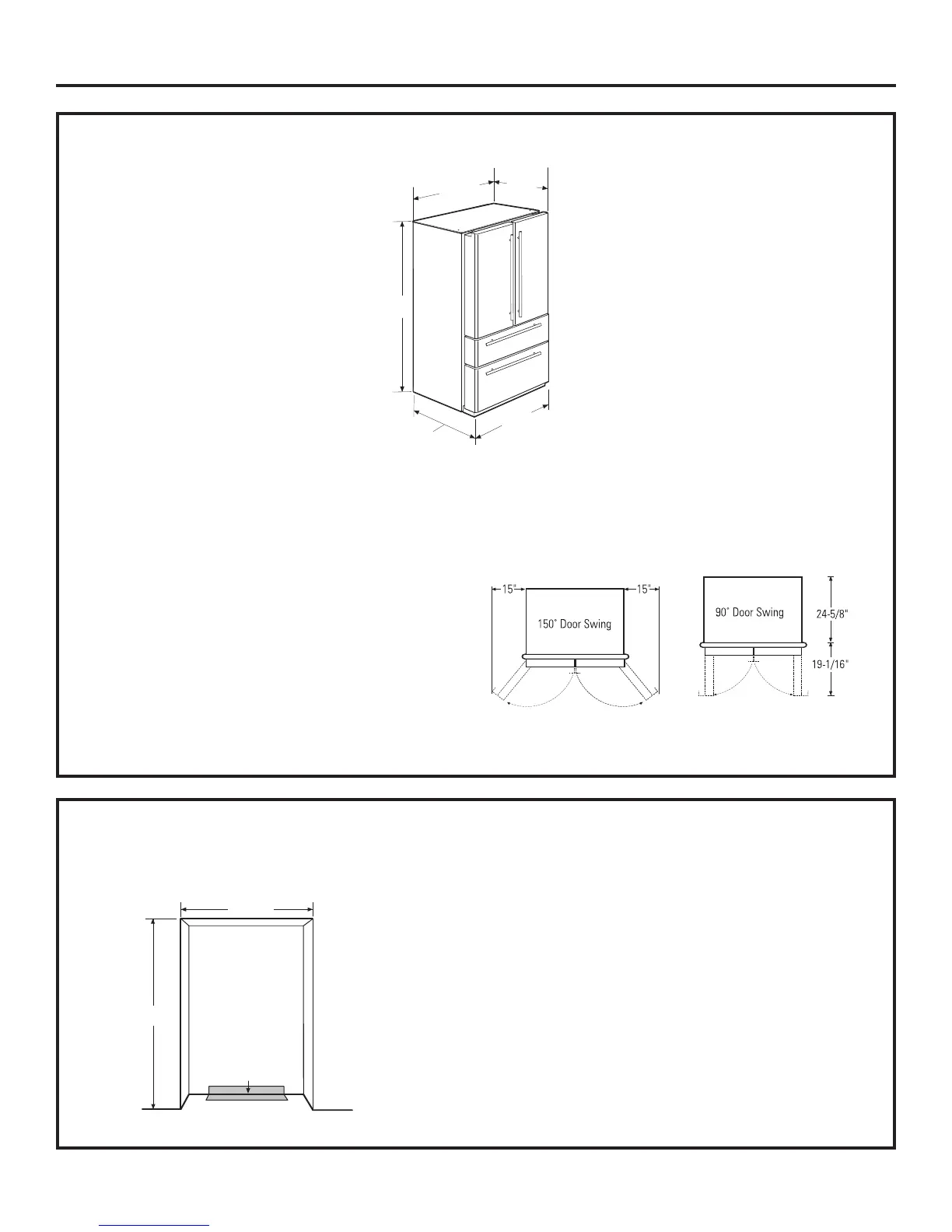

PRODUCT DIMENSIONS AND CLEARANCES
These Monogram free-standing refrigerators require the
following clearances for proper air circulation, plumbing
and electrical connections.
Air Circulation Clearances:
• 1/8" on each side
• 1/2" at the back side
Installation in a corner:
• Allow 4" clearance on each side to an adjacent wall for a
90° opening and access to drawers.
• Allow 15" clearance to wall on each side for removal
of drawers.
69-5/8"
35-7/8"
Depth Including Handles
29-1/2" - Tubular Handles
30-1/4" - Professional Handles
27-1/2"
Depth
3
5-7/8"
C
ase Width
THE INSTALLATION SPACE
The opening width must be at least 36".
W
ater And Electrical Locations
The opening must be prepared with the electrical and water
supply located as shown.
Additional Specifications
• A 115 v
olt 60Hz., 15 or 20 amp pow
er supply is r
equir
ed.
An individual properly grounded branch circuit or circuit
breaker is recommended. Install a properly grounded
3-pr
ong electrical r
eceptacle r
ecessed into the back wall.
NOTE: GFI (ground fault interrupter) is not recommended.
• The cold water line can enter the opening through the floor
or through an adjacent cabinet, as close to the back
wall as possible. The water line should be GE
Smar
tConnect
™
R
efrigerator Tubing or 1/4" O.D. copper
tubing betw
een the cold w
ater line and w
ater connection
location at the rear of the refrigerator. Installation of an
easily accessible shut off valve in the water line is
r
ecommended.
70" min.
36" min.
Electrical
Area
Wall View
Water Supply
To Next Page
