Installation Instructions
BOTTOM DRAWER
REMOVE THE UPPER BASKET

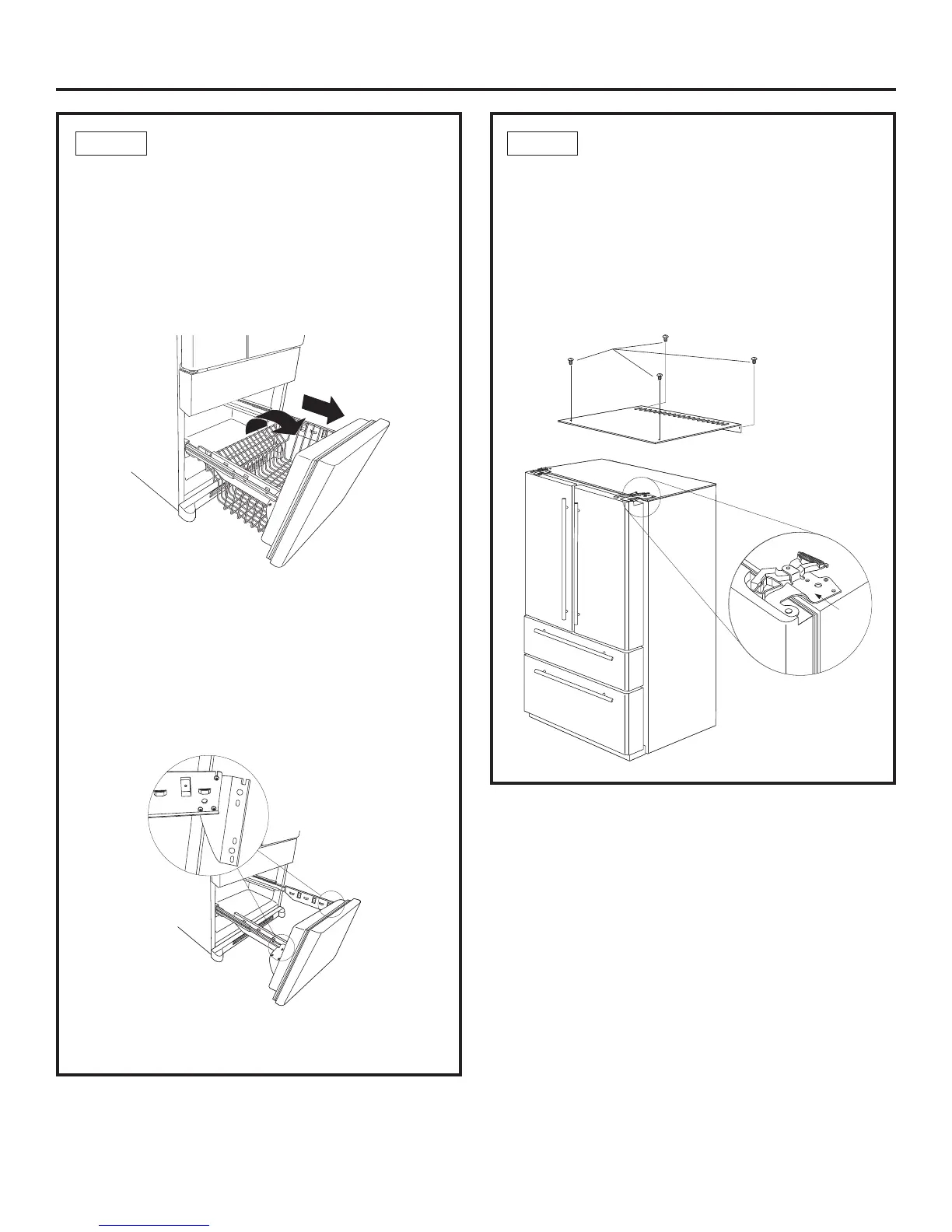

A. Open the bottom freezer drawer until it stops.
B. Pull the basket out to the stop location.
C. Lift the basket up at the front to release it from
the slides.
D. Lift the back up and out of the slide.
REMOVE THE LOWER BASKET
A.
Open the bottom freezer drawer until it stops.
B. Lift the rear of the basket up so the two rear alignment
tabs are pulled out of the slide bracket.
C. Rotate the basket up and out of the drawer.
REMOVE THE DRAWER FRONT FROM THE SLIDES
A. Remove the 10 hex head screws from the door
and remove the door.
B. Set the drawer front on a non-scratching surface.
C. Push the rail assemblies back into the cabinet.
STEP 5 REMOVE THE FRESH
FOOD DOORS
T
he top cap must be removed to access hinges.
It is best to remove one door at a time.
A. Remove 2 screws on top and 2 screws at the back
of the top cap. Lift off top cap.
B. Remove 2 screws holding top hinge to the case.
Carefully lift off left and right side doors.
8
STEP 4 REMOVE THE FREEZER
DRAWERS (CONT.)
